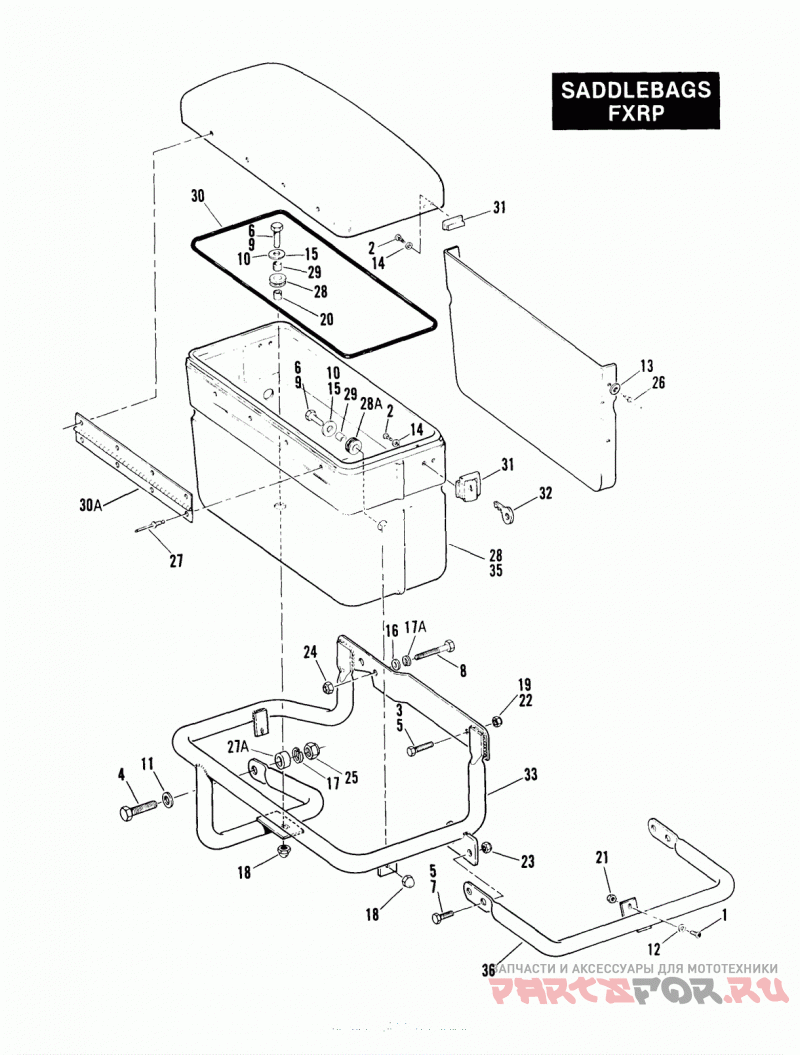

SADDLEBAGS - FXRP

Harley Davidson FXRP EFLH Police Low Rider (1987)

Harley Davidson
#oem кодцена
1
2607
SCREW, 1/4-20 X 3/4 mach pan head (grade 2) | Late 84 to * - FXRP
2
2803W
SCREW | 85 to * - FXRP
3
2887WA
SCREW, 5/16-18 X 1-3/4 hex cap (grade 5) | 85 to * - FXRP
4
3946
BOLT | 85 to * - FXRP
5
3960W
BOLT, 5/16-24 X 1 hex. hd.(Grade 5 steel) | Late 84 - FXRP
6
3991
BOLT, 5/16-18 X 7/8 hex. hd.(Grade 5 steel) | 85 to * - FXRP
7
4017
BOLT, 5/16-18 X 1 hex. hd.(Grade 5 steel) | 85 to * - FXRP
8
4412
BOLT | Late 84 to * - FXRP
9
4716W
BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel) | Late 84 - FXRP
10
6229W
WASHER, 21/64 X 1 X 1/16 | 85 to * - FXRP
11
6334
WASHER, 7/16 X 29/32 X 1/16 | 85 to * - FXRP
12
6410
WASHER, 1/4 X 9/16 X 1/16 (nylon) | Late 84 to * - FXRP
13
6716
WASHER, No. 10 X 1/2 X 3/64 | 85 to * - FXRP
14
6717
WASHER, No. 6 X 3/8 X 3/64 | 85 to * - FXRP
15
6733
WASHER | Late 84 - FXRP
16
6774
WASHER | Late 84 to * - FXRP
17
7039
LOCKWASHER, 7/16 | 85 to * - FXRP
17A
7130W
LOCKWASHER, 3/8 internal tooth | 88 to * - FXRP
18
7507
ACORN NUT, 5/16-18 X 11/16 X 1/2 hex. (Grade 2 steel)(chrome) | 85 to * - FXRP
19
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex. | 85 to * - FXRP
20
7565
WELL NUT | Late 84 - FXRP
21
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex. | Late 84 to * - FXRP
22
7710W
LOCKNUT, 5/16-18 X 1/4 X 1/2 hex (Grade 2 steel) | Late 84 - FXRP
23
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex. | Late 84 - FXRP
7739
LOCKNUT, 5/16-18 X 11/32 X 1/2 hex. | 85 to * - FXRP
24
7776W
LOCKNUT | Late 84 to * - FXRP
25
7837W
NUT | 85 to * - FXRP
26
8498
RIVET | 85 to * - FXRP
27
8692
RIVET | 85 to * - FXRP
27A
90480-85
SPACER | 85 to * - FXRP
28
90986-85B
SADDLEBAG ASSEMBLY left (black) | 85 to * - FXRP
28A
90483-85
GROMMET, saddlebag mounting | 85 to * - FXRP
29
90484-85
SPACER, saddlebag mounting | 85 to * - FXRP
30
90528-84
GASKET,cover | 85 to * - FXRP
30A
90529-84
HINGE, saddlebag | Late 84 to * - FXRP
31
90658-84A
LATCH 2 piece (no lock) | Late 84 to * - FXRP
32
90659-83
KEY (indicate serial no.) | Late 84 to * - FXRP
33
90724-87
SADDLEBAG CARRIER, right - tour exhaust | 86 to * - FXRP
90725-87
SADDLEBAG CARRIER, left - tour exhaust | 86 to * - FXRP
90782-84
SADDLEBAG CARRIER, right | Late 84 - FXRP
90782-85
SADDLEBAG CARRIER, right | 85 to * - FXRP
90783-84
SADDLEBAG CARRIER, left | Late 84 - FXRP
90783-85
SADDLEBAG CARRIER, left | 85 to * - FXRP
35
90985-84
SADDLEBAG ASSEMBLY, right - (black) N/A | Late 84 - FXRP
90986-84
SADDLEBAG ASSEMBLY, left - (black) N/A | Late 84 - FXRP
90986-85B
SADDLEBAG ASSEMBLY left (black) | 85 to * - FXRP
90991-85
SADDLEBAG ASSEMBLY - left (white) | 85 to * - FXRP
91003-84B
SADDLEBAG ASSEMBLY right (black) | 85 to * - FXRP
91012-85
SADDLEBAG ASSEMBLY - right (white) | 85 to * - FXRP
36
90987-84A
CROSS BRACE, saddlebag support N/A | Late 84 - FXRP
90987-85
CROSS BRACE, saddlebag support | 85 to * - FXRP
