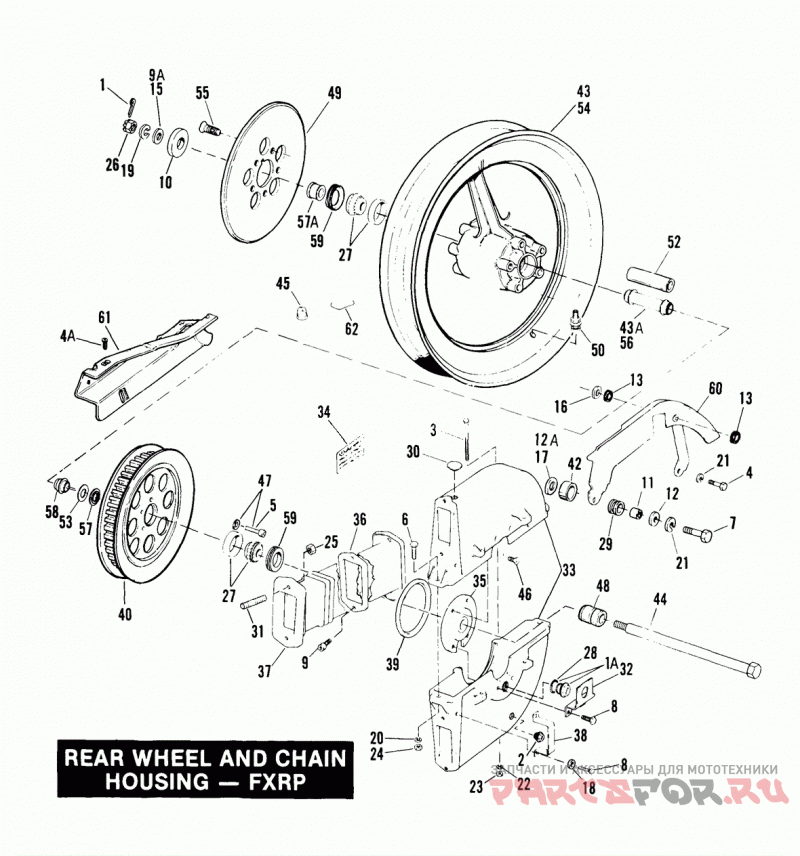

REAR WHEEL AND CHAIN HOUSING - FXRP

Harley Davidson FXRP EFLH Police Low Rider (1987)

Harley Davidson
#oem кодцена
1
511
Деталь COTTER PIN | 89 to * - FXRP
1A
708A
Деталь PLUG, with O-ring | Late 84 - FXRP
2
717
Деталь PLUG, with O-ring | Late 84 - FXRP
3
2002
Деталь SCREW | Late 84 - FXRP
4
2698A
Деталь SCREW, 5/16-18 X 9/16 socketfillis. hd. | 85 to * - FXRP
4A
2739
Деталь SCREW, 1/4-28 X 1/2 Phillips truss hd. (w/lockwasher)(chrome) | 85 to * - FXRP
5
3542A
Деталь SCREW, HEX SOCKET HEAD CAP | Late 84 - FXRP
6
3825
Деталь BOLT | Late 84 - FXRP
7
3960W
Деталь BOLT, 5/16-24 X 1 hex. hd.(Grade 5 steel) | 87 to * - FXRP
4014W
Деталь BOLT, 5/16-24 X 1-1/4 hex. hd.(Grade 5 steel) | 85 to 86 - FXRP
9
4069A
Деталь SCREW, 1/4-20 X 3/4 knurled socket hd. | Late 84 - FXRP
9A
5756
Деталь WASHER, 21/32 X 1-5/16 X 5/8 | 89 to * - FXRP
10
5738
Деталь SPACER | Late 84 - FXRP
11
5978W
Деталь SPACER, 11/32 long | 85 & 86 - FXRP
12
6107B
Деталь WASHER | 85 to * - FXRP
12A
6333
Деталь WASHER, 3/8 X 7/8 X 5/64 | 87 to * - FXRP
13
6398
Деталь WASHER | 85 to * - FXRP
15
6655
Деталь WASHER, 5/8 X 1-1/2 X 3/32 | Late 84 to 88 - FXRP
16
6701
Деталь WASHER, 3/8 X 13/16 X 1/16 | 85 to * - FXRP
17
6702
Деталь WASHER, 5/16 X 11/16 X 1/16 | 85 & 86 - FXRP
18
6703
Деталь WASHER, 1/4 X 5/8 X 1 /16 | Late 84 - FXRP
19
7022
Деталь LOCKWASHER | Late 84 to 88 - FXRP
20
7036
Деталь LOCKWASHER, 1/4 | Late 84 - FXRP
21
7041
Деталь LOCKWASHER, 5/16 | 85 to * - FXRP
22
7069
Деталь LOCKWASHER, No. 10 | Late 84 - FXRP
23
7620W
Деталь NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel) | Late 84 - FXRP
24
7676
Деталь NUT | Late 84 - FXRP
25
7742
Деталь LOCKNUT, 1/4-20 X 7/32 X 7/16 hex. | Late 84 - FXRP
26
7986
Деталь NUT | Late 84 to 88 - FXRP
7987
Деталь CASTLE NUT, 5/8-18 X 15/16 hex | 89 to * - FXRP
27
9052
Деталь ROLLER BEARING | Late 84 to * - FXRP
28
11115
Деталь O-RING | Late 84 - FXRP
29
11411
Деталь GROMMET | 85 to * - FXRP
30
11428
Деталь PLUG, chain housing fill | Late 84 - FXRP
31
11726
Деталь STUD, chain boot N/A | Late 84 - FXRP
32
25402-79A
Деталь BRACKET, rear | Late 84 - FXRP
33
25403-82A
Деталь CHAIN COVER ASSEMBLY, includes items 3, 6, 20, 22 - 24 | Late 84 - FXRP
35
25410-79A
Деталь SPACER PLATE | Late 84 - FXRP
36
25411-79
Деталь PLATE, boot mounting | Late 84 - FXRP
37
25412-79
Деталь BOOT, chain | Late 84 - FXRP
38
25413-79
Деталь BRACKET, front | Late 84 - FXRP
39
25414-82
Деталь SEAL | Late 84 - FXRP
40
40221-85A
Деталь SPROCKET | 85 to * - FXRP
40549-96A
Деталь TIRE rear-in.DUNLOP K181PT-16in. (not illustrated) | 85 to * - FXRP
42
40932-81
Деталь SPACER, sprocket | 85 - FXRP
43
41015-82A
Деталь WHEEL ASSEMBLY, cast - 9-spoke (black) | 85 to * - FXRP
43A
41087-83
Деталь SPACER, between bearings | Late 84 - FXRP
44
41110-79A
Деталь AXLE ASSEMBLY w/ #1, 3 & 5 | Late 84 to * - FXRP
41110-79A
Деталь AXLE ASSEMBLY, includes items 1, 9A & 26 | 89 to * - FXRP
45
41123-79
Деталь VALVE CAP | Late 84 to * - FXRP
46
41191-74A
Деталь SCREW 1/2-20 X 5/8 HEX SOCKET FLAT HD., W/LOCKPATCH | Late 84 - FXRP
41521-83
Деталь SPROCKET, 48 T - chain (not illustrated) | Late 84 - FXRP
48
41591-81
Деталь SPACER, rear axle - sprocket side | 85 to * - FXRP
49
41789-92
Деталь DISC, brake w/# 21 | Late 84 to * - FXRP
50
43157-83A
Деталь VALVE STEM ASSEMBLY | Late 84 to * - FXRP
52
43287-83
Деталь SLEEVE, 4-1/4in. long | Late 84 - FXRP
43289-82
Деталь SLEEVE, 3/4in. long | Late 84 - FXRP
53
43290-82
Деталь SPACER, 0.032 thick | Late 84 - FXRP
43291-82
Деталь SPACER, 0.016 thick | Late 84 - FXRP
43292-82
Деталь SPACER, 0.008 thick | Late 84 - FXRP
43293-82
Деталь SPACER, 0.004 thick | Late 84 - FXRP
43294-82
Деталь SPACER, 0.002 thick | Late 84 - FXRP
54
43310-83
Деталь WHEEL ASSEMBLY, cast - 9-spoke (black) | Late 84 - FXRP
55
43567-79
Деталь SCREW | Late 84 - FXRP
56
43604-78
Деталь SPACER, between bearings - 4.420 (orange) | 85 to * - FXRP
43605-78
Деталь SPACER, between bearings - 4.434 (yellow) | 85 to * - FXRP
43606-78
Деталь SPACER, between bearings - 4.448 (white) | 85 to * - FXRP
57
43650-82
Деталь SPACER WASHER | Late 84 - FXRP
57A
43654-86A
Деталь SPACER, right | Late B4 to * - FXRP
58
43667-82
Деталь SPACER, left | Late 84 - FXRP
59
47519-83A
Деталь OIL SEAL | Late 84 to * - FXRP
60
60299-85A
Деталь BELT GUARD | 85 to * - FXRP
61
60397-85B
Деталь DEBRIS DEFLECTOR | 85 to * - FXRP
62
95594-84B
Деталь WEIGHT 5 grams (black) | Late 84 to * - FXRP
