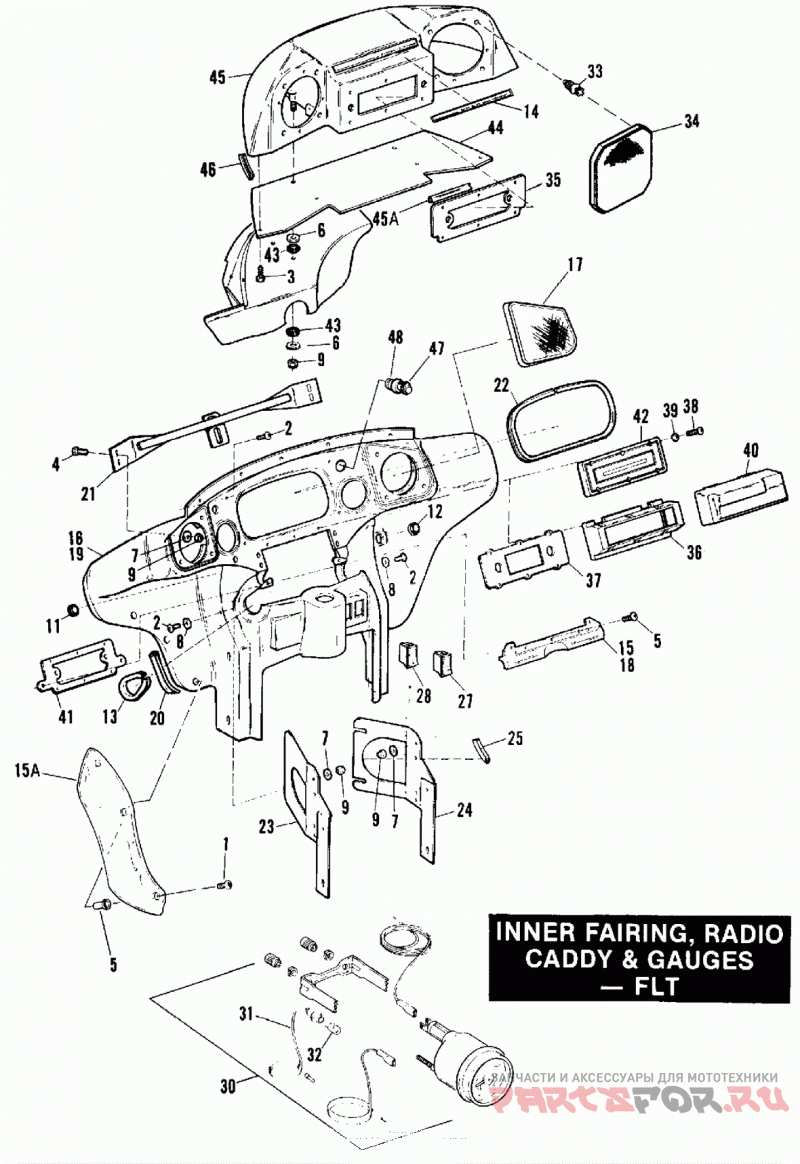

INNER FAIRING, RADIO CADDY & GAUGES - FLT MODELS

Harley Davidson FLTC DBLH Touring Tour Glide Classic (1987)

Harley Davidson
#oem кодцена
2
2513
Винт
3
2623W
Винт
4
3787
BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel)
6
6253W
WASHER, 1/4 X 3/4 X 3/64
7
6703
WASHER, 1/4 X 5/8 X 1 /16
8
7018
Шайба
9
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.
11
11411
GROMMET, clutch cable
12
11422
GROMMET, throttle cables
13
11453
Уплотнитель резиновый
14
14120-86
DECAL, radio caddy
15
56114-86
HANDLEBAR COVER (black)
16
58196-86
INNER FAIRING (black)
17
58184-86
SPEAKER GRILLE, left
17
58186-86
SPEAKER GRILLE, right
18
58207-86
HANDLEBAR COVER (brown) N/A
19
58210-86
INNER FAIRING (brown)
20
58311-86
MOLDING, inner fairing
21
58323-86
CROSS BRACE
22
58415-86A
SEAL, instrument panel
23
58478-86A
BRACKET, left
24
58479-86A
BRACKET, right
58480-86
WIRING HARNESS, gauges (not illus.) N/A
25
61648-85
MOLDING
27
67838-85
SWITCH, hazard warning
28
71502-86
SWITCH, passing lamps
30
74526-86A
VOLTMETER (REPLACES 74527-86)
75013-86
CLOCK, quartz
75031-86
GAUGE, oil temperature
75032-87
GAUGE, oil pressure
31
75044-84
SOCKET, w/wires (4; 2 - 1988 & Later)
32
75045-84
BULB - 12 V. (4; 2 - 1988 & Later)
33
76175-86A
CLIP DOUBLE END
34
76176-86
SPEAKER GRILLE
35
76238-86
BRACKET, radio-front
36
76241-86
HOOD, radio
37
76242-86
BRACKET, hood
38
76243-86
Винт
39
76244-86
Шайба
40
76245-86
COVER, radio
41
76246-86
BRACKET, radio - front
42
76247-86
COVER, radio opening N/A
43
77004-80
WASHER (rubber)
44
77036-86
BOTTOM, radio caddy
45
77042-86
RADIO CADDY (black)
45A
77060-86
MOLDING, radio caddy
46
67710-83
Уплотнение
