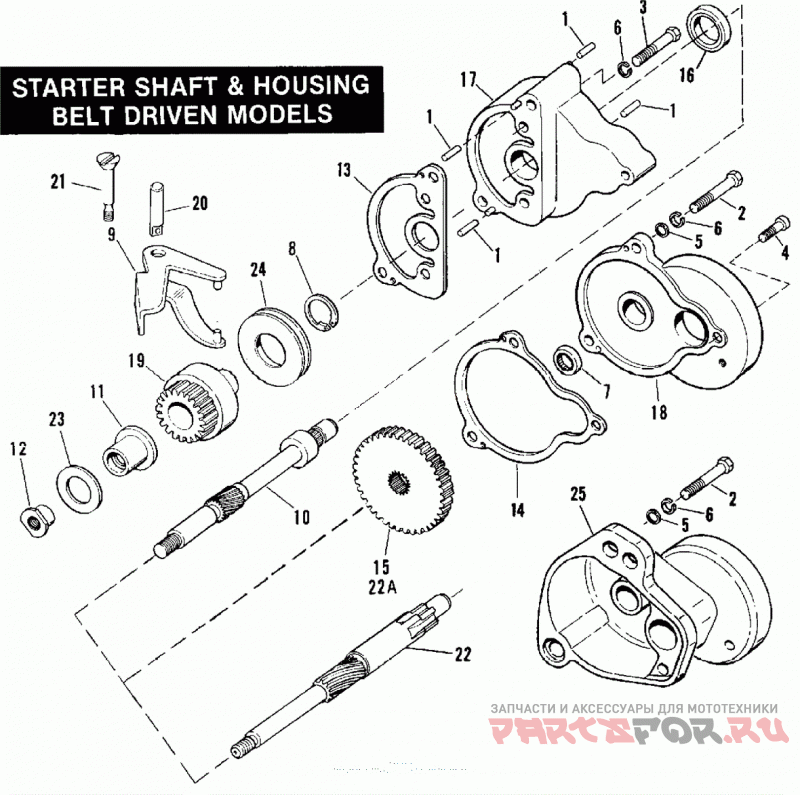

STARTER SHAFT AND HOUSING - BELT DRIVEN MODELS

Harley Davidson FXWG BELG FX Wide Glide (1986)

STARTER SHAFT AND HOUSING - BELT DRIVEN MODELS

oem код

название

цена

334A

ROLL PIN, starter shaft housing

3768

Болт

3993

BOLT, 1/4-20 X 1-1/4 hex. hd.(Grade 5 steel)

4741A

SCREW, 1/4-20 X 1 hex socket hd (w/lockpatch)

6703

WASHER, 1/4 X 5/8 X 1 /16

7036

LOCKWASHER, 1/4

9062

Игольчатый подшипник

11039

RETAINING RING, shaft collar

31300-84

SHIFTER LEVER, starter gear

31310-80A

STARTER SHAFT

31311-80

SPACER, starter shaft

31312-80

NUT, starter shaft

31320-80

GASKET, starter motor

31321-80

GASKET, starter generator cover

31340-80

GEAR, starter shaft

31341-80

OIL SEAL, starter shaft housing

31387-80

STARTER SHAFT HOUSING

31397-80

STARTER COVER

31443-65B

STARTER DRIVE

31478-65A

PIVOT BOLT, shift lever

31502-65

THRUST WASHER, belt cover

31503-65

SHIFTER COLLAR
