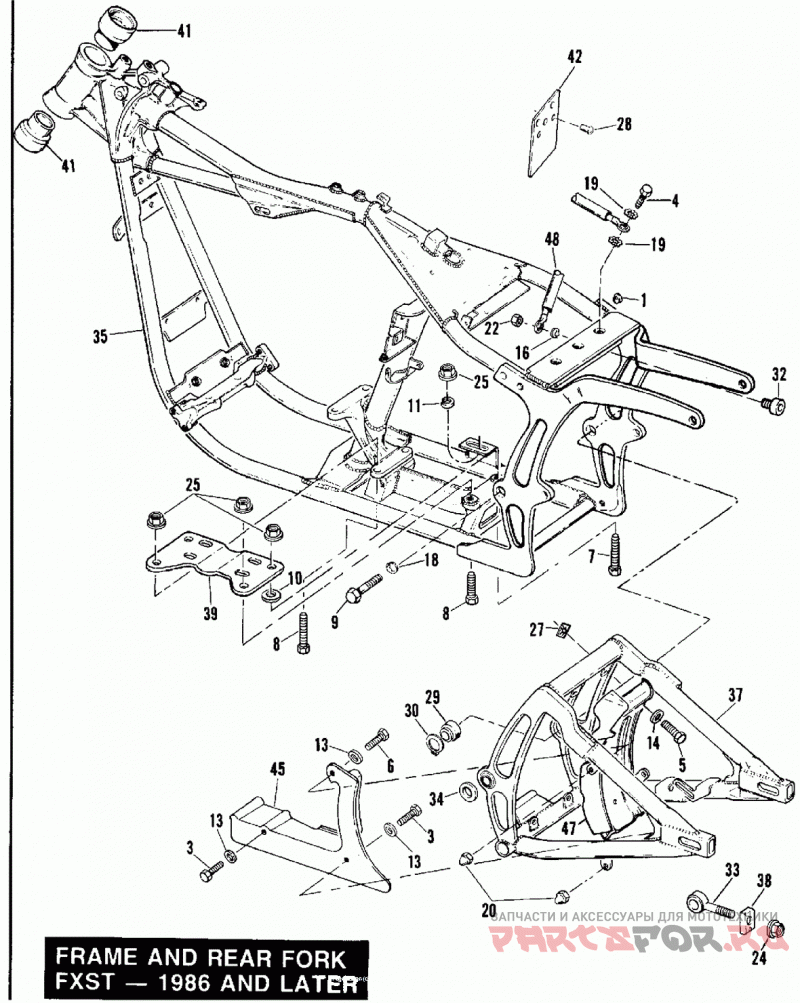

FRAME AND REAR FORK - 1986 FXST

Harley Davidson FXSTC BKLG Softail Custom (1986)

Harley Davidson
#oem кодцена
1
728
PLUG, frame side
3
2882W
BOLT, 5/16-18 X 5/8 hex. hd. (Grade 5 steel)
4
3440
BOLT, 3/8-16 X 1/2 hex. hd. (Grade 5 steel)
5
3767B
BOLT, 1/4-20 X 5/8 hex. hd.(Grade 5 steel)
6
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel)
7
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)
8
4724
BOLT, 3/8-24 X 1-1/2 hex. hd.(Grade 5 steel)
9
4961
BOLT, 3/4-16 X 1-5/8 hex. hd.(Grade 5 steel)
10
6019
WASHER, 3/8 X 29/32 X 1/16
11
6474
WASHER, 3/8 X 5/16 X 3/16 (hardened)
13
6702
WASHER, 5/16 X 11/16 X 1/16
14
6703
WASHER, 1/4 X 5/8 X 1 /16
16
7124
LOCKWASHER, 1/4 internal tooth
18
7142
LOCKWASHER, 3/4 internal tooth
19
7145W
LOCKWASHER, 3/8 external tooth
20
7507
ACORN NUT, 5/16-18 X 11/16 X 1/2 hex. (Grade 2 steel)(chrome)
22
7689W
JAM NUT
24
7767
FLANGE NUT
25
7782
FLANGE NUT
27
8108
SPEED NUT, 11/32 dia.
28
8692
заклёпка
29
9076
BEARING, rear fork pivot
30
11158
RETAINING RING, fork bearing
32
11451
CUSHION,
33
41583-84
ADJUSTER, rear axle
34
43283-86
SPACER, rear fork pivot
35
47008-86
Рама
35
48130-86
FRAME ASSEMBLY (HDI part only)
37
47537-86
REAR FORK
38
47548-84
END COVER, rear fork
39
47698-86B
TRANSMISSION MOUNTING PLATE
41
48311-60
BEARING CUP, frame
42
59648-84A
DEBRIS DEFLECTOR, upper
45
60362-86B
DEBRIS DEFLECTOR
47
60363-86C
REAR FENDER EXTENSION
48
70008-86
GROUND WIRE, starter relay
