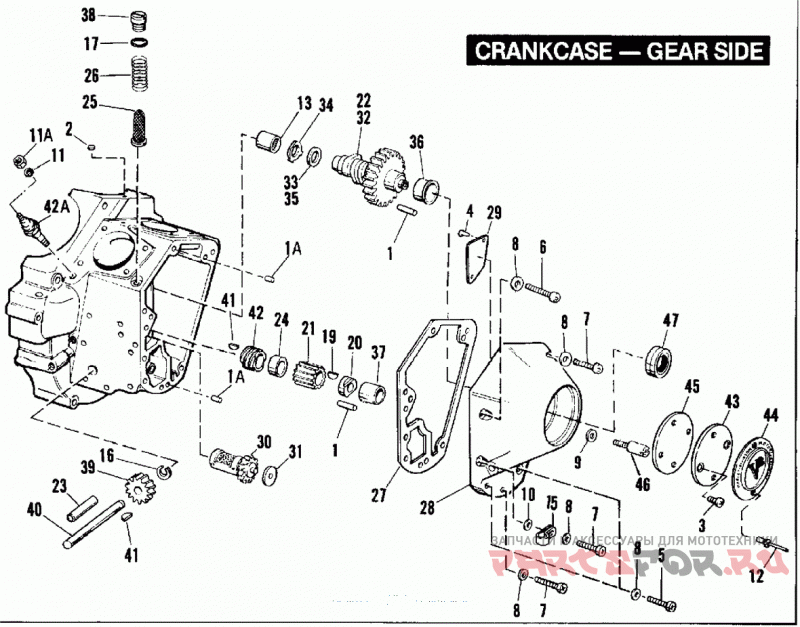

CRANKCASE - GEAR SIDE

Harley Davidson FXST BHLG Softail Standard (1986)

Harley Davidson
#oem кодцена
1
275
DOWEL PIN (2 - as required)
1A
358
Палец
2
653
PLUG, crankcase
3
1601
SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel)
4
2441
SCREW No. 10-24 X 1/2 TORX pan hd.
5
4740A
SCREW, 1/4-20 X 1-1/4 knurled socket hd. (w/lockpatch)
6
3480A
SCREW, 1/4-20 X 1-3/4 knurled socket hd. (Grade 8 steel)
7
4813A
SCREW, 1/4-20 X 1-3/8 knurled socket hd. (w/lockpatch)
8
6099
WASHER, 1/4 X 7/16 X 1/16
10
6242W
Шайба
11
7069
LOCKWASHER, No. 10
11A
7634
NUT, No. 10-32 X 5/16 hex. (brass)
12
8699
Поп-Заклепки
13
9058A
NEEDLE BEARING crankcase cam cover
15
10046
CLAMP, electronic ignition wire
16
11002
RETAINING RING, oil pump drive shaft
17
11105
Уплотнительное кольцо
19
23985-54
KEY, gear shaft
20
24023-54
NUT, gear shaft
21
24040-78
PINION GEAR, 1.4751-56 pitch dia. (orange)
21
24041-78
PINION GEAR, 1.4745-51 pitch dia. (white)
21
24042-78
PINION GEAR, 1.4737-45 pitch dia. (yellow)
21
24043-78
PINION GEAR, 1.4729-37 pitch dia. (red)
21
24044-78
PINION GEAR, 1.4721-29 pitch dia. (blue)
21
24045-78
PINION GEAR, 1.4715-21 pitch dia. (green)
21
24046-78
PINION GEAR, 1.4710-15 pitch dia. (black)
23
24641-36
BUSHING, oil pump shaft
24
24703-54B
SPACER, gear shaft pinion
25
24981-70
OIL SCREEN, crankcase
26
24982-70
OIL SCREEN SPRING
27
25225-70C
GASKET gear cover
28
25258-80B
GEAR COVER
29
25275-82
COVER, breather valve
30
25310-82A
BREATHER VALVE GEAR
31
25320-82
THRUST WASHER, breather valve - 0.130 thick (plastic)
31
25321-82
THRUST WASHER, breather valve - 0.135 thick (plastic)
31
25322-82
THRUST WASHER, breather valve - 0.140 thick (plastic)
31
25323-82
THRUST WASHER, breather valve - 0.145 thick (plastic)
31
25325-82
THRUST WASHER, breather valve - 0.150 thick (plastic)
31
25326-82
THRUST WASHER, breather valve - 0.155 thick (plastic)
31
25327-82
THRUST WASHER, breather valve - 0.160 thick (plastic)
31
25328-82
THRUST WASHER, breather valve - 0.165 thick (plastic)
32
24582-83A
CAM AND PINION GEAR SET - matched
33
25550-36
THRUST WASHER, cam gear - 0.050 thick
34
25550-57A
THRUST WASHER, cam gear
35
25551-36
THRUST WASHER, cam gear - 0.050 thick
35
25552-36
THRUST WASHER, cam gear - 0.060 thick
35
25553-36
THRUST WASHER, cam gear - 0.065 thick
35
25554-36
THRUST WASHER, cam gear - 0.070 thick
35
25555-36
THRUST WASHER, cam gear - 0.075 thick
35
25555-84
THRUST WASHER, cam gear - 0.045 thick
35
25556-79
THRUST WASHER, cam gear - 0.080 thick
35
25557-79
THRUST WASHER, cam gear - 0.085 thick
35
25558-79
THRUST WASHER, cam gear - 0.090 thick
35
25559-79
THRUST WASHER, cam gear - 0.095 thick
36
25581-70
BUSHING, gear cover
37
25582-73
BUSHING, gear cover pinion shaft
38
26263-80
PLUG, oil pump
39
26345-73
DRIVE GEAR, oil pump - 24 T
40
26346-70
DRIVE SHAFT, oil pump
41
26348-15
KEY, oil pump gear
42
26349-73A
DRIVE GEAR, oil pump
42
26349-84
DRIVE GEAR, oil pump (Late 85 to * - All Models)
42A
26561-84
Датчик давления масла
43
32504-80A
COVER inner
44
32524-83
TIMER COVER (polished aluminum)
45
32591-80
GASKET, ignition timer cover
46
32606-82
STUD, ignition timer cover
47
83162-51
Сальник
