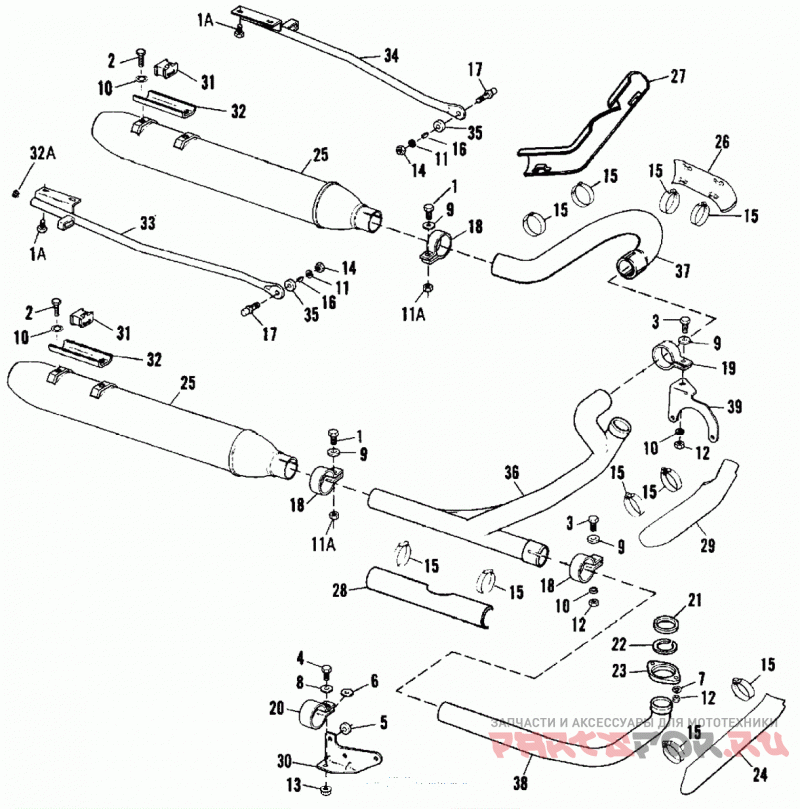

EXHAUST SYSTEM - FXRD

Harley Davidson FXRD EHLG FXR Touring (1986)

Harley Davidson
#oem кодцена
1
2818
BOLT, 5/16-18 X 1-1/2 hex. hd. (Grade 5 steel)
1A
3445
BOLT, 5/16-18 X 9/16 hex. hd. (w/lockpatch) (Grade 5 steel)
2
3953W
BOLT, 5/16-24 X 1/2 hex. hd.(Grade 5 steel)
3
4036
BOLT, 5/16-24 X 1-1/2 hex. hd.(Grade 5 steel)
4
4337W
SCREW,3/8-24 X 1-1/4 hex cap (grade 5)
5
5887
Проставка
6
6019
WASHER, 3/8 X 29/32 X 1/16
8
6701
WASHER, 3/8 X 13/16 X 1/16
9
6702
WASHER, 5/16 X 11/16 X 1/16
10
7041
LOCKWASHER, 5/16
11
7068
LOCKWASHER,1/2
11A
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex.
12
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
13
7780
LOCKNUT,flange 3/8-24 X 13/32 X 11/16 hex.
14
7845
HEX NUT, 1/2-20 X 3/4
15
9955
CLAMP, shields
16
23985-18
Шпонка
17
50960-86
STUD, footboard mounting-right ( late 86 )
17
50961-86
STUD, footboard mounting ( early 86 )
17
50962-86
STUD, footboard mounting-left ( late 86 )
18
65276-62
CLAMP, muffler
19
65301-86
CLAMP, crossover
20
65302-82A
CLAMP, exhaust pipe
21
65324-83B
GASKET, exhaust port
22
65325-83A
RETAINING RING, exhaust gasket
23
65328-83A
CLAMP exhaust port
24
65752-86
SHIELD, front exhaust (chrome)
25
65359-86
MUFFLER (chrome)
26
65431-86
SHIELD, crossover (chrome)
27
65441-86
SHIELD, left exhaust (chrome)
28
65594-86
SHIELD, right exhaust (chrome)
29
65632-83C
SHIELD, rear exhaust pipe
30
65670-82B
BRACKET, front exhaust
31
65685-86
Резиновое Крепление
32
65723-85
MOUNTING BRACKET
33
65759-86
SUPPORT, muffler mounting, right
34
65779-86
SUPPORT, muffler mounting, left
35
65786-86
Проставка
35
65787-86
SHIELD, lower left exhaust (chrome)
36
65794-86
EXHAUST PIPE, rear, right
37
65798-86
EXHAUST PIPE, left
38
65799-86
EXHAUST PIPE, front
39
65801-86
BRACKET, rear exhaust
