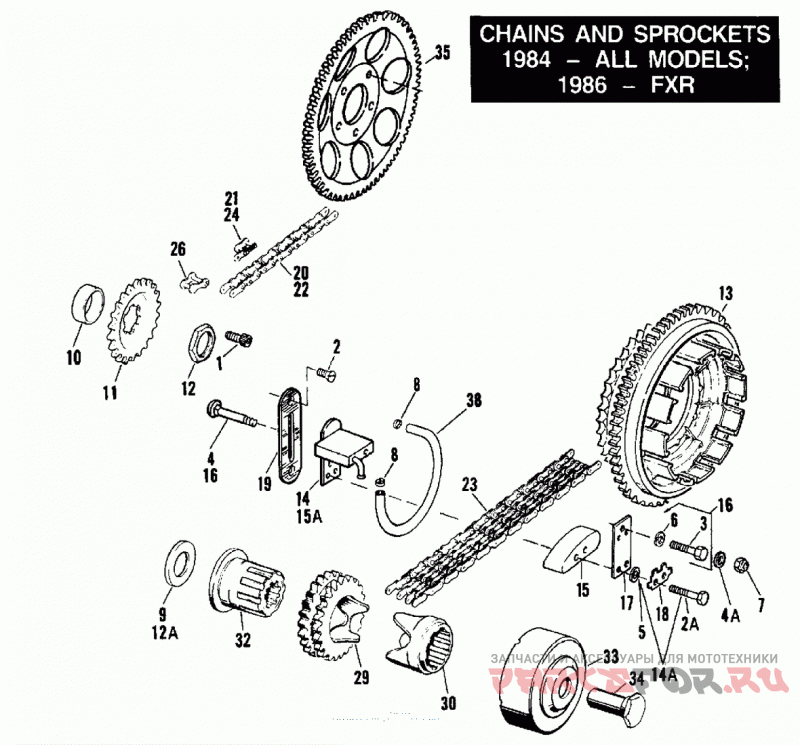

CHAINS AND SPROCKETS - 1984 - ALL MODELS; 1986 - FXR

Harley Davidson FXR EALG FXR Super Glide (1986)

Harley Davidson
#oem кодцена
1
857A
Винт
2
1783C
Деталь SCREW 5/16-18 X 7/8 Pozidriv flat countersink hd. (Grade 2)
2A
2614
Деталь BOLT, 1/4-28 X 2 hex. hd. (Grade 5 steel)
4
5444
Деталь CARRIAGE BOLT, 3/8-16 X 3 (Grade 5 steel)
4A
6400HB
Деталь WASHER, 5/16 X 13/16 X 3/32
5
6703
Деталь WASHER, 1/4 X 5/8 X 1 /16
7
7778
Деталь LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
9
24032-70
Деталь SPACER, sprocket shaft - 0.06 thick
9
24033-70
Деталь SPACER, sprocket shaft - 0.09 thick
9
24034-70
Деталь SPACER, sprocket shaft - 0.12 thick
9
24035-70
Деталь SPACER, sprocket shaft - 0.15 thick
9
24036-70
Деталь SPACER, sprocket shaft - 0.18 thick
9
24037-70
Деталь SPACER, sprocket shaft - 0.21 thick
10
33347-86
Распорная втулка
11
33339-86
Деталь SPROCKET, 22 T
12
35211-36
Деталь NUT, sprocket
12A
35850-84
Деталь SPACER, sprocket shaft - 0.01 thick (as req`d) (Late 84 - FXRS, FXRT;
12A
35851-84
Деталь SPACER, sprocket shaft - 0.02 thick (as req`d) (Late 84 - FXRS, FXRT;
12A
35852-84
Деталь SPACER, sprocket shaft - 0.03 thick (as req`d) (Late 84 - FXRS, FXRT;
13
37707-84A
Деталь CLUTCH SHELL AND SPROCKET W/RING GEAR
14A
39974-84
Деталь TENSIONER SCREW KIT
15
39976-65B
Деталь PAD, chain tensioner
15A
39990-65
Деталь CHAIN TENSIONER SHOE (Late 84 - FXRS, FXRT; 86 to * - FXR, )
16
39992-65C
Деталь CHAIN TENSIONER MOUNTING KIT, w/#`s 4, 4A & 7
17
39993-65
Деталь PLATE, chain tensioner
18
39996-65
Деталь LOCK PLATE, chain tensioner
19
39998-65A
Деталь ANCHOR PLATE chain tensioner
20
40011-84
Деталь REAR CHAIN, O-ring - 112 pitch (Late 84 - FXRS, FXRT)
21
40020-84
Деталь CONNECTING LINK, O-ring (Late 84 - FXRS, FXRT; 86 to * - FXR, )
23
40037-79A
Деталь PRIMARY CHAIN
24
40055-39
Деталь CONNECTING LINK, front chain (Duckworth) N/A
29
40269-85A
Деталь COMPENSATING SPROCKET
30
40299-83A
Деталь SLIDING CAM
32
40266-85
Деталь SHAFT EXTENSION
33
40267-85
Деталь COVER ASSEMBLY, w/springs
34
40392-70
Гайка
35
41470-86T
Деталь SPROCKET 48T (CHROME) (NOT ILLUSTRATED)
