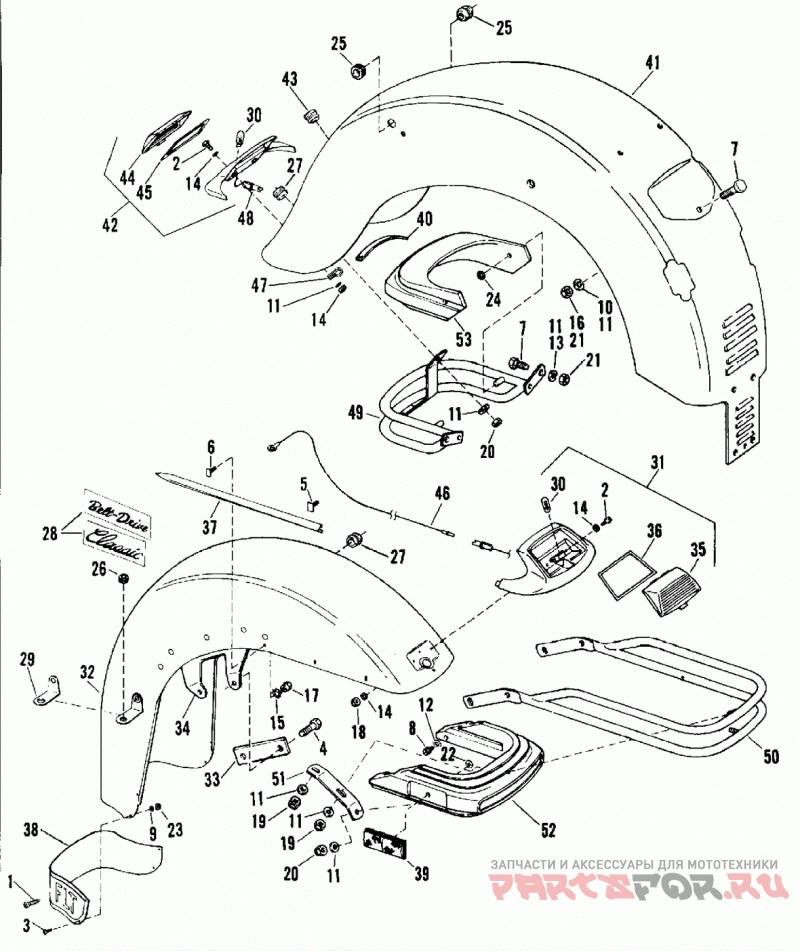

FENDERS AND BUMPERS

Harley Davidson FLTC DBLG Touring Tour Glide Classic (1986)

Harley Davidson
#oem кодцена
1
2531
SCREW, No. 4-40 X 5/16 Pozidriv pan hd. (Grade 2 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.
2
2604
SCREW, No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.
4
3462
BOLT, 5/16-18 X 1-1/4 hex. hd. (Grade 8 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.
5
3560WA
BOLT No. 10-24 X 3/8 | NOTE: For painted part numbers, see Dealer Accessory Guide.
6
3561WC
BOLT No. 10-24 X 3/8 | NOTE: For painted part numbers, see Dealer Accessory Guide.
7
3974HW
BOLT, 5/16-24 X 3/4 hex. hd.(Grade 5 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.
7
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.
8
4091
BOLT, No. 10-24 X 1/2 hex. washer hd. (self-tapping) | NOTE: For painted part numbers, see Dealer Accessory Guide.
9
6335
WASHER, #4 X 5/16 X 1/32 | NOTE: For painted part numbers, see Dealer Accessory Guide.
10
6702
WASHER, 5/16 X 11/16 X 1/16 | NOTE: For painted part numbers, see Dealer Accessory Guide.
11
6703
WASHER, 1/4 X 5/8 X 1 /16 | NOTE: For painted part numbers, see Dealer Accessory Guide.
12
6716
WASHER, No. 10 X 1/2 X 3/64 | NOTE: For painted part numbers, see Dealer Accessory Guide.
13
7041
LOCKWASHER, 5/16 | NOTE: For painted part numbers, see Dealer Accessory Guide.
14
7118
LOCKWASHER, No. 10 internal tooth | NOTE: For painted part numbers, see Dealer Accessory Guide.
15
7220
LOCKWASHER, No. 10 external tooth | NOTE: For painted part numbers, see Dealer Accessory Guide.
16
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex. | NOTE: For painted part numbers, see Dealer Accessory Guide.
17
7620W
NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.
18
7638
NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.
19
7682
LOCKNUT, 1/4-28 X 3/16 X 7/16 hex. | NOTE: For painted part numbers, see Dealer Accessory Guide.
20
7683
LOCKNUT, 1/4-28 X 5/16 X 7/16 hex. | NOTE: For painted part numbers, see Dealer Accessory Guide.
21
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel) | NOTE: For painted part numbers, see Dealer Accessory Guide.
22
8126A
SPEED NUT, 3/16 dia. stud size | NOTE: For painted part numbers, see Dealer Accessory Guide.
24
8135B
SPEED NUT, 1/4 dia. stud size | NOTE: For painted part numbers, see Dealer Accessory Guide.
25
11400
GROMMET (2 - 84) | NOTE: For painted part numbers, see Dealer Accessory Guide.
26
11431
GROMMET, speedometer cable guide | NOTE: For painted part numbers, see Dealer Accessory Guide.
27
11437
GROMMET, wiring harness | NOTE: For painted part numbers, see Dealer Accessory Guide.
28
59159-80
TRIM, front fender - in.Classicin. (silver) | NOTE: For painted part numbers, see Dealer Accessory Guide.
28
14331-90
DECAL, in.Classicin. (gold) | NOTE: For painted part numbers, see Dealer Accessory Guide.
29
38622-78
GUIDE, speedometer cable (grommet type) | NOTE: For painted part numbers, see Dealer Accessory Guide.
30
53439-79
BULB, fender tip lamp | NOTE: For painted part numbers, see Dealer Accessory Guide.
31
59082-79
LAMP ASSEMBLY, front fender | NOTE: For painted part numbers, see Dealer Accessory Guide.
32
59093-86
FRONT FENDER (prime) | NOTE: For painted part numbers, see Dealer Accessory Guide.
33
59166-80
LOCKPLATE | NOTE: For painted part numbers, see Dealer Accessory Guide.
34
59167-80
FRONT FENDER BRACE, right (prime) | NOTE: For painted part numbers, see Dealer Accessory Guide.
34
59172-80
FRONT FENDER BRACE, left (prime) N/A | NOTE: For painted part numbers, see Dealer Accessory Guide.
35
59180-80
LENS, front fender lamp | NOTE: For painted part numbers, see Dealer Accessory Guide.
35
68594-84
LENS, front fender lamp (HDI part only) | NOTE: For painted part numbers, see Dealer Accessory Guide.
36
59181-80
GASKET, front fender lamp lens | NOTE: For painted part numbers, see Dealer Accessory Guide.
37
59211-74A
SIDE TRIM STRIP | NOTE: For painted part numbers, see Dealer Accessory Guide.
38
59231-86
TRIM, front fender - lower | NOTE: For painted part numbers, see Dealer Accessory Guide.
39
59261-91
REFLECTOR, (amber) | NOTE: For painted part numbers, see Dealer Accessory Guide.
41
59579-85
REAR FENDER, louvered (prime) | NOTE: For painted part numbers, see Dealer Accessory Guide.
42
59658-79A
LAMP ASSEMBLY rear fender | NOTE: For painted part numbers, see Dealer Accessory Guide.
43
67070-76
GROMMET | NOTE: For painted part numbers, see Dealer Accessory Guide.
44
68046-79
LENS, rear fender lamp | NOTE: For painted part numbers, see Dealer Accessory Guide.
45
68047-79
GASKET, rear fender lamp lens | NOTE: For painted part numbers, see Dealer Accessory Guide.
46
69504-80
WIRING HARNESS, front fender lamp | NOTE: For painted part numbers, see Dealer Accessory Guide.
47
71795-63A
CLAMP | NOTE: For painted part numbers, see Dealer Accessory Guide.
49
91013-79A
REAR BUMPER ASSEMBLY | NOTE: For painted part numbers, see Dealer Accessory Guide.
91023-79A
RAIL rear bumper | NOTE: For painted part numbers, see Dealer Accessory Guide.
50
91085-83D
FRONT BUMPER ASSEMBLY | NOTE: For painted part numbers, see Dealer Accessory Guide.
51
91090-77A
BRACKET, front bumper | NOTE: For painted part numbers, see Dealer Accessory Guide.
52
91107-77C
BUMPER CUSHION front | NOTE: For painted part numbers, see Dealer Accessory Guide.
53
91123-77
BUMPER CUSHION, rear | NOTE: For painted part numbers, see Dealer Accessory Guide.
