INNER FAIRING, RADIO CADDY AND GAUGES для мотоциклов Harley Davidson FLHTC DDLG Touring Electra Glide Classic (1986) (1986)

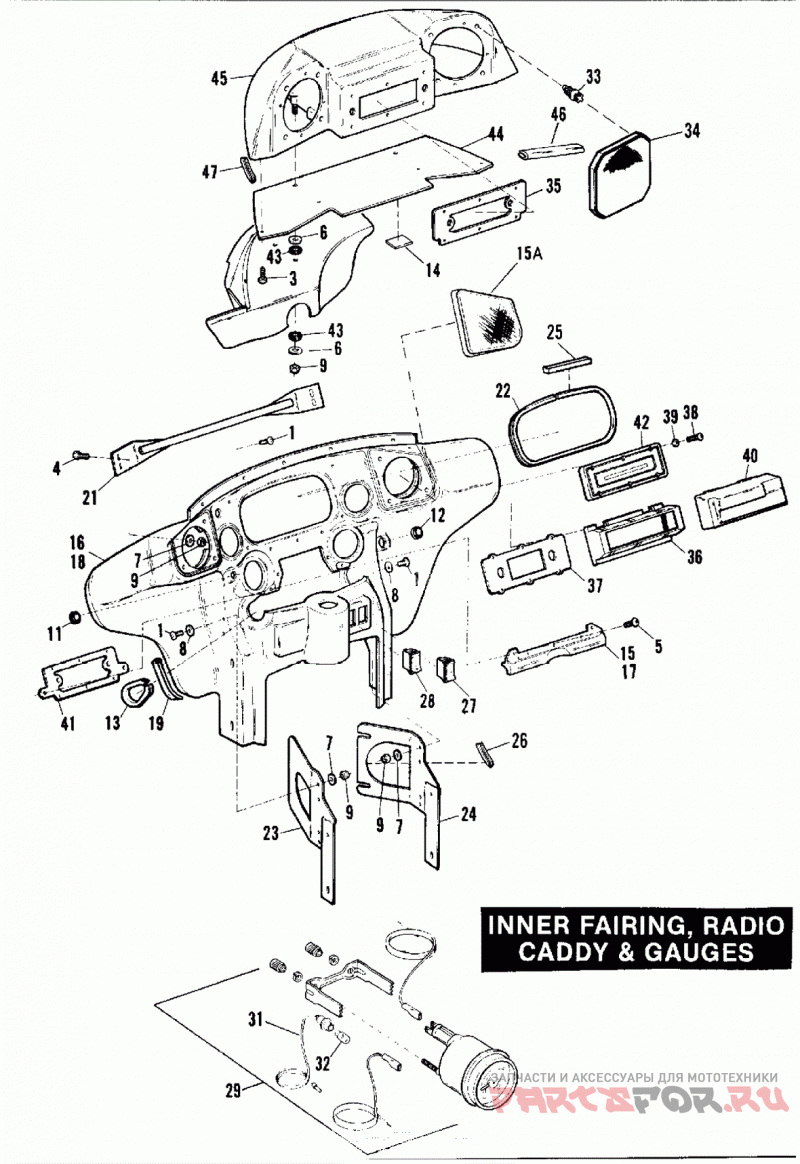

INNER FAIRING, RADIO CADDY AND GAUGES

Harley Davidson FLHTC DDLG Touring Electra Glide Classic (1986)

oem код

название

цена

2513

Винт

3787

BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel)

6703

WASHER, 1/4 X 5/8 X 1 /16

6734

WASHER N/A

7686

LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.

11411

GROMMET, clutch cables

11412

GROMMET, throttle cables

11436

Уплотнитель резиновый

56114-86

HANDLEBAR COVER (black)

15A

58184-86

SPEAKER GRILLE, left

15A

58186-86

SPEAKER GRILLE, right

58196-86

INNER FAIRING (black)

58311-86

MOLDING, inner fairing

58323-86

CROSS BRACE

58415-86A

SEAL, instrument panel

58478-86A

BRACKET, left

58479-86A

BRACKET, right

58480-86

WIRING HARNESS, gauges (not illustrated)

61640-84

FOAM STRIP

61648-85

MOLDING N/A

67838-85

SWITCH, hazard warning

71502-86

SWITCH, passing lamps

74526-86A

VOLTMETER (REPLACES 74527-86)

75013-86

CLOCK, quartz

75031-86

GAUGE, oil temperature

GAUGE, oil pressure

SOCKET, with wires

BULB - 12V

Винт

Шайба

BRACKET, radio - front

76247-86

COVER, radio opening N/A
