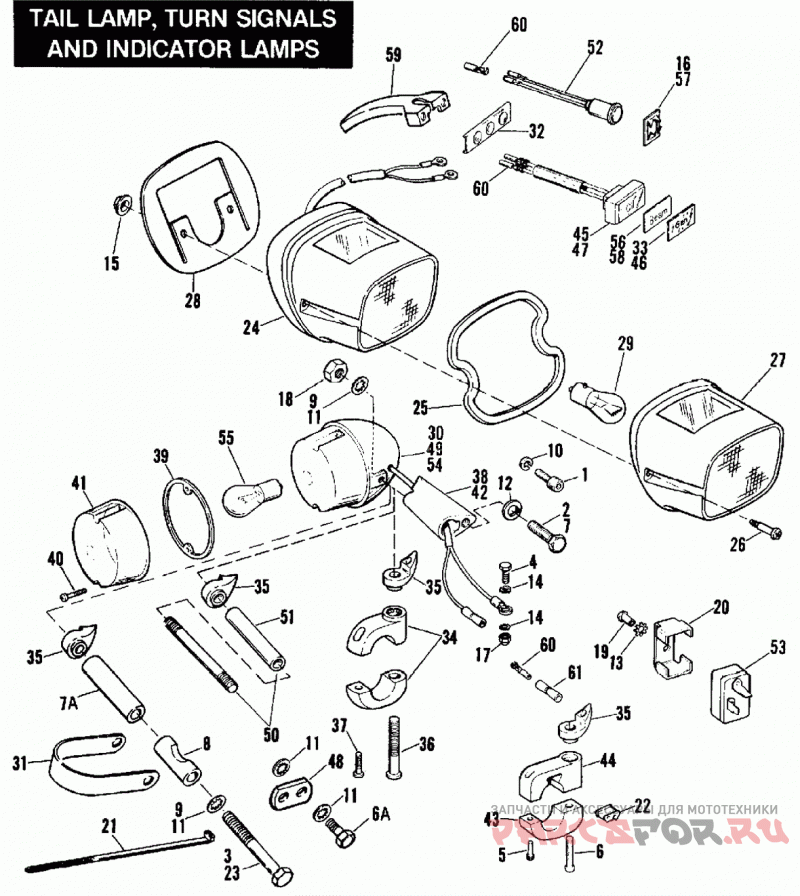

TAIL LAMP, TURN SIGNALS AND INDICATOR LAMPS

Harley Davidson XLX CCHF Sportster Roadster 1000 (1985)

Harley Davidson
#oem кодцена
1
2698A
SCREW, 5/16-18 X 9/16 socketfillis. hd.
4
3767B
BOLT, 1/4-20 X 5/8 hex. hd.(Grade 5 steel)
5
4069A
SCREW, 1/4-20 X 3/4 knurled socket hd.
6
4070
SCREW, 5/16-24 x 2-1/4 hex. socket hd.
7
4724
BOLT, 3/8-24 X 1-1/2 hex. hd.(Grade 5 steel)
10
7042
LOCKWASHER, 5/16 (high collar)
12
7130W
LOCKWASHER, 3/8 internal tooth
13
7220
LOCKWASHER, No. 10 external tooth
14
7230
LOCKWASHER, 1/4 external tooth
15
7501
SPEED NUT, 1/4 dia. stud size(self threading)
16
7614
SPEED NUT, 1/2 dia. stud size
17
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.
19
8519
RIVET, flasher clip
20
9952
CLIP, flasher
22
11449
GROMMET, right clamp
24
68008-73B
TAIL LAMP ASSEMBLY
25
68027-90
GASKET, tail lamp lens
26
68026-73
SCREW, tail lamp lens
27
68033-90
LENS, tail lamp (red)
28
68123-73
GASKET, tail lamp mounting
29
68168-89A
BULB, tail lamp
30
68435-84
LAMP WITH WIRE (amber) (4; 2 - XLS - rear & Late 85)
33
68466-84
INDICATOR LAMP (Late 84 to * - XL, XLS, XLX)
35
68477-73
Держатель
38
68480-73
SUPPORT, rear turn signal lamp (Late 83 to * - XL, XLS, XLX)
39
68481-73
GASKET, turn signal lens
40
68482-73
SCREW, turn signal lens
41
68483-73
Стекло сигнала
43
68486-82A
CLAMP, handlebartosignal
45
68489-83
INDICATOR LAMP, oil pressure
53
68543-64C
FLASHER, DIRECTIONAL, SOLID STATE
54
68567-84
LAMP WITH WIRE (amber) (Late 85 to * - XL, XLX)
55
68572-64B
BULB, rear turn signal
57
68608-83
SPEEDNUT, 3/8 dia. size
58
70021-83
INDICATOR LAMP, high beam
60
72038-71A
TERMINAL, socket
61
72044-71A
SOCKET HOUSING
