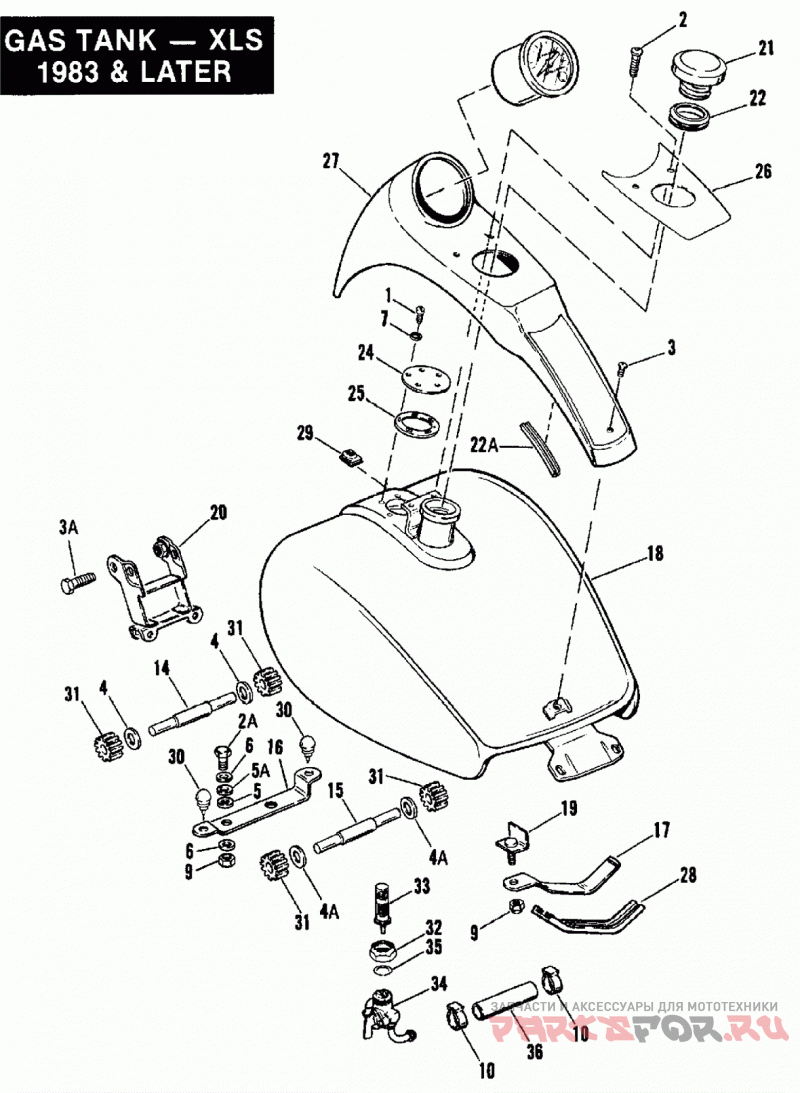

FUEL TANK - XLS - 1983 & LATER

Harley Davidson XLS CBHF Sportster Roadster 1000 (1985)

Harley Davidson
#oem кодцена
1
907
SCREW (w/lock patch)
2
919
SCREW, 1/4-28 X 3/4 hex socket button hd. (gr. 8)
2A
2551W
BOLT, 1/4-20 X 1 hex. hd. (Grade 5 steel)
3
3651
Винт
3A
4391
BOLT, 5/16-24 X 5/8 hex. hd. (Grade 5 steel)
4
5734
SPACER, front fuel tank mounting
4A
5735
SPACER, rear fuel tank mounting
5
6336B
WASHER (Late 83 to * - XLS)
5A
6701
WASHER, 3/8 X 13/16 X 1/16
6
6703
WASHER, 1/4 X 5/8 X 1 /16
7
6759
WASHER (nylon)
9
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.
10
10014
Зажим
14
47091-83
MOUNTING STUD, front - 3in. long
15
47096-83
MOUNTING STUD, rear - 2-7/8in. long
16
60949-83
Кронштейн топливного бака
17
61030-83
STRAP, fuel tank (Late 83 to * - XLS)
18
61025-83A
FUEL TANK (prime)
19
61038-82
STRAP END, fuel tank
21
61102-83C
Крышка заливной горловины
22
61112-82A
чехол
22A
61163-84
TRIM (Late 84 to * - XLS)
24
61321-80
PLATE, sending unit hole
25
61322-80A
GASKET, sending unit hole
26
61409-83
TRIM, console (aluminum finish)
27
61413-86
CONSOLE, tank (black wrinkle)
28
61630-81
BUMPER STRIP, fuel tank
29
62044-82
NUT, with retainer - 1/4-28
30
62123-66A
Амортизатор ударов
31
62144-83
RUBBER MOUNT, fuel tank
33
62166-81A
Фильтр
34
62167-81
FUEL VALVE, only
36
63501-68B
HOSE 1/4 I.D. (25 ft. long) (black) | NOTE: Hose is sold in bulk length. Cut to required length.
