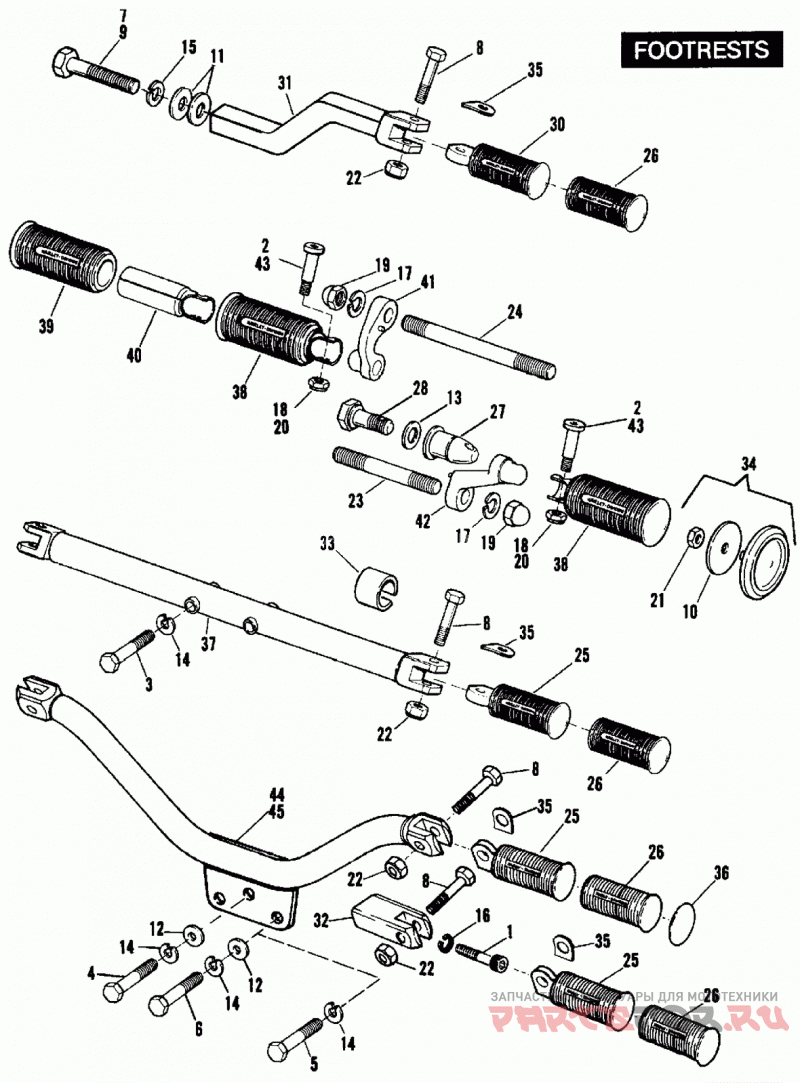

Подножки

Harley Davidson XLS CBHF Sportster Roadster 1000 (1985)

Harley Davidson
#oem кодцена
1
855B
SCREW, 3/8-16 X 2.0 hex socket hd. (grade 8)
2
2608
SCREW, 5/16-18 x 1-1/2 socket hd. (shouldered) (Late 81 to * - XL, XLS,
6
4435W
BOLT, 3/8-24 X 3-1/2 hex. hd.(Grade 5 steel)
7
4640
BOLT, 7/16-20 x 1 hex.
8
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
8
4724
BOLT, 3/8-24 X 1-1/2 hex. hd.(Grade 5 steel)
12
6701
WASHER, 3/8 X 13/16 X 1/16
13
6718
WASHER, 1/2 X 1-1/16 X 3/32
14
7038
LOCKWASHER, 3/8
15
7039
LOCKWASHER, 7/16
16
7045
LOCKWASHER, 3/8 high collar
17
7068
LOCKWASHER,1/2
18
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex.
19
7627
ACORN NUT, 1/2-13 X 3/4 hex (chrome)
21
7742
LOCKNUT, 1/4-20 X 7/32 X 7/16 hex.
22
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
23
24751-75
STUD, right footrest
24
24752-75
STUD, left footrest
25
33048-72
FOOTREST (2 - XL; 4 - XLS)
26
33189-63
RUBBER PAD, only
27
42441-80
SHAFT, pivot rear brake
28
3607
BOLT, 1/2-13 X 2 hex. hd. (Grade 5 steel)
30
49117-77
FOOTREST, with cover
31
49118-84
BRACKET, highway - right (Late 84 to * - XLS)
31
49121-84
BRACKET, highway - left (Late 84 to * - XLS)
32
50615-83
FOOTREST BRACKET, passenger
34
50880-69
FOOTREST END COVER KIT, large (chrome)
35
50912-72
SPRING WASHER, footrest (2 - XL; 4 - XLS)
38
50939-52
FOOTREST, with cover
39
50940-52
COVER (rubber)
40
50939-52
FOOTREST ASSEMBLY (steel)
41
50948-75
SUPPORT, left footrest
