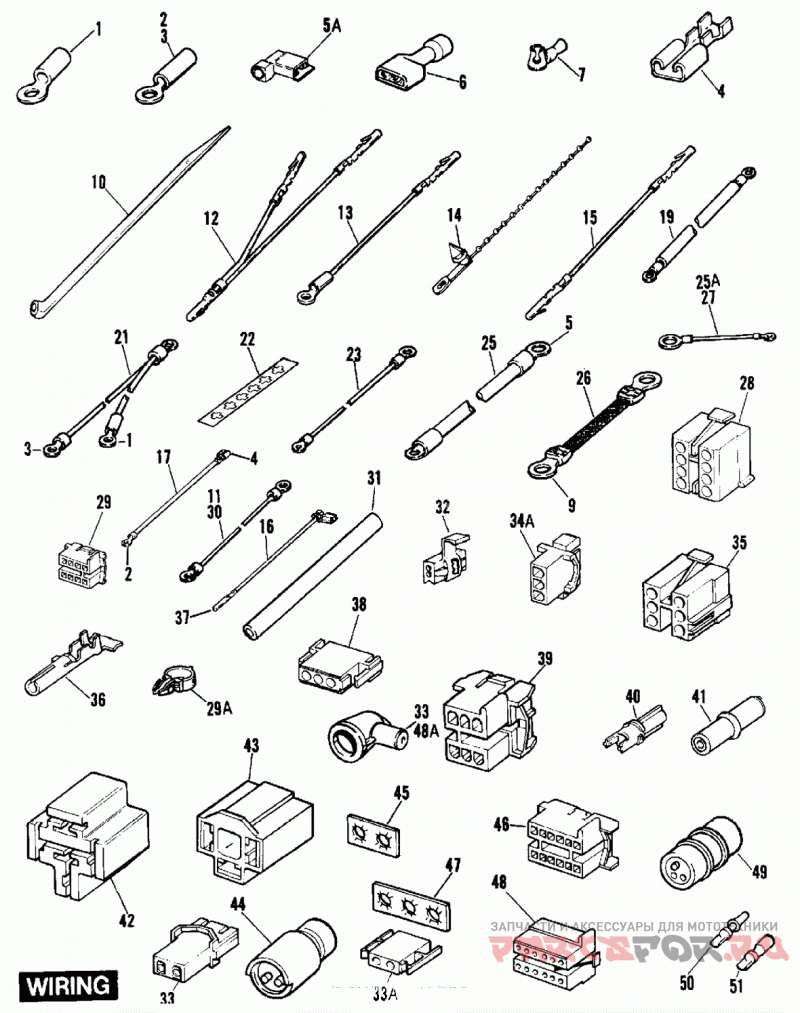

WIRING

Harley Davidson FXRC EJLF FXR Custom (1985)

Harley Davidson
#oem кодцена
1
9857
WIRE TERMINAL, ring type, no. 10 hole, #16-22 wire
2
9858
WIRE TERMINAL, ring type, 1/4 dia. hole, #16-22 wire
3
9862
WIRE TERMINAL, ring type, no. 10 hole, #14-16 wire
3
9866
WIRE TERMINAL, ring type, no. 10 hole, #10-12 wire
4
9875
WIRE TERMINAL, female spade, 5/16 slot, #16-22 wire
5
9879
WIRE TERMINAL, ring, 1/4 dia., #10-12 wire-u-clamp N/A
6
9900
WIRE TERMINAL, female spade, 3/16 slot #18-22 wire
7
9905
WIRE TERMINAL, 1/4 dia. cap type, #18-22 wire
8
9937
WIRE TERMINAL, female spade, 1/4 slot, #14-16 wire
10
10006
CABLE STRAP (black)
10
10065
CABLE STRAP
69545-84
MAIN WIRING HARNESS (Late 84 & Early 85 - FXRS, FXRT)
69551-85
MAIN WIRING HARNESS (Late 85 - FXRS, FXRT; 86 to * - FXR, FXRS, )
14
70005-70
CABLE STRAP
70022-83
WIRE ASSEMBLY, to left front directional
70027-83
WIRE ASSEMBLY, to right front directional
16
70049-83
WIRE ASSEMBLY, flasher connection - headlamp housing
17
70050-83A
WIRE ASSEMBLY, headlamp ground (black)
19
70034-82
WIRE, battery positive to circuit breaker (red)
23
70062-85
CABLE, battery negative (Late 85 to * - All Models)
23
70069-65B
CABLE, battery positive to solenoid
23
70097-75B
CABLE BATTERY NEGATIVE GROUND
25
70100-79A
CABLE, solenoid to starter
25A
70146-84
WIRE ASSEMBLY, starter solenoid positive terminal to pull-in terminal (Late 84 & Early
25A
70155-84
WIRE ASSEMBLY, starter relay ground N/A (Late 84 & Early 85 - FXRS, FXRT)
25A
70156-84
WIRE ASSEMBLY, starter relay positive to solenoid terminal (Late 84 & Early 85 - FXRS,
25A
70246-85
WIRE ASSEMBLY, starter relay positive to solenoid terminal (Late 85 - FXRS, FXRT)
26
70186-82
GROUND STRAP
27
70191-73A
CABLE ASSEMBLY, handlebar ground
29A
70345-84
RETAINER, wiring harness
31
70551-69
CONDUIT, 1/8 I.D. x 10 ft. long (black vinyl)(hi-temp)
31
70552-69
CONDUIT, 3/8 I.D. x 10 ft. long (black vinyl)
31
70553-69
CONDUIT, 7/16 I.D. x 10 ft. long (black vinyl)
31
70554-69
CONDUIT, 1/4 I.D. x 10 ft. long (black vinyl)
31
70555-69
CONDUIT, 1/4 I.D. x 10 ft. long (black vinyl)(hi-temp)
31
70556-71
CONDUIT, 5/16 I.D. x 10 ft. long (black vinyl)
31
70558-71
CONDUIT, 1/2 I.D. x 10 ft. long (black vinyl)
31
70559-71
CONDUIT, 1/8 I.D. x 10 ft. long (black vinyI)
33
70579-65
BOOT, insulating
35
72037-71
CONNECTOR, six socket terminals
36
72038-71A
TERMINAL, socket
37
72039-71A
TERMINAL, pin
39
72041-71
CONNECTOR, six pin terminal
40
72043-71A
PIN HOUSING
41
72044-71A
SOCKET HOUSING
42
72046-79
INSULATOR, spade terminals
43
72047-71
INSULATOR, spade terminals
44
72051-77A
RECEPTACLE - three-way
45
72275-74
CONNECTOR TAB, two terminal
46
72276-74
HOUSING, single pin terminal
47
72277-74
CONNECTOR TAB, three terminal
48
72278-74A
CONNECTOR twelve socket
49
74521-77A
PLUG RECEPTACLE
50
74536-77A
PIN, ignition module & sensor assembly
51
74539-77A
SOCKET, ignition module & sensor assembly
