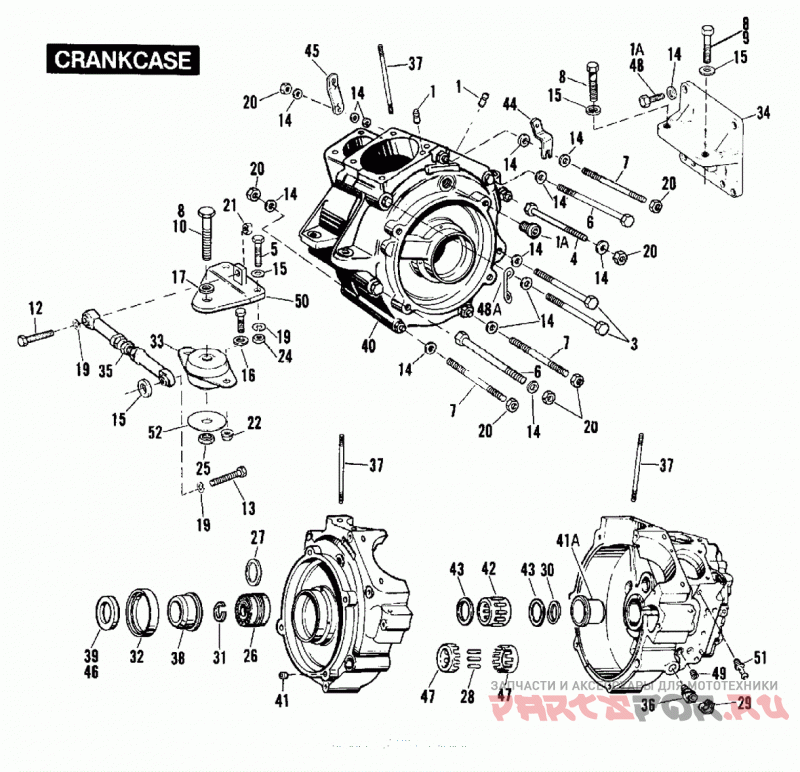

Картер двигателя

Harley Davidson FXRC EJLF FXR Custom (1985)

Harley Davidson
#oem кодцена
1
358
Палец
1A
720
PLUG, timing hole
3
3427
BOLT, 5/16-18 X 3-1/2 hex. hd. (Grade 5 steel)
4
3430
Болт
5
3554
BOLT, 3/8-16 X 1-3/4 hex hd.
6
3504
Болт
7
3506
STUD, 5/16-24 X 5-3/4 hex. hd.(Grade 5 steel)
8
3512
BOLT, 3/8-24 X 3-1/4 hex. hd. (chrome)
9
3513
BOLT N/A
11
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)
12
4716W
BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel)
13
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
14
6016
WASHER, 11/32 X 11/16 X 1/16
15
6019
WASHER, 3/8 X 29/32 X 1/16
16
6400HB
WASHER, 5/16 X 13/16 X 3/32
17
6516HW
WASHER, 7/16 X 1-1/8 X 1/8
19
7038
LOCKWASHER, 3/8
20
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
22
7780
LOCKNUT,flange 3/8-24 X 13/32 X 11/16 hex.
24
7783
NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel)
25
7782
NUT (flanged)
26
9028
BEARING ASSEMBLY, sprocket shaft (Timken)
27
9120
SHIM, bearing assembly, 0.0925 - .0915
27
9121
SHIM, bearing assembly, 0.0945 - .0935
27
9122
SHIM, bearing assembly, 0.0965 - .0955
27
9123
SHIM, bearing assembly, 0.0985 - .0975
27
9124
SHIM, bearing assembly, 0.1005 - .0995
27
9125
SHIM, bearing assembly, 0.1025 - .1015
27
9126
SHIM, bearing assembly, 0.1045 - .1035
27
9127
SHIM, bearing assembly, 0.1065 - .1055
27
9128
SHIM, bearing assembly, 0.1085 - .1075
27
9129
SHIM, bearing assembly, 0.1105 - .1095
27
9130
SHIM, bearing assembly, 0.1125 - .1115
27
9131
SHIM, bearing assembly, 0.1145 - .1135
27
9132
SHIM, bearing assembly, 0.1165 - .1155
27
9133
SHIM, bearing assembly, 0.1185 - .1175
27
9134
SHIM, bearing assembly, 0.1205 - .1195
28
9217
ROLLER right bearing - 0.0005 O.S.
28
9218
ROLLER right bearing - 0.0003 O.S.
28
9219
ROLLER right bearing - 0.0001 O.S.
28
9221A
ROLLER right bearing - 0.0002 O.S.
28
9222A
ROLLER right bearing - 0.0004 O.S.
28
9223A
ROLLER right bearing - 0.0006 O.S.
28
9224A
ROLLER right bearing - 0.0008 O.S.
28
9225A
ROLLER right bearing - 0.001 O.S.
29
10080
CLAMP (Late 84 to * - All Models)
30
11007
RETAINING RING, right bearing
31
9028
BEARING ASM., main - left side of crankshaft
32
12026B
Сальник
33
16207-79D
ENGINE MOUNT front
34
16208-85
BRACKET, engine to transmission
35
16219-79C
STABILIZER LINK top
36
16302-81
FITTING, crankcase (Late 84 to * - All Models)
37
16837-85C
STUD, cylinder base
38
24002-70
SPACER, sprocket shaft
39
24032-70
SPACER, sprocket shaft - 0.06 thick
39
24033-70
SPACER, sprocket shaft - 0.09 thick
39
24034-70
SPACER, sprocket shaft - 0.12 thick
39
24035-70
SPACER, sprocket shaft - 0.15 thick
39
24036-70
SPACER, sprocket shaft - 0.18 thick
39
24037-70
SPACER, sprocket shaft - 0.21 thick
40
24469-83C
SET OF CRANKCASES
41
24553-83
INSERT, left crankcase N/A
41A
24599-58B
BUSHING, right crankcase - std.
41A
24600-58B
BUSHING, right crankcase - 0.002in. O.S. O.D.
41A
24601-58B
BUSHING, right crankcase - 0.005in. O.S. O.D.
42
24645-81
RIGHT BEARING - 0.0005 O.S
42
24649-81
RIGHT BEARING - 0.0003 O.S
42
24650-81
RIGHT BEARING - 0.0001 O.S
42
24651-58
RIGHT BEARING - 0.0002 O.S
42
24652-58
RIGHT BEARING - 0.0004 O.S
42
24653-58
RIGHT BEARING - 0.0006 O.S
42
24654-58
RIGHT BEARING - 0.0008 O.S
42
24655-58
RIGHT BEARING - 0.001 O.S N/A
43
24692-58
WASHER, right bearing
44
25405-82
Зажим
45
29290-83
Держатель
46
35850-84
SPACER, sprocket shaft - 0.01 thick
46
35851-84
SPACER, sprocket shaft - 0.02 thick
46
35852-84
SPACER, sprocket shaft - 0.03 thick
47
43578-35
RETAINER, right roller bearing
48
43868-72
BOLT, transmission to engine bracket
49
45830-48
PLUG, crankcase oil line (Late 84 to * - All Models)
50
47159-79A
BRACKET, front engine mount
51
63533-41A
Фитинг
52
96210-80A
Шайба
