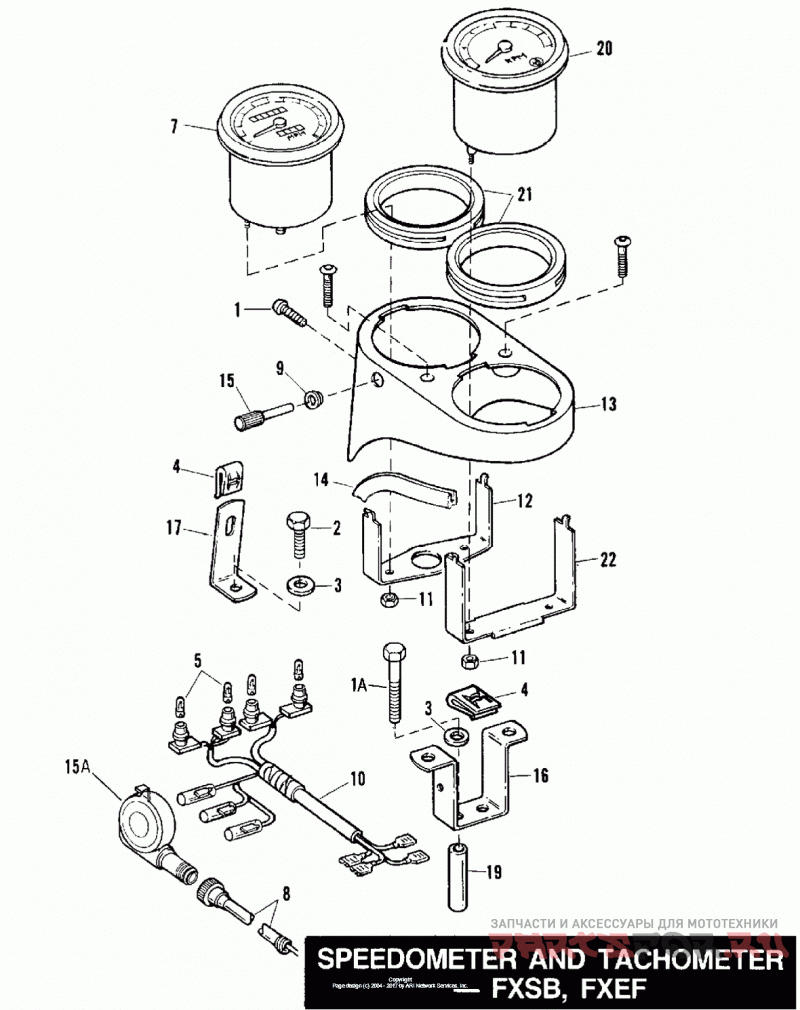

INSTRUMENT PANEL - FXSB, FXEF

Harley Davidson FXEF BBLF FX Super Glide Fat Bob (1985)

Harley Davidson
#oem кодцена
1
923
SCREW, 1/4-20 X 21/32 socket pan hd.
1A
4068A
BOLT 5/16-18 X 2-1/2 hex hd. (Grade 5)
2
4092
Болт
3
7041
LOCKWASHER, 5/16
4
8108
SPEED NUT, 11/32 dia.
5
53439-79
BULB
7
67020-85A
SPEEDOMETER - mph
7
67021-85B
(HDI Only) SPEEDOMETER - kph
8
67077-85
CABLE CORE AND CASING
9
67086-85
Уплотнитель резиновый
10
67091-85
WIRE ASSEMBLY, housing to headlamp, includes bulbs N/A
11
67094-85
Гайка
12
67095-85
BRACKET, speedometer
13
67116-85
HOUSING, speedometer & tachometer
14
67119-85
GASKET, housing
15
67122-85
KNOB, odometer reset
15A
67127-84A
DRIVE UNIT ASSEMBLY. speedometer
16
67241-85
BRACKET, rear instrument mounting N/A
17
67242-85
BRACKET, front instrument mounting
19
70941-84A
SPACER, rear instrument mounting
20
92042-85
TACHOMETER, m.p,h. kit
21
92061-83
CUSHION, instrument
22
92077-83
BRACKET, tachometer
