GEAR SHIFTER для мотоциклов Harley Davidson FLTC DBLF Touring Tour Glide Classic (1985) (1985)

Москва и регионы России

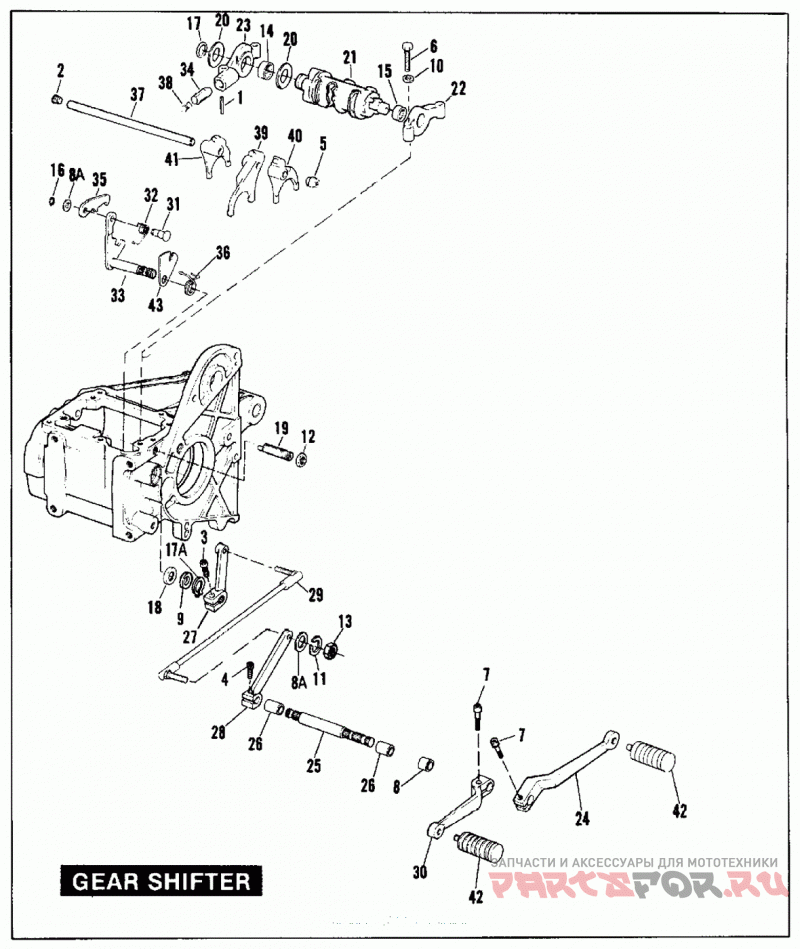

GEAR SHIFTER

Harley Davidson FLTC DBLF Touring Tour Glide Classic (1985)

GEAR SHIFTER

#

oem код

название

цена

1

Палец

Палец

2

PLUG, shifter fork shaft - right

PLUG, shifter fork shaft - right

3

SCREW, 5/16-24 X 1 hex socket hd. cap (gr. 8)

SCREW, 5/16-24 X 1 hex socket hd. cap (gr. 8)

4

SCREW, #1/4-20 X 5/8 hex socket head cap

SCREW, #1/4-20 X 5/8 hex socket head cap

5

SET SCREW, 1/2-20 X 1/2 socket hd. (w/lockpatch)

SET SCREW, 1/2-20 X 1/2 socket hd. (w/lockpatch)

6

BOLT, 1/4-20 X 1-1/4 hex. hd.(Grade 5 steel)

BOLT, 1/4-20 X 1-1/4 hex. hd.(Grade 5 steel)

7

SCREW, 1/4-20 X 3/4 knurled socket hd.

SCREW, 1/4-20 X 3/4 knurled socket hd.

8

Проставка

Проставка

8A

WASHER, 11/32 X 11/16 X 1/16

WASHER, 11/32 X 11/16 X 1/16

9

WASHER, 7/16 X 1-1/8 X 3/64

WASHER, 7/16 X 1-1/8 X 3/64

10

WASHER, 9/32 X 5/8 X 1/16

WASHER, 9/32 X 5/8 X 1/16

11

LOCKWASHER, 5/16

LOCKWASHER, 5/16

12

JAM NUT, 7/16 X 1/4 X 11/16(Grade 2 steel)

JAM NUT, 7/16 X 1/4 X 11/16(Grade 2 steel)

13

NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)

NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)

14

NEEDLE BEARING, right shifter cam support

NEEDLE BEARING, right shifter cam support

15

NEEDLE BEARING, left shifter cam support

NEEDLE BEARING, left shifter cam support

16

Стопорное кольцо

Стопорное кольцо

17

Стопорное кольцо

Стопорное кольцо

18

Уплотнение

Уплотнение

19

ADJUSTING SCREW, shifter arm

ADJUSTING SCREW, shifter arm

20

THRUST WASHER, 0.017 thick

THRUST WASHER, 0.017 thick

20

THRUST WASHER, 0.020 thick

THRUST WASHER, 0.020 thick

20

THRUST WASHER, 0.022 thick

THRUST WASHER, 0.022 thick

20

THRUST WASHER, 0.025 thick

THRUST WASHER, 0.025 thick

20

THRUST WASHER, 0.028 thick

THRUST WASHER, 0.028 thick

20

THRUST WASHER, 0.031 thick

THRUST WASHER, 0.031 thick

20

THRUST WASHER, 0.035 thick

THRUST WASHER, 0.035 thick

20

THRUST WASHER, 0.039 thick

THRUST WASHER, 0.039 thick

21

SHIFTER CAM

SHIFTER CAM

22

SUPPORT, shifter cam - left

SUPPORT, shifter cam - left

23

SUPPORT, shifter cam - right, includes #14

SUPPORT, shifter cam - right, includes #14

24

SHIFTER LEVER heel

SHIFTER LEVER heel

25

Вал

Вал

26

BUSHING shifter bracket

BUSHING shifter bracket

27

LEVER, shifter rod

LEVER, shifter rod

28

LEVER, gearshift (chrome)

LEVER, gearshift (chrome)

29

Стержень Рычага Переключ.

Стержень Рычага Переключ.

30

SHIFTER LEVER heel

SHIFTER LEVER heel

31

LEVER, shifter shaft, w/#32 & 33

LEVER, shifter shaft, w/#32 & 33

32

SPRING, shifter shaft lever

SPRING, shifter shaft lever

33

LEVER, shifter shaft w/pin and spring

LEVER, shifter shaft w/pin and spring

34

CAM FOLLOWER

CAM FOLLOWER

35

PAWL, shifter cam

PAWL, shifter cam

36

SPRING, shifter shaft

SPRING, shifter shaft

37

SHAFT, shifter fork

SHAFT, shifter fork

38

Пружина

Пружина

39

SHIFTER FORK

SHIFTER FORK

40

SHIFTER FORK

SHIFTER FORK

41

SHIFTER FORK

SHIFTER FORK

42

PEG shift lever

PEG shift lever

43

Пластина

Пластина
