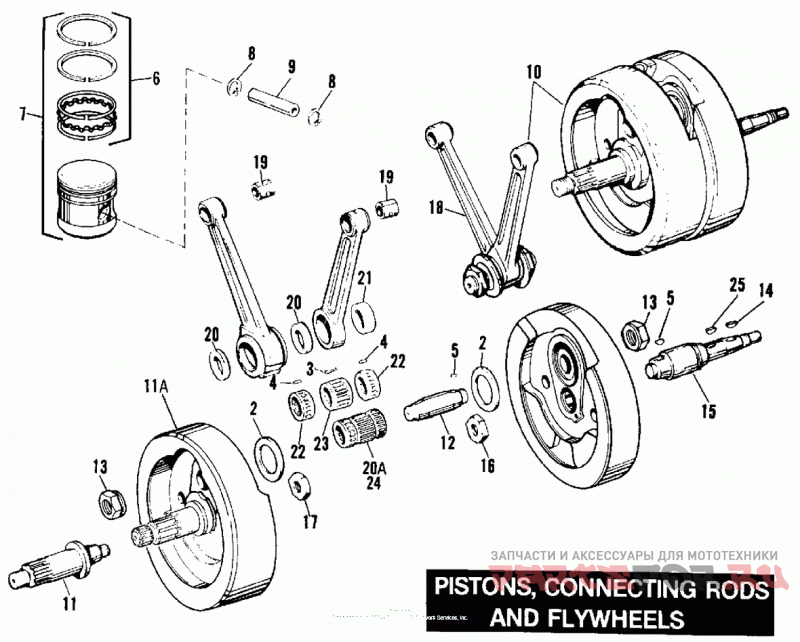

PISTONS, CONNECTING RODS AND FLYWHEELS

Harley Davidson FLHTC DJLF Touring Electra Glide Classic (1985)

Harley Davidson
#oem кодцена
2
6506
WASHER, 1-13/32 X 2-3/32 X 1/16 (bronze)
3
9181
ROLLER, crank pin - 0.0004 O.S. N/A
3
9182
ROLLER, crank pin - 0.0006 O.S.
3
9183
ROLLER, crank pin - 0.0008 O.S.
3
9184
ROLLER, crank pin - 0.0010 O.S. N/A
3
9185
ROLLER, crank pin - 0.0002 U.S.
3
9186
ROLLER, crank pin - standard N/A
4
9441A
ROLLER, crank pin - standard
4
9443A
ROLLER, crank pin - 0.0004 O.S.
4
9444A
ROLLER, crank pin - 0.0006 O.S.
4
9445A
ROLLER, crank pin - 0.0008 O.S.
4
9450A
ROLLER, crank pin - 0.0002 U.S.
5
11218
KEY, crankpin and gearshaft
6
21920-83
PISTON RING SET - standard
6
21921-83
PISTON RING SET - 0.005 O.S.
6
21922-83
PISTON RING SET - 0.010 O.S.
6
21923-83
PISTON RING SET - 0.020 O.S.
6
21924-83
PISTON RING SET - 0.030 O.S.
7
21940-83
PISTON AND RINGS ASSEMBLY - standard
7
21941-83
PISTON AND RINGS ASSEMBLY - 0.005 O.S.
7
21942-83
PISTON AND RINGS ASSEMBLY - 0.010 O.S.
7
21943-83
PISTON AND RINGS ASSEMBLY - 0.020 O.S.
7
21944-83
PISTON AND RINGS ASSEMBLY - 0.030 O.S.
8
22589-83B
LOCK RING piston pin
9
22764-83
PISTON PIN - standard
10
23906-78G
SET OF FLYWHEELS AND SHAFTS WITH RODS
11
23909-80
SPROCKET SHAFT (84 & Early 85 - Classics)
11A
23913-85
FLYWHEEL, sprocket side N/A (Late 85 & 86 - All Models)
12
23961-80A
CRANK PIN - standard
12
23974-87
CRANK PIN - 0.001in. O.S.
12
23975-87
CRANK PIN - 0.002in. O.S.
14
23985-54
KEY, gear shaft pinion
15
24006-83
GEAR SHAFT
16
24016-80
NUT, gear shaft
17
24017-80
NUT, sprocket shaft (84 & Early 85 - Classics)
18
24281-83
SET OF CONNECTING RODS w/BRGS. & CRANK PIN
19
24334-36
BUSHING, piston pin - 0.002 O.S.
19
24335-36
BUSHING, piston pin - 0.010 O.S.
20
24345-36A
BUSHING, rear connecting rod - lower
20A
24346-87A
Вкладыши комплект
21
24356-36A
BUSHING, front connecting rod - lower N/A
22
24366-71
RETAINER, crank pin roller - rear rod N/A
23
24367-71
RETAINER, crank pin roller - front rod N/A
24
24346-87A
Вкладыши комплект
24
24387-40B
SET OF ROLLERS & RETAINERS - 0.0004 O.S. N/A
24
24388-40B
SET OF ROLLERS & RETAINERS - 0.0006 O.S. N/A
24
24389-40B
SET OF ROLLERS & RETAINERS - 0.0008 O.S. N/A
24
24390-40B
SET OF ROLLERS & RETAINERS - 0.0010 O.S. N/A
24
24391-40B
SET OF ROLLERS & RETAINERS - 0.0002 U.S. N/A
25
26348-15
KEY, gear shaft pinion
