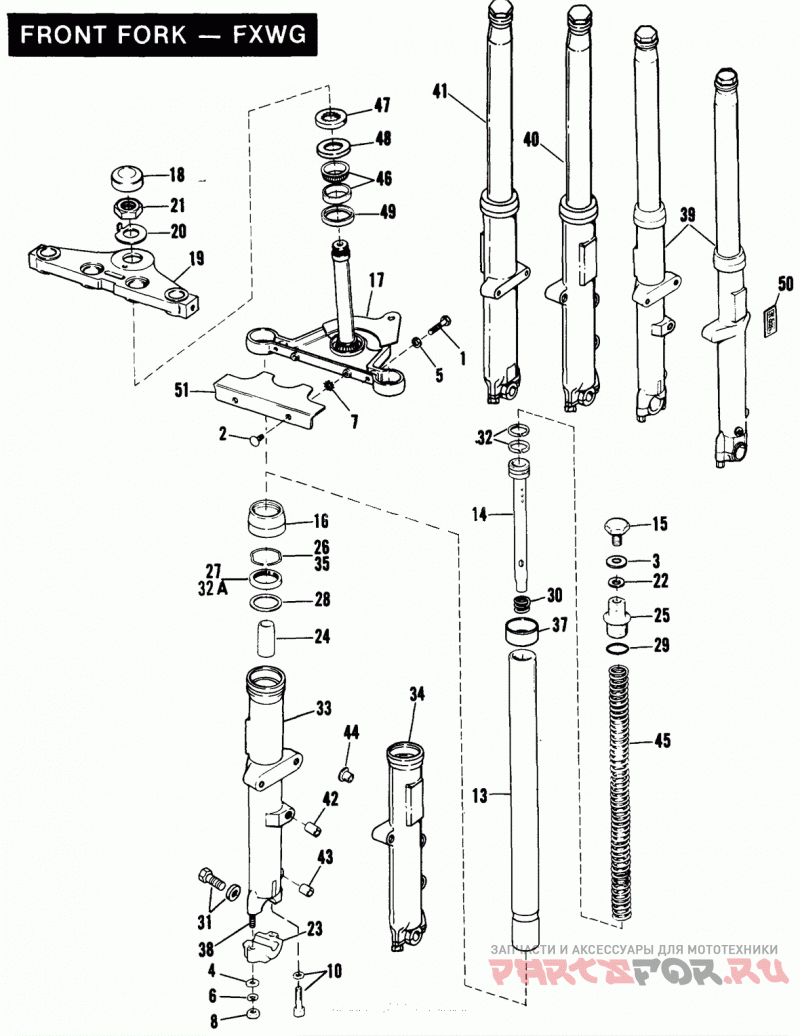

FRONT FORK - FXWG

Harley Davidson FXWG BEKE FX Wide Glide (1984)

Harley Davidson
#oem кодцена
1
4729
BOLT, 7/16-20 X 1-1/4 hex. hd.(Grade 5 steel)
2
5410
SCREW, 5/16-24 x 1/2 Pozidriv truss hd. (chrome) 80 to * - FXWG
3
5710
WASHER, 63/64 X 1-1/2 X 5/64
4
6702
WASHER, 5/16 X 11/16 X 1/16
5
7039
LOCKWASHER, 7/16
6
7041
LOCKWASHER, 5/16
7
7232
LOCKWASHER, 5/16 external tooth
8
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
10
45405-75A
SCREW & WASHER, damper tube 80 to * - FXWG
13
45417-80
SLIDER TUBE 80 to 83 - FXWG
13
45417-84
SLIDER TUBE 84 to * - FXWG
14
45418-80
DAMPER TUBE, complete 80 to 83 - FXWG
14
45418-84
DAMPER TUBE, complete 84 to * - FXWG
15
45419-80
CAP, slider tube 80 to * - FXWG
16
45420-80
DUST COVER 80 to * - FXWG
17
45640-88B
STEM & BRACKET W/ BEARING & SHIELD
18
45670-80A
CAP FORK STEM
19
45672-80B
BRACKET UPPER (CHROME)
20
45717-63
LOCKWASHER, fork stem nut 80 to * - FXWG
21
45718-60
NUT, fork stem 80 to * - FXWG
22
45733-48
OIL SEAL, fork tube plug 80 to * - FXWG
23
45832-77A
AXLE CAP, right slider 80 to * - FXWG
24
45834-77
LOWER STOP 80 to * - FXWG
25
45838-77
PLUG, fork tube 80 to * - FXWG
26
45842-77A
RETAINING RING, oil seal
27
45843-77
OIL SEAL, slider 80 to 83 - FXWG
28
45844-77
WASHER, slider 80 to 83 - FXWG
29
45845-77
O-RING, slider tube plug 80 to * - FXWG
30
45855-77
SPRING, damper tube 84 to * - FXWG
31
45858-77
DRAIN SCREW WITH WASHER, slider 80 to * - FXWG
32
45859-77A
RING, damper tube
32A
45865-84
WASHER, slider 84 to * - FXWG
33
45871-80
SLIDER, right - includes index nos. 31, 38 & 39 80 to 83 - FXWG
33
45872-80
SLIDER, left - includes index nos. 31, 38 & 39 80 to 83 - FXWG
34
45873-84
SLIDER, left 84 to * - FXWG
34
45874-84
SLIDER, right 84 to * - FXWG
35
45875-84A
OIL SEAL, slider
37
45940-84
BUSHING, upper - fork slider 84 to * - FXWG
38
45998-73
STUD, 5/16-18 both ends 84 to * - FXWG
39
46002-80
SET OF FORK SLIDERS, complete N/A 80 to 83 - FXWG
40
46004-84
FORK SLIDER, left - complete 84 to * - FXWG
41
46006-84
FORK SLIDER, right - complete 84 to * - FXWG
42
46018-77
BUSHING, brake caliper - upper 80 to 83 - FXWG
43
46019-77
BUSHING, brake caliper - lower 80 to 83 - FXWG
44
46020-84
BUSHING, upper - left slider 84 to * - FXWG
45
46048-80
SPRING 80 to 83 - FXWG
45
46048-84
SPRING 84 to * - FXWG
46
48300-60
ROLLER BEARING, with cup 80 to * - FXWG
47
48330-48A
CONE SEAT, upper - with guard 80 to * - FXWG
48
48361-80
DUST SHIELD, head bearing - upper 80 to * - FXWG
49
48365-48A
DUST SHIELD, head bearing -lower 80 to * - FXWG
50
59254-91
(HDI Only) REFLECTOR (amber)
51
67773-80A
MOUNTING PLATE, headlamp (chrome) 80 to * - FXWG
