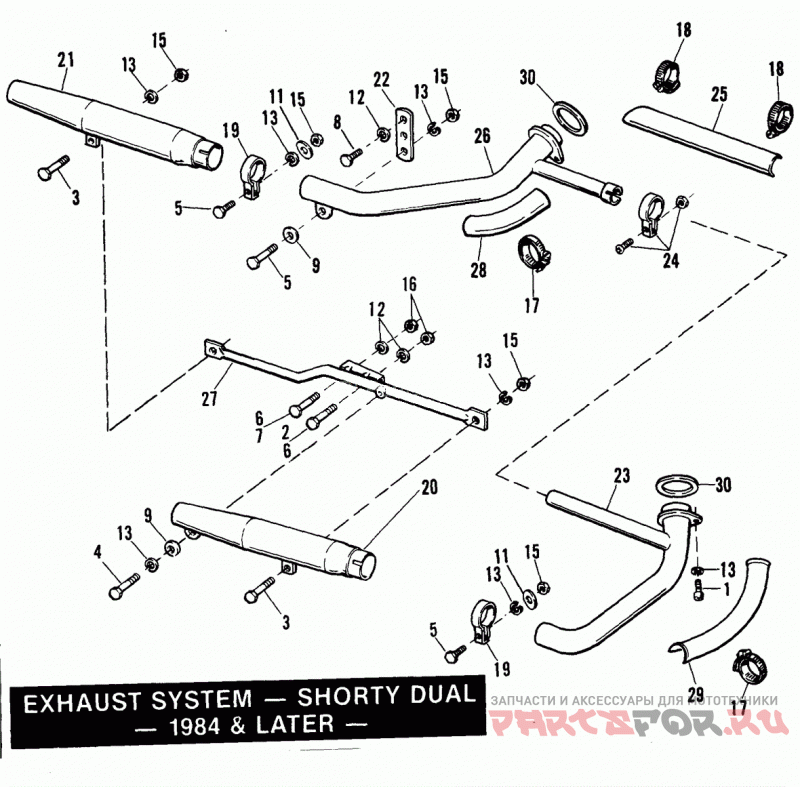

EXHAUST SYSTEM - SHORTY DUAL - 1984 & LATER

Harley Davidson FXWG BEKE FX Wide Glide (1984)

Harley Davidson
#oem кодцена
1
3201WA
SCREW, 5/16-18 X 1-1/4 knurled soc. hd.
2
3945
BOLT, 3/8-24 x 2-1/4 hex. hd. 84 to * - FXE-80, FXSB
3
3974HW
BOLT, 5/16-24 X 3/4 hex. hd.(Grade 5 steel)
4
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel)
5
4014W
BOLT, 5/16-24 X 1-1/4 hex. hd.(Grade 5 steel)
6
4380W
BOLT, 3/8-24 x 2 hex. hd. 84 to * - All Models
7
4411
BOLT, 3/8-24 X 1-3/4 hex. hd.(Grade 5 steel)
8
4716W
BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel)
9
6324W
WASHER, 5/16 x 11/16 x 3/32 84 to * - All Models
10
6701
WASHER, 3/8 X 13/16 X 1/16
11
6702
WASHER, 5/16 X 11/16 X 1/16
12
7038
LOCKWASHER, 3/8
13
7041
LOCKWASHER, 5/16
15
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
16
7800W
NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
17
9955
CLAMP, exhaust pipe shields 84 to * - All Models
18
9955
Зажим
19
65276-62
CLAMP, muffler inlet 84 to * - All Models
20
65347-81A
MUFFLER, front 84 to * - All Models
20
65349-81A
MUFFLER, front 84 to * - All Models
21
65397-81A
MUFFLER, rear 84 to * - All Models
22
65399-81
BRACKET, rear exhaust support 84 to * - All Models
23
65401-81
EXHAUST PIPE, front 84 to * - All Models
24
65411-80A
CLAMP, crossover pipe - with bolt & nut 84 to * - All Models
25
65415-80
SHIELD, crossover pipe 84 to * - All Models
26
65603-81
EXHAUST PIPE, rear 84 to * - All Models
27
65615-80A
SUPPORT TUBE, mufflers 84 to * - All Models
28
65702-80
SHIELD, rear (chrome) 84 to * - All Models
29
65728-80
SHIELD, front (chrome) 84 to * - All Models
30
65834-68A
GASKET, exhaust port 84 to * - All Models
