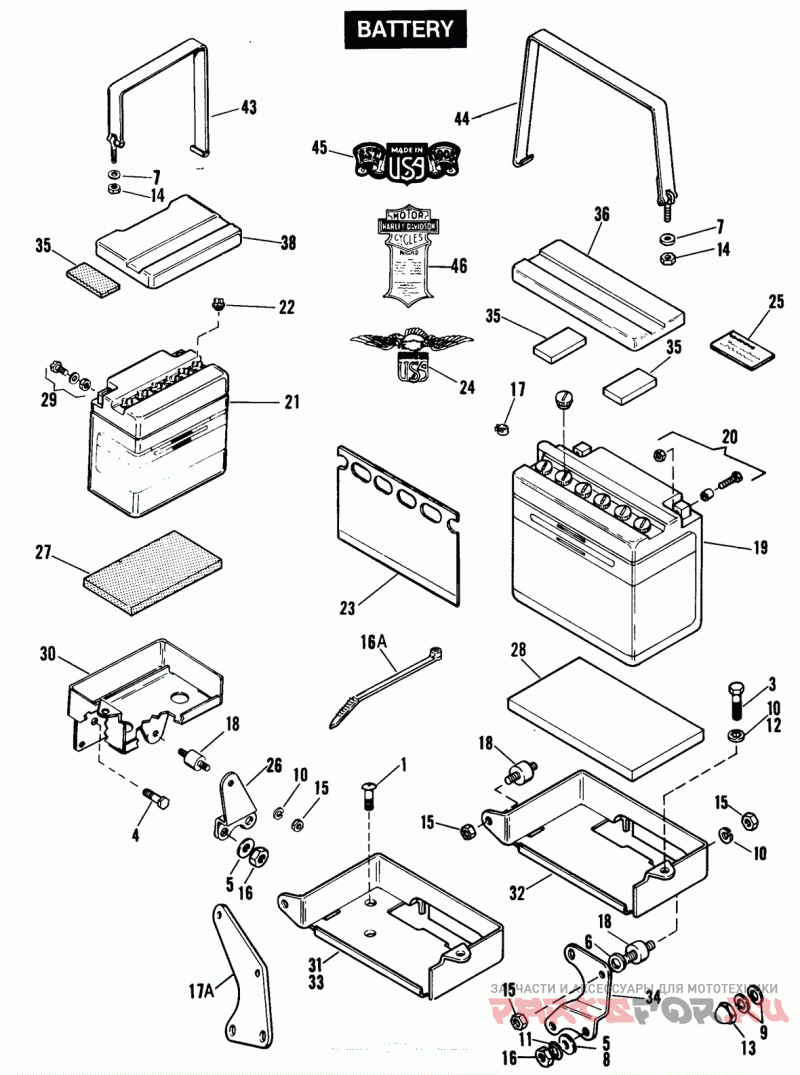

SCREW, 1/4-20 x 1/2 Pozidriv ctsk. hd. 73 to 79 - All Models except FX

SCREW, 1/4-20 X 1/2 hex. hd.

BOLT, 1/4-20 X 3/4 hex. hd. (grade 5 steel)

BOLT, 5/16-24 x 9/16 hex. hd. 71 to 78 - FX

WASHER, 11/32 X 11/16 X 1/16

WASHER, 5/16 x 11/16 x 1/8 80 to * - All Models

WASHER, 1/4 X 7/16 X 1/32

WASHER, 5/16 X 11/16 X 1/16

LOCKWASHER, 5/16

LOCKWASHER, 1/4

LOCKWASHER, 5/16

LOCKWASHER, 1/4 internal/external tooth

ACORN NUT, 5/16-24 82 - FXB; 83 to * - FXSB

NUT, 1/4-28 x 7/32 x 7/16 hex. 71 to Early 82 - All Models

NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)

NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)

STRAP, battery vent hose Late 83 to * - All Models

CLAMP, vent tube Late 84 to * - All Models

MOUNTING BRACKET, brake fluid reservoir 83 to * - All Models except FXE-80

RUBBER MOUNT, battery carrier 71 to * - All Models

BATTERY - 12 V. (electric start) (gray) 73 to 81 - All Models except FX

АКБ YTZ7SHE

TERMINAL KIT 73 to * - All Models except FX

BATTERY - 12 V. (kick start) 71 to 78 - FX

FILLER PLUG 71 to 78 - FX

DECAL, battery (chrome and black) N/A Early 79 - All Models

DECAL, battery - in.Made in USAin. eagle N/A 78 - All Models

WARNING LABEL N/A 80 & 81 - FXB

LABEL BATTERY WARNING (not shown)

WARNING LABEL 80 to * - All Models except FXB

BRACKET, battery carrier (electric start) 80 to 82 - FXB; 83 to * - FXSB

PAD, battery (kick start) N/A 71 to 78 - FX

PAD, battery (electric start) 74 to * - All Models except FX

TERMINAL SCREW KIT N/A 71 to 78 - FX

CARRIER, battery N/A 71 to 78 - FX

BATTERY CARRIER ASSY

BATTERY CARRIER

BRACKET, battery carrier N/A 71 to 78 - FX

BRACKET, battery carrier (electric start) 73 to Early 78 - FXE

BRACKET, battery carrier (electric start) (chrome) Late 78 to 82 - FXS, FXS-80, FXWG

BRACKET, battery carrier (electric start) 73 to Early 78 - FXE

BRACKET, battery carrier (electric start) (chrome) Late 78 to 82 - FXS, FXS-80, FXWG

CUSHION, battery cover 71 to * - All Models

COVER, battery - with cushions (electric start) (black) 73 to 79 - All Models except FX; 80 to * - FXE FXEF, FXEF-80, FXB, FXE-80

COVER, battery - with cushions (electric start) (chrome) 73 to 79 - All Models except FX 77 to * - FXS FXS-80, FXWG, FXSB

COVER, battery (kick start) (chrome) 71 to 77 - FX

COVER, battery - with cushions (kick start) (chrome) N/A 78 - FX

COVER, battery (kick start) (black) N/A 71 to 77 - FX

COVER, battery (kick start) (black) N/A Late 78 - FX

STRAP, battery cover (kick start) 71 to 78 - FX

STRAP, battery cover (electric start) 73 to * - All Models except FX

DECAL, battery (kick start) N/A 77 - FX

DECAL, battery - Harley-Davidson shield 82 to * - FXS-80, FXB, FXWG, FXSB
