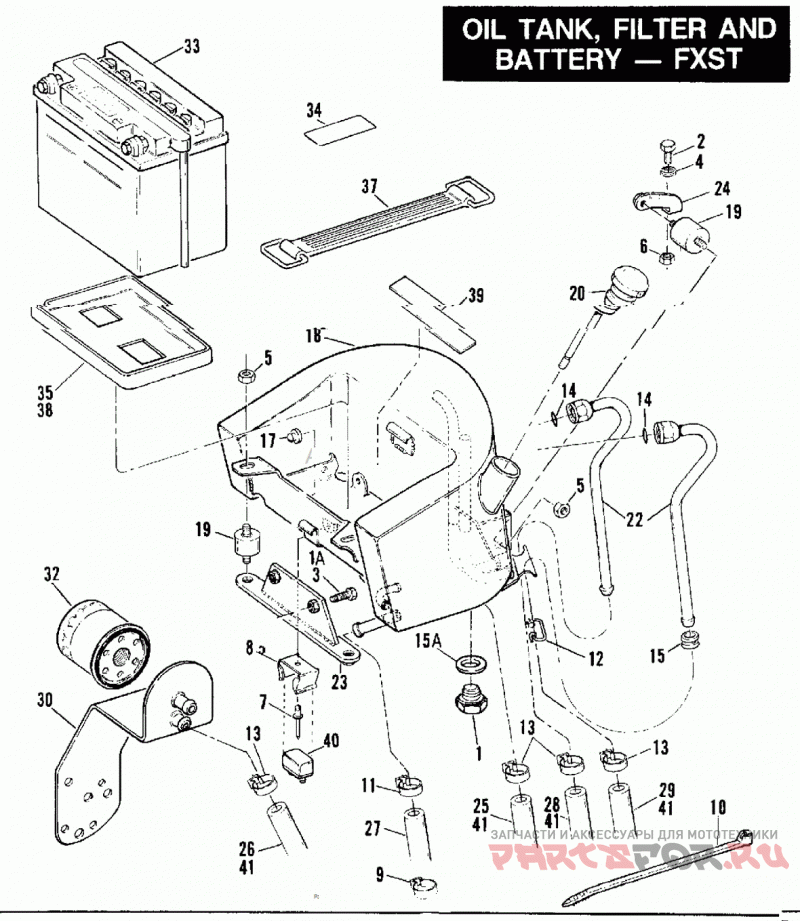

OIL TANK, FILTER AND BATTERY - FXST;

Harley Davidson FXST BHLE Softail Standard (1984)

Harley Davidson
#oem кодцена
1
706A
DRAIN PLUG
2
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel)
3
4391
BOLT, 5/16-24 X 5/8 hex. hd. (Grade 5 steel)
4
7041
LOCKWASHER, 5/16
5
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex.
6
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
7
8483A
заклёпка
8
9952
CLIP, circuit breaker
13
10080
CLAMP (6 - 84 & 85; 8 - 86 & Later)
14
11159
O-RING, oil tank fittings
15
11446
GROMMET, oil tank fittings N/A (84 & Early 85 - FXST)
15A
26231-78
WASHER, drain plug
17
60319-83
RUBBER MOUNT, battery (84 & Early 85 - FXST)
18
62498-84C
OIL TANK (external oil lines)
19
62563-65
RUBBER MOUNT, oil tank
20
62634-84A
FILLER CAP W/ DIPSTICK
22
62703-84
OIL LINES, with fittings & O-rings (84 & Early 85 - FXST)
23
62704-84A
BRACKET REAR
24
62707-84
BRACKET, oil tank to frame - front
30
63802-84A
BRACKET, oil filter
32
63805-80A
OIL FILTER (black)
33
65991-82B
АКБ YTZ7SHE
34
66047-80A
DECAL, oil tank in.WARNINGin.
35
66103-74A
CUSHION, battery (84 & Early 85 - FXST)
37
66105-77
BATTERY STRAP
39
66308-80
Подкладка
40
74599-77B
CIRCUIT BREAKER, 30 amp.
41
63500-68
HOSE, 3/8 I.D, x 5/8 O.D., reinforced rubber (25 ft.lg.) | NOTE: Hose is sold in bulk length. Cut to required length.
