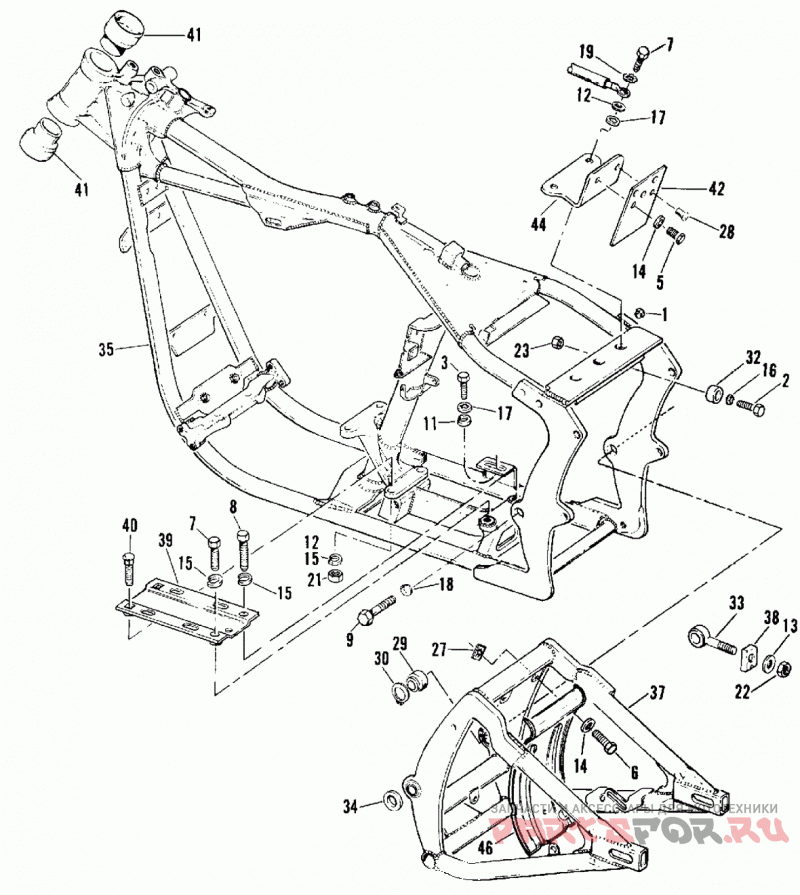

FRAME AND REAR FORK - 1984 & 1985 FXST

Harley Davidson FXST BHLE Softail Standard (1984)

Harley Davidson
#oem кодцена
1
728
PLUG, frame side
2
2722
Винт
3
2851
SCREW, 3/8-16 X 7/8 hex. cap
5
3728
SCREW, 1/4-20 X 1/2 hex. hd.
6
3767B
BOLT, 1/4-20 X 5/8 hex. hd.(Grade 5 steel)
7
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)
8
4337W
SCREW,3/8-24 X 1-1/4 hex cap (grade 5)
9
4969
Болт
11
6026
WASHER, 3/8 X 7/8 X 7/64
12
6701
WASHER, 3/8 X 13/16 X 1/16
13
6702
WASHER, 5/16 X 11/16 X 1/16
14
6703
WASHER, 1/4 X 5/8 X 1 /16
15
7038
LOCKWASHER, 3/8
16
7124
LOCKWASHER, 1/4 internal tooth
17
7130W
LOCKWASHER, 3/8 internal tooth
18
7142
LOCKWASHER, 3/4 internal tooth
19
7145W
LOCKWASHER, 3/8 external tooth
21
7643W
JAM NUT, 3/8-16 X 7-32 X 9/16 hex.
22
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex.
23
7742
LOCKNUT, 1/4-20 X 7/32 X 7/16 hex.
27
8123
SPEED NUT (Early 84 - FXST)
29
9076
BEARING, rear fork pivot
30
11158
RETAINING RING, fork bearing
32
11451
BUMPER, jiffy stand
33
41570-77
ADJUSTER, rear axle
34
43283-84
WASHER, rear fork pivot
35
47008-84
Рама
37
47537-84
REAR FORK
38
47554-73A
END COVER REAR FORK
39
47698-65C
TRANSMISSION MOUNTING PLATE
40
47730-77
BOLT, transmission mounting plate
41
48311-60
BEARING CUP, frame
42
59648-84A
DEBRIS DEFLECTOR, upper
44
59692-84
BRACKET, debris deflector (84 & Early 85 - FXST)
46
60363-84
DEBRIS DEFLECTOR, lower N/A
