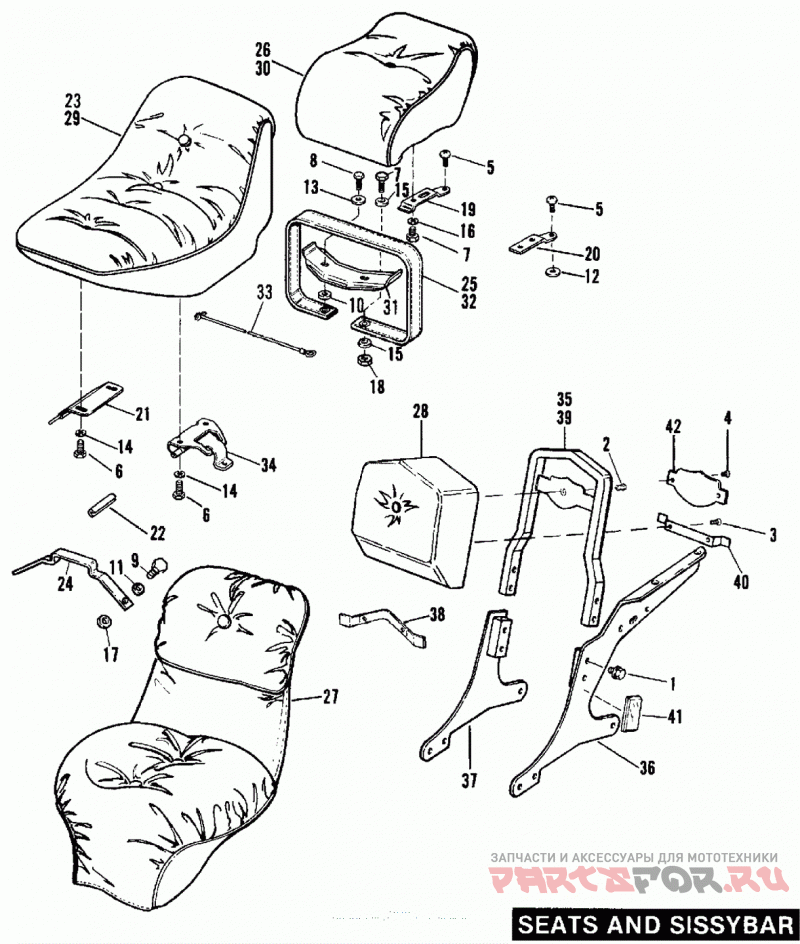

SEATS AND SISSYBAR

Harley Davidson FXRT ECLE FXR Touring (1984)

Harley Davidson
#oem кодцена
1
919
SCREW, 1/4-28 X 3/4 hex socket button hd. (gr. 8)
2
1615
Винт
3
2607
SCREW, 1/4-20 X 3/4 mach pan head (grade 2)
4
2711
SCREW, No. 4-40 X 3/8 pan hd. (self-tapping)
5
2739
SCREW, 1/4-28 X 1/2 Phillips truss hd. (w/lockwasher)(chrome)
6
3487
BOLT, 5/16-24 X 5/8 hex. locking hd.
7
3767B
BOLT, 1/4-20 X 5/8 hex. hd.(Grade 5 steel)
8
3996
Болт
12
6410
WASHER, 1/4 X 9/16 X 1/16 (nylon)
13
6645
WASHER, 11/32 X 1-1/32 X 1/8
20
51652-83B
BRACKET rear seat
21
52020-82
BRACKET ASSEMBLY
22
52041-82
PIN, seat hinge
26
52111-83
SEAT, rear
28
52545-84
BACKREST PAD KIT
29
52138-82B
SEAT pillow look, front (black vinyl)
33
52213-82
CORD, seat stop
34
52355-82
Защелка
35
52739-83
SISSY BAR ASSEMBLY
36
52797-87
SIDE PLATE, left
37
52798-87
SIDE PLATE, right
40
52771-82
BRACKET, backrest
41
59267-83A
REFLECTOR (red)
42
99013-82
MEDALLION
