Система зажигания для мотоциклов Harley Davidson FLTC DBLE Touring Tour Glide Classic (1984) (1984)

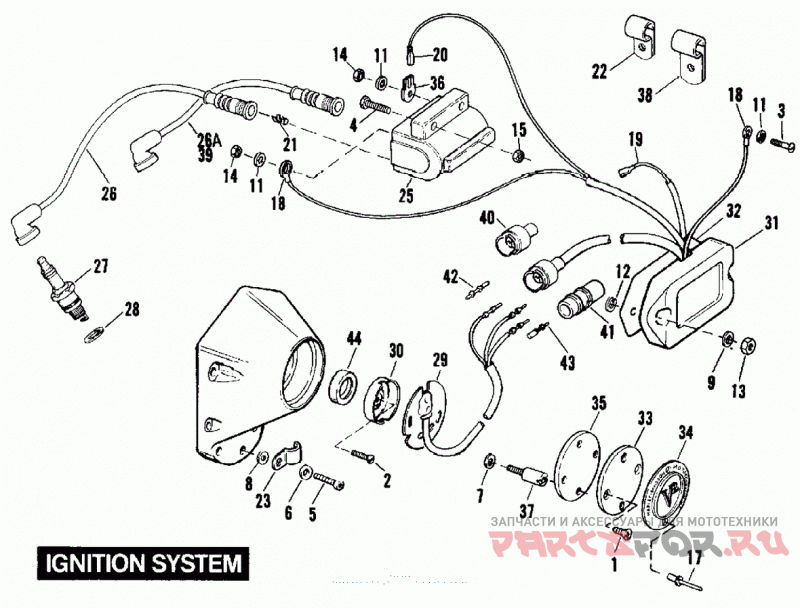

Система зажигания

Harley Davidson FLTC DBLE Touring Tour Glide Classic (1984)

oem код

название

цена

1601

SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel)

2611C

BOLT, No. 10-32 X 3/4 hex. washer hd. (Grade 5 steel)

2731W

SCREW, No. 10 X 3/8 Phillips truss hd. (self-tapping)

3826

Болт

4813A

SCREW, 1/4-20 X 1-3/8 knurled socket hd. (w/lockpatch)

6099

WASHER, 1/4 X 7/16 X 1/16

6192

WASHER, No. 8 X 7/16 X 3/64

6242W

Шайба

6716

WASHER, No. 10 X 1/2 X 3/64

7118

LOCKWASHER, No. 10 internal tooth

7634

NUT, No. 10-32 X 5/16 hex. (brass)

7638

NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel)

7682

LOCKNUT, 1/4-28 X 3/16 X 7/16 hex.

8699

RIVET, ignition cover

9857

WIRE TERMINAL, ring type, No. 10 hole, #16-22

9885

WIRE TERMINAL, female spade type

9900

WIRE TERMINAL

9908

TERMINAL, spark plug cable

9990W

CLIP, module wire

10046

CLAMP, circuit breaker wire

31609-80

SPARK COIL

31992-85A

SPARK PLUG CABLE ASSY, REAR

32342-58

GASKET, spark plug N/A

32400-80B

SENSOR ASSEMBLY w/o receptacle

Ротор

IGNITION MODULE

COVER inner

TIMER COVER, outer

GASKET, ignition cover

TERMINAL ADAPTER

Винт

CLIP, module wire

SPARK PLUG CABLE

RECEPTACLE - three-way

PLUG RECEPTACLE

PIN, plug

SOCKET, plug

Уплотнение
