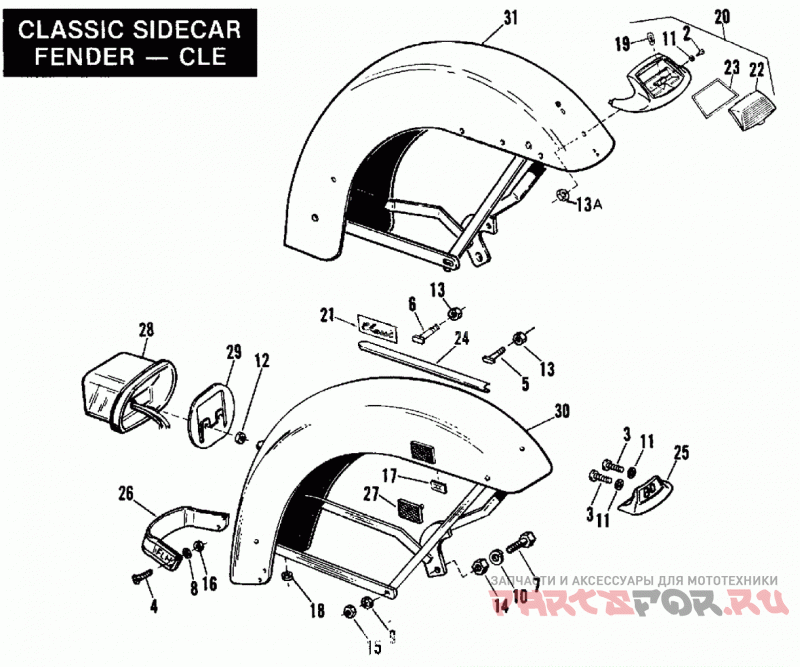

CLASSIC SIDECAR FENDER - CLE

Harley Davidson CLE SAKE Attachments Sidecar (1984) Not Sold With Classic

Harley Davidson
#oem кодцена
2
2604
SCREW, No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2 steel)
3
2630W
SCREW, No. 8-32 x 5/16 self tapping rd. hd. 79 to * - CLE
4
2710C
SCREW, No. 4-40 x 3/8 Phil. hd. 79 to * - CLE
5
3560WA
BOLT No. 10-24 X 3/8
7
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
8
6335
WASHER, #4 X 5/16 X 1/32
9
6653A
WASHER, 5/8 X 1-5/16 X 3/32
10
7038
LOCKWASHER, 3/8
11
7115
LOCKWASHER, No. 8 internal tooth 79 to 82 - CLE
11
7118
LOCKWASHER, No. 10 internal tooth
12
7501
SPEED NUT, 1/4 dia. stud size(self threading)
13
7624
LOCKNUT, No. 10-24 X 1/4 X 3/8 hex.
13A
7638
NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel)
14
7783
NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel)
15
7823
CASTLE NUT, 5/8-18 X 3/8 X 15/16 hex. (Grade 2 steel)
18
11410
GROMMET, tail lamp wiring 79 to * - CLE
19
53439-79
BULB, fender tip lamp Late 82 to * - CLE
20
59082-79
LAMP ASSEMBLY, sidecar fender Late 82 to * - CLE
21
59158-79
DECAL, fender - in.Classicin. (brown) 79 & 80 - CLE
21
59159-80
DECAL, fender - in.Classicin. (silver) 80 - CLE
21
14331-90
DECAL, in.Classicin. (gold)
22
59180-80
LENS, sidecar tender lamp lens Late 82 to * - CLE
23
59181-80
GASKET, sidecar fender lamp lens Late 82 to * - CLE
24
59211-74A
SIDE TRIM STRIP
25
59216-78
FENDER TIP KIT, with fittings - in.80in. 79 to * - CLE | Includes index nos. 3 & 11
26
59233-76
FENDER TRIM KIT, lower (complete) - in.FLHin., includesindex nos. 4, 8 & 16 79 to * - CLE
27
59255-91
REFLECTOR (red)
28
68008-73B
TAIL LAMP ASSEMBLY
29
68123-73
GASKET, tail lamp 79 to * - CLE
30
87900-67A
FENDER, prime 79 to 82 - CLE
31
87901-83A
FENDER, prime 83 to * - CLE
