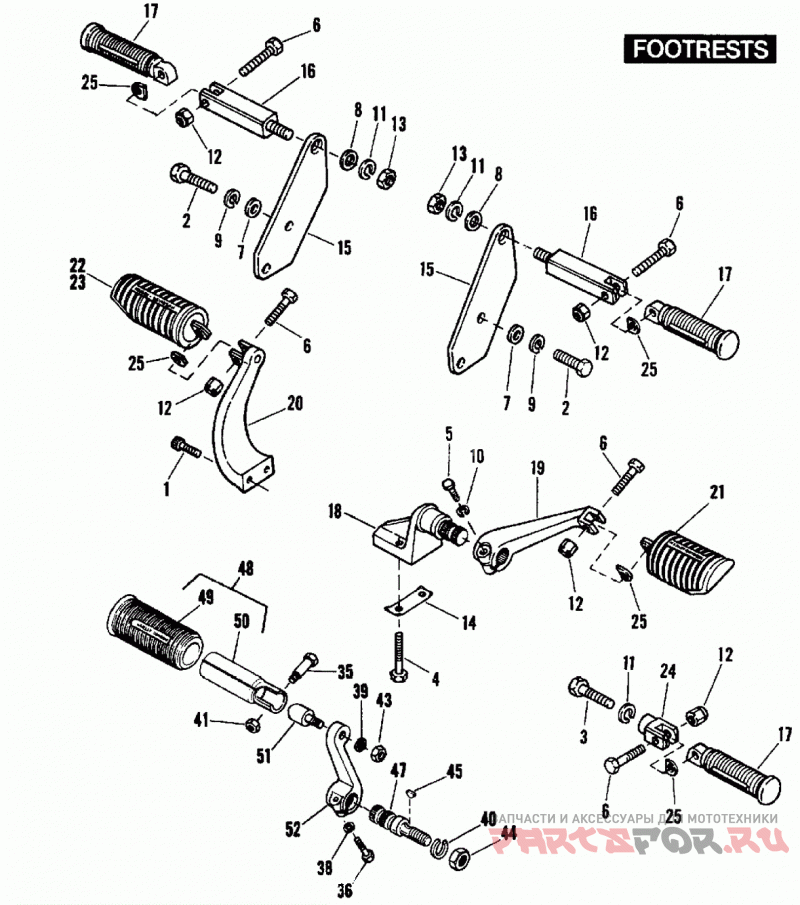

Подножки

Harley Davidson FXRT ECKD FXR Touring (1983)

Harley Davidson
#oem кодцена
1
856A
SCREW, 5/16-24 X 1 hex socket hd. cap (gr. 8)
2
2851
SCREW, 3/8-16 X 7/8 hex. cap
4
3503
Винт
5
4014W
BOLT, 5/16-24 X 1-1/4 hex. hd.(Grade 5 steel)
6
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
7
6701
WASHER, 3/8 X 13/16 X 1/16
8
6718
WASHER, 1/2 X 1-1/16 X 3/32
9
7038
LOCKWASHER, 3/8
10
7041
LOCKWASHER, 5/16
11
7068
LOCKWASHER,1/2
12
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
13
7880
NUT, 1/2-13 X 7/16 X 3/4 hex.(Grade 2 steel)
13A
33048-72
FOOTREST (2 or 4)
14
42334-82
LOCKPLATE
15
49126-77B
MOUNTING PLATE
16
49127-77A
FOOTREST SUPPORT
17
49140-80
FOOTREST (2 or 4)
18
50531-81
Кронштейн, подножки
19
50636-81A
BRACKET, right footrest
20
50639-81
BRACKET, left footrest
21
50643-82
FOOTREST W/COVER, right
50646-82
COVER (rubber)
23
50647-82
FOOTREST W/COVER, left
25
50912-72
SPRING WASHER (2 or 4)
35
2608
SHOULDER BOLT, rear footrest
36
3839W
BOLT, rear footrest
38
7036
LOCKWASHER, 1/4
39
7038
LOCKWASHER, 3/8
40
7068
LOCKWASHER,1/2
41
7739
LOCKNUT, 5/16-18 X 11/32 X 1/2 hex.
43
7800W
NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
44
7845
HEX NUT, 1/2-20 X 3/4
45
23985-18
KEY, rear footrest
47
50921-83
STUD, rear footrest
48
50939-52
FOOTREST W/COVER, rear footrest
49
50940-52
COVER, rear footrest (rubber)
50
50939-52
FOOTREST ASSEMBLY (steel)
51
50973-65
STUD, rear footrest
52
52700-81
SUPPORT, rear footrest
