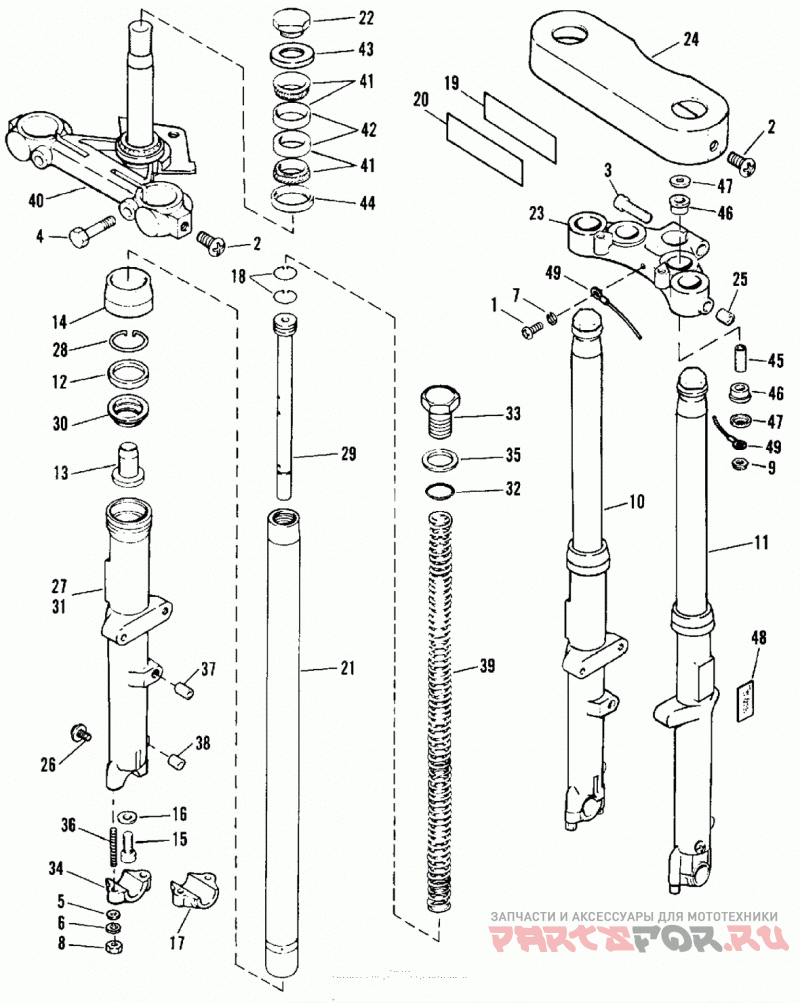

FRONT FORK - FXR, FXRS

Harley Davidson FXRS EBKD FXR Low Glide (1983)

Harley Davidson
#oem кодцена
1
2661W
Винт
2
2823
SCREW, 5/16-24 X 3/8 Pozidriv truss hd. (w/lockwasher)(Grade 2 steel)
3
4371WA
Болт
4
4724
BOLT, 3/8-24 X 1-1/2 hex. hd.(Grade 5 steel)
5
6702
WASHER, 5/16 X 11/16 X 1/16
6
7041
LOCKWASHER, 5/16
7
7220
LOCKWASHER, No. 10 external tooth
8
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
9
7768W
LOCKNUT, 1/2-13 X 19/32 X 3/4 hex.
10
45398-80
FORK SLIDER AND TUBE ASSEMBLY - right
11
45399-80
FORK SLIDER AND TUBE ASSEMBLY - left
12
45400-75
OIL SEAL, slider
13
45402-75
LOWER STOP
14
45404-75
DUST COVER
15
45405-75A
SCREW WITH WASHER, damper tube
17
45410-75
AXLE CAP, left slider
18
45412-75
RING, damper tube
20
45429-82
NAMEPLATE in.FXRSin..
21
45644-77
SLIDER TUBE
22
45718-71
NUT, fork stem
23
45736-78B
Крепление верхнее
24
45751-71TA
FRONT FORK COVER
25
45782-72A
SCREW INSERT
26
45790-80
DRAIN SCREW, slider
27
45906-80
SLIDER, right
28
45908-80
RETAINING RING, oil seal
29
45910-80
DAMPER TUBE
30
45911-80
SPACER, seal
31
45912-80
SLIDER, left
32
45982-73
O-RING, slider tube cap
33
45993-73
CAP, slider tube
34
45994-77
AXLE CAP, right slider
35
45997-73
WASHER, slider tube cap
36
45998-73
Шпилька
37
46018-77
BUSHING, brake caliper - upper
38
46019-77
BUSHING, brake caliper - lower
39
46052-80
Пружина
40
47693-81
BRACKET, lower - w/bearing and shield
41
48300-60
ROLLER BEARING, w/cup
42
48315-60
BEARING CUP
43
48361-80
DUST SHIELD, head bearing - upper
44
48365-48A
DUST SHIELD, head bearing - lower
45
56153-73
Проставка
46
56158-73
Втулка
47
56159-73
CUPWASHER
48
59254-91
(HDI Only) REFLECTOR (amber)
49
70191-73A
Провод
