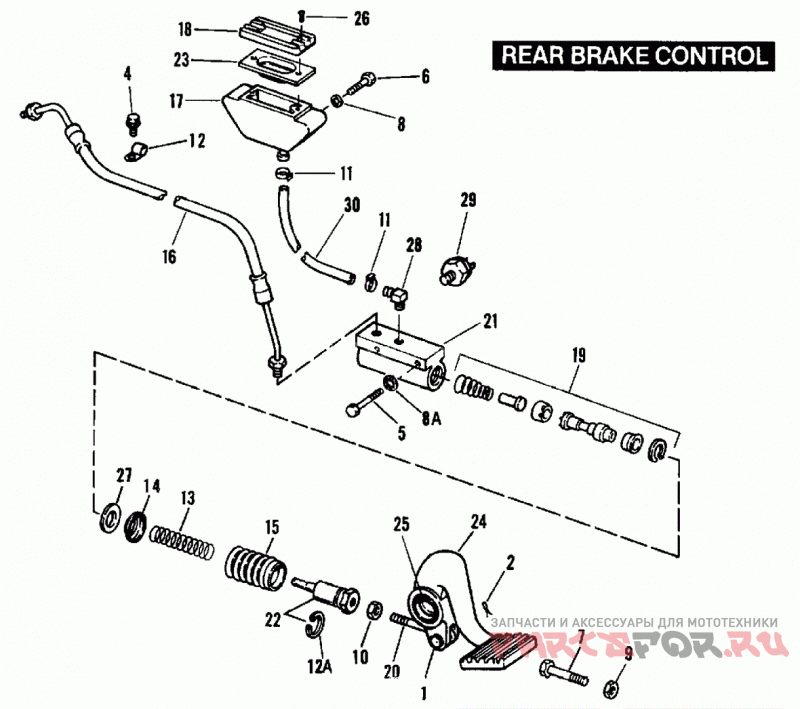

CLEVIS PIN

Шплинт

Винт

SCREW, 5/16-18 X 1-3/4 hex cap (grade 5)

BOLT, No. 10-32 X 1/2 hex. washer hd. Grade 2 steel)

BOLT, 1/4-20 X 7/8 hex. hd. (Grade 5 steel)

WASHER, No. 10 X 1/2 X 3/64

LOCKWASHER, 5/16 internal tooth

Гайка

JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel)

Зажим

RETAINING RING (Late 82 to * - FXR, FXRS, FXRT)

Пружина

WASHER, brake return spring

BOOT, master cylinder

HOSE, rear brake

RESERVOIR, master cylinder

COVER, reservoir

PISTON REBUILD KIT

ROD END

MASTER CYLINDER W/SDPLT

PLUNGER, brake, with retaining ring

GASKET, master cylinder

BRAKE PEDAL ASSEMBLY, w/#`s 1, 2, 20 & 25

BUSHING, brake lever

Винт

WASHER, brake return spring

FITTING, reservoir hose

SWITCH KIT stop lamp

HOSE, 3/8 I.D. x 5/8 O.D. fabric reinforced rubber (25 ft. lg.). | NOTE: Hose is sold in bulk length. Cut to required length.
