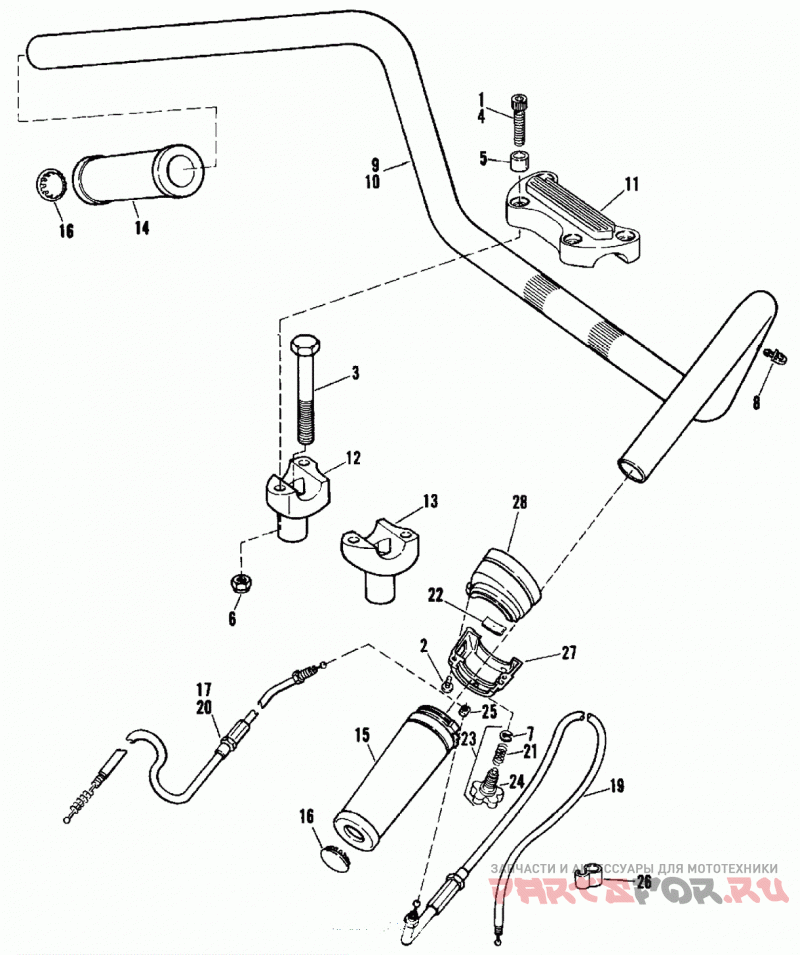

HANDLEBAR AND THROTTLE CONTROL

Harley Davidson FXR EAKD FXR Super Glide (1983)

Harley Davidson
#oem кодцена
2
2508
SCREW, No. 10-32 X 1/2 socket rd.hd. (black)
3
3778
Винт
4
4816A
SCREW, 5/16-18 X 1-1/2 socket hd.
6
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
7
11115
RETAINING RING, adjusting screw (Late 83 to * - FXR, FXRS, FXRT)
8
56070-81
Седло
9
56081-82A
Руль
11
56115-79B
CLAMP, upper
12
56116-77A
CLAMP, handlebar - lower left 79 to 83 - All Models except FXWG; 82 - FXB
13
56117-77A
CLAMP, handlebar - right
14
56206-94A
GRIP left
15
56220-94A
GRIP & SLEEVE, throttle - right
17
56323-81C
CONTROL, idle
19
56324-81C
CONTROL, throttle
21
56394-74
SPRING, adjusting screw
22
56396-74A
FRICTION SPRING, throttle grip
23
56397-74C
ADJUSTING SCREW KIT
24
56402-83A
ADJUSTING SCREW (Late 83 to * - FXR, FXRS, FXRT)
25
56508-76
FERRULE, control wire
26
70504-81
CLIP, conduit
27
71563-82A
HOUSING, switch - lower
28
71564-82A
HOUSING, switch - upper
