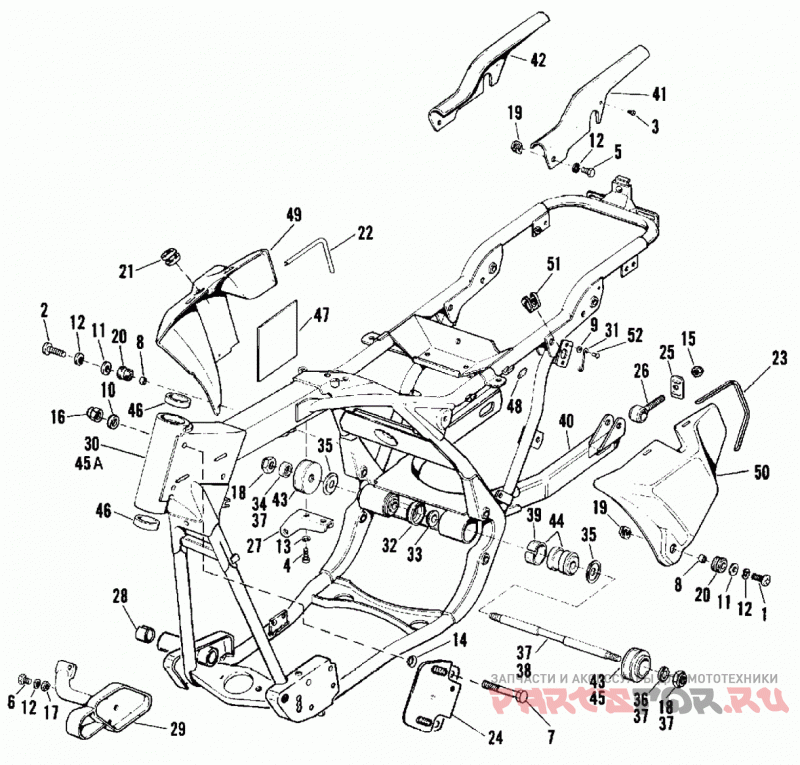

FRAME AND REAR FORK

Harley Davidson FLHTC DDKD Touring Electra Glide Classic (1983)

Harley Davidson
#oem кодцена
1
2708A
SCREW, 5/16-18 X 1 socket hd.
2
2582
Винт
3
2662W
Винт
5
2882W
BOLT, 5/16-18 X 5/8 hex. hd. (Grade 5 steel)
6
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)
7
4435W
BOLT, 3/8-24 X 3-1/2 hex. hd.(Grade 5 steel)
8
5965B
SPACER, side cover
9
6335
WASHER, #4 X 5/16 X 1/32
10
6701
WASHER, 3/8 X 13/16 X 1/16
11
6702
WASHER, 5/16 X 11/16 X 1/16
12
7041
LOCKWASHER, 5/16
14
7130W
LOCKWASHER, 3/8 internal tooth
15
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex.
16
7775
LOCKNUT, 3/8-24 X 7/16 X 9/16 hex.
17
7800W
NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
18
7825
LOCKNUT, 7/16-20 X 7/16 X 5/8 hex.
19
9959
CLIP NUT
20
11412
GROMMET, sidecover
21
11436
GROMMET, right cover
24
32451-83
BRACKET, ignition module
25
41112-79
END COVER, rear fork
26
41570-77
ADJUSTER, rear axle
28
47247-83
BUSHING, hub foot brake
30
47313-82
FRAME, with steering head cups
32
47510-80
PLASTIC RETAINER RING
33
47511-80
Проставка
34
47512-82
SPACER, pivot shaft - right
35
47513-80
NYLON WASHER
36
47514-80
SPACER, pivot shaft - left
38
47515-82A
PIVOT SHAFT, rear fork
39
47538-79
TOLERANCE RING, bushing
40
47544-79
REAR FORK
41
47551-79B
COVER, left w/ #1 & 20
42
47552-79B
COVER, right w/ #1 & 20
44
47556-81
BUSHING ASSEMBLY, with 47538-79
45
47553-79A
RUBBER MOUNT, rear fork
45A
47900-83D
FRAME, with steering head cups
46
48315-60
BEARING CUP
48
66029-80
RUBBER MOUNT, side cover
50
66303-81
SIDE COVER, left (black) N/A
51
70908-82
CLIP NUT
52
90965-63
RIVET, 5/16in. long
