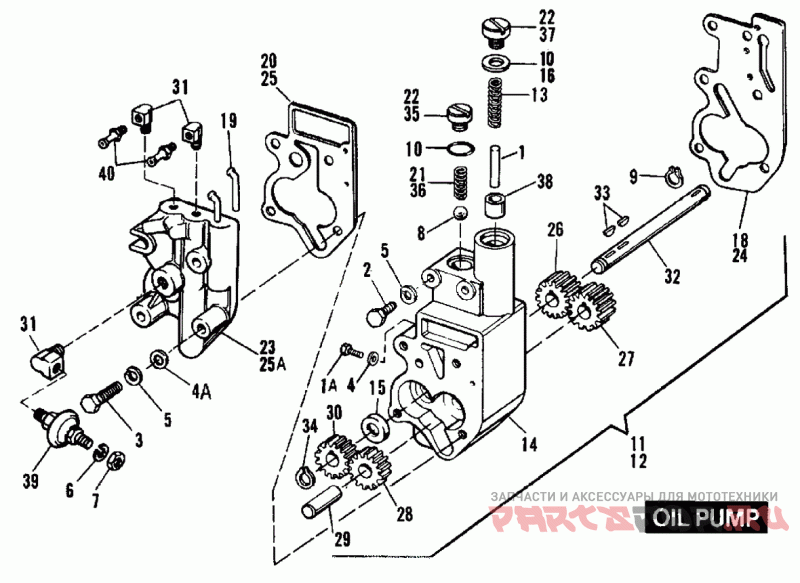

Масляный насос

Harley Davidson FLHTC DDKD Touring Electra Glide Classic (1983)

Harley Davidson
#oem кодцена
1A
700
Деталь PLUG, oil pump body
2
2872W
Деталь SCREW, 1/4-20 X 1-1/2 hex cap (grade 5)
3
3429
Болт
4
6377
Шайба
4A
6703
Деталь WASHER, 1/4 X 5/8 X 1 /16
5
7036
Деталь LOCKWASHER, 1/4
6
7069
Деталь LOCKWASHER, No. 10
7
7634
Деталь NUT, No. 10-32 X 5/16 hex. (brass)
8
8873
Деталь BALL, check valve, 3/8 dia
9
11002
Деталь RETAINING RING, oil pump
10
11105
Деталь O-RING, valve cover screw (2-1981 & later)
11
26190-73
Деталь OIL PUMP KIT, with gaskets and retaining ring
13
26207-83
Деталь SPRING, relief valve
15
26227-58
Деталь OILSEAL
21
26262-80
Деталь SPRING, check valve
22
26263-80
Деталь COVER SCREW, check valve and relief valve
23
26242-84
Крышка масляного насоса
24
26273-80B
Деталь GASKET, oil pump body (paper) (Late 80 to 83 - FLT, FLHT, Classics)
25
26276-80A
Деталь GASKET, oil pump cover (paper) (Late 80 to 83 - FLT, FLHT, Classics)
26
26315-68A
Деталь DRIVE GEAR
27
26317-68A
Деталь IDLER GEAR
28
26326-62A
Деталь DRIVE IDLER GEAR
29
26327-68
Деталь IDLER SHAFT
30
26328-74
Деталь DRIVE GEAR
31
26338-68A
Деталь 90° ANGLE; THREAD SIZE - .125 - 27 NPT MALE & FEMALE ; NONE; .239 I.D.
32
26346-70
Деталь DRIVE SHAFT
33
26348-15
Деталь KEY, drive shaft
34
26348-36
Деталь RETAINING RING, drive shaft
38
26400-82B
Деталь RELIEF VALVE, oil pump
39
26552-72
Датчик давления масла
40
63533-41A
Фитинг
