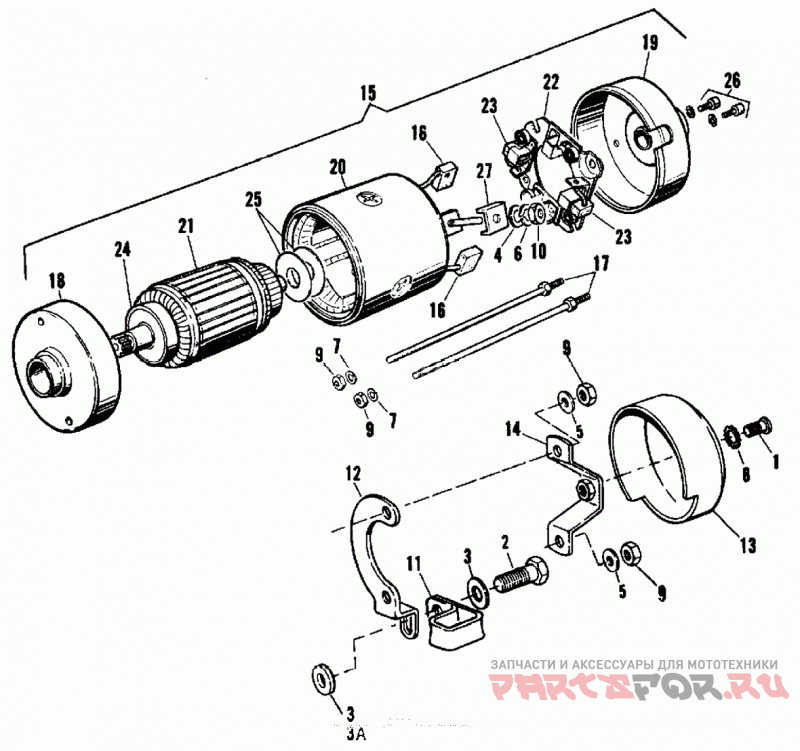

STARTER MOTOR - LATE 1983 AND LATER

Harley Davidson FLHT DCKD Touring Electra Glide Standard (1983)

Harley Davidson
#oem кодцена
1
2682
Деталь SCREW | (Late 83 to * - FLT, FLHT, Classics)
2
4017
Деталь BOLT, 5/16-18 X 1 hex. hd.(Grade 5 steel)
3
6016
Деталь WASHER, 11/32 X 11/16 X 1/16
3A
6701
Деталь WASHER, 3/8 X 13/16 X 1/16
4
6703
Деталь WASHER, 1/4 X 5/8 X 1 /16
5
6716
Деталь WASHER, No. 10 X 1/2 X 3/64
6
7036
Деталь LOCKWASHER, 1/4
7
7069
Деталь LOCKWASHER, No. 10
8
7220
Деталь LOCKWASHER, No. 10 external tooth
9
7620W
Деталь NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel)
10
7688
Деталь NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)
11
10044
Деталь GUIDE, oil hoses | (Late 83 to * - FLT, FLHT, Classics)
12
31479-83
Деталь BRACKET, starter mounting | (Late 83 to * - FLT, FLHT, Classics)
13
31524-80
Деталь COVER, starter motor (chrome) | (Late 83 to * - FLT, FLHT, Classics)
14
31564-83
Деталь BRACKET, end cover | (Late 83 to * - FLT, FLHT, Classics)
15
31570-73T
Деталь STARTER MOTOR, BLACK | (Late 83 to * - FLT, FLHT, Classics)
16
31575-73T
Деталь FIELD COIL BRUSH, PAIR | (Late 83 to * - FLT, FLHT, Classics)
17
31576-73T
Деталь THRU BOLT, PAIR | (Late 83 to * - FLT, FLHT, Classics)
18
31577-73
Деталь COVER, drive end | (Late 83 to * - FLT, FLHT, Classics)
19
31578-73
Деталь COVER, commutator end - with bushing | (Late 83 to * - FLT, FLHT, Classics)
20
31579-73
Деталь FRAME AND FIELD COILS, with 2 brushes | (Late 83 to * - FLT, FLHT, Classics)
21
31580-73T
Деталь ARMATURE W/BEARING | (Late 83 to * - FLT, FLHT, Classics)
22
31581-73
Деталь BRUSH HOLDER, with 4 springs and 2 brushes | (Late 83 to * - FLT, FLHT, Classics)
23
31582-73T
Деталь STARTER BRUSH PAIR, GROUND | (Late 83 to * - FLT, FLHT, Classics)
24
31583-73
Деталь BALL BEARING, armature drive end | (Late 83 to * - FLT, FLHT, Classics)
25
31584-73
Деталь SET OF THRUST WASHERS, armature commutator end | (Late 83 to * - FLT, FLHT, Classics)
26
31585-73
Деталь SCREW, with lockwasher | (Late 83 to * - FLT, FLHT, Classics)
27
31586-73
Деталь INSULATOR, terminal | (Late 83 to * - FLT, FLHT, Classics)
