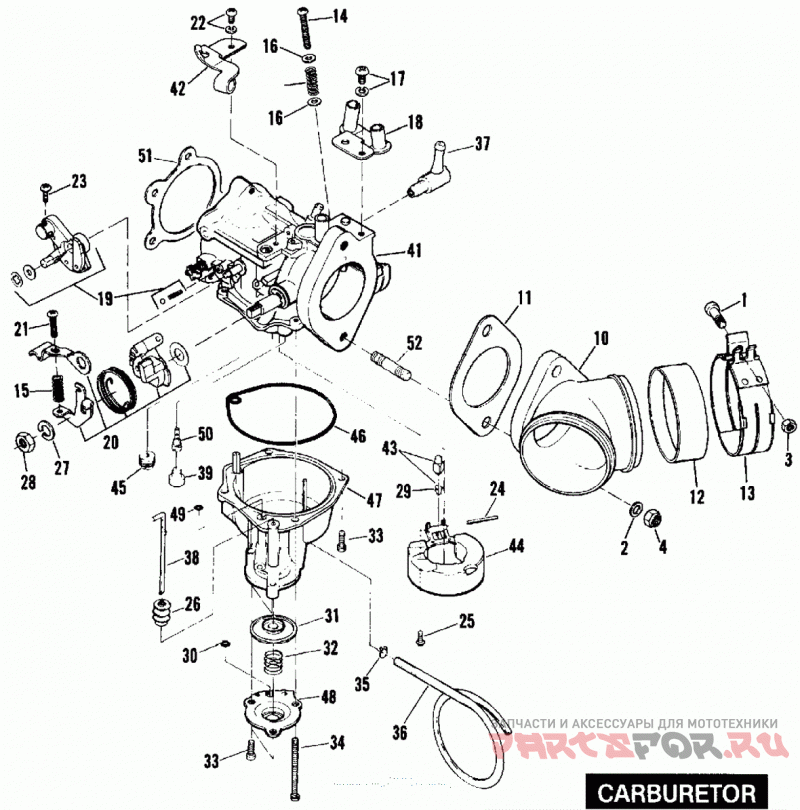

CARBURETOR - 1981 & 1982

Harley Davidson XLH CAHC Sportster 1000 (1982)

Harley Davidson
#oem кодцена
1
930
SCREW, No. 10-24 x 1-1/4 Pozidriv fil. hd.
2
6702
WASHER, 5/16 X 11/16 X 1/16
3
7620W
NUT, No. 10-24 X 1/8 X 3/8 hex.(Grade 2 steel)
4
7739
LOCKNUT, 5/16-18 X 11/32 X 1/2 hex.
10
27021-78
INTAKE MANIFOLD
11
27077-78
GASKET, spacer Early 78 - All Models
12
27062-78
SEAL, intake manifold clamp
13
27063-80
CLAMP, intake manifold - with screw & nut
27087-80
MAIN JET, 1.50 mm (use w/B83G carb.) (Late 82 - XL, XLS)
14
27130-81
Винт
15
27136-81
SPRING, throttle stop screw & fast idle screw
16
27137-81
WASHER, throttle stop screw
17
27139-81
SCREW WITH WASHER, throttle cable bracket
18
27141-81
BRACKET, throttle cable
19
27142-81
CHOKE LEVER KIT
20
27143-81
LEVER KIT, accelerator pump
21
27145-81
SCREW, fast idle
22
27304-76
SCREW WITH WASHER, choke cable bracket
23
27307-76
SCREW, wire block
24
27308-76
Палец
25
27309-76
SCREW, float pin
26
27311-76
RUBBER CAP, accelerator pump
27
27333-76
LOCKWASHER, throttle lever
28
27335-76
NUT, throttle lever
29
27338-76
CLIP, float valve
30
27360-76
Уплотнительное кольцо
31
27361-76A
Диафрагмма
32
27362-76
Пружина
33
27366-76
Винт
34
27367-76
Винт
35
27368-76
CLIP, overflow hose
36
27369-76
HOSE, overflow
37
27371-76A
Фитинг
38
27373-76
ROD, accelerator pump
39
27385-76
PLUG, low speed jet
41
27469-81A
CARBURETOR (B83F) (81 to Early 82 - XL, XLS)
41
27469-82
CARBURETOR (B83G) N/A (Late 82 - XL, XLS)
42
27882-78
BRACKET, choke cable
43
27886-78A
VALVE, with clip
44
27887-78
Поплавок
45
27888-78
MAIN JET, 1.60 mm. (std.)
46
27889-78
O-RING, bowl
47
27890-78
BOWL (B78A)
48
27891-80
HOUSING, accelerator pump
49
27892-78
Уплотнительное кольцо
50
27894-78
LOW SPEED JET, 0.68 mm
51
29058-77
GASKET, air cleaner to carburetor
52
29254-78
STUD, 5/16-18 x 1-1/4 N/A
