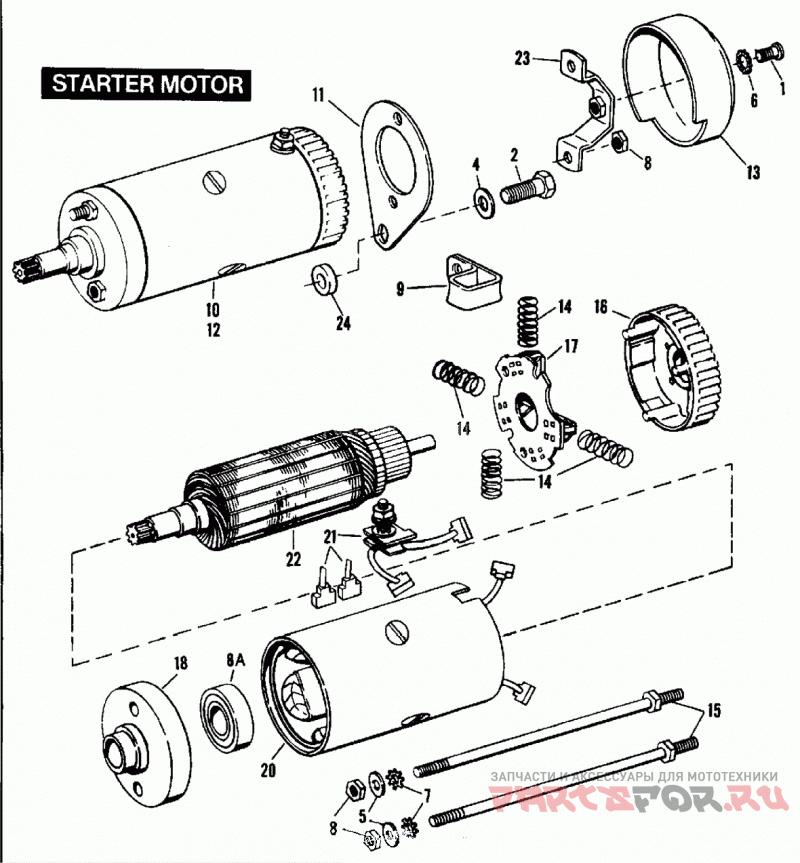

STARTER MOTOR - 1982 & EARLY 1983

Harley Davidson FXR EAKC FXR Super Glide (1982)

Harley Davidson
#oem кодцена
1
2682
Деталь SCREW (82 & Early 83 - FXR, FXRS)
2
4017
Деталь BOLT, 5/16-18 X 1 hex. hd.(Grade 5 steel)
4
6016
Деталь WASHER, 11/32 X 11/16 X 1/16
5
6703
Деталь WASHER, 1/4 X 5/8 X 1 /16
6
7220
Деталь LOCKWASHER, No. 10 external tooth
7
7230
Деталь LOCKWASHER, 1/4 external tooth
8
7676
Деталь NUT (82 & Early 83 - FXR, FXRS)
8A
9073
Деталь BALL BEARING, drive end (82 & Early 83 - FXR, FXRS)
9
10044
Деталь CLAMP, oil hose (82 & Early 83 - FXR, FXRS)
10
31458-66TA
Деталь STARTER MOTOR, BLACK
10
31459-84
Деталь STARTER MOTOR KIT (Hitachi) (82 & Early 83 - FXR, FXRS)
11
31479-79
Деталь BRACKET, starter mounting (82 & Early 83 - FXR, FXRS)
13
31524-80
Деталь END COVER, starter motor (82 & Early 83 - FXR, FXRS)
14
31534-66
Деталь SET OF BRUSH SPRINGS (82 & Early 83 - FXR, FXRS)
15
31535-66
Деталь SET OF THRU - BOLTS N/A (82 & Early 83 - FXR, FXRS)
16
31536-66
Деталь COVER ASSEMBLY, commutator end N/A (82 & Early 83 - FXR, FXRS)
17
31537-66
Деталь BRUSH PLATE AND HOLDER ASSEMBLY N/A (82 & Early 83 - FXR, FXRS)
18
31538-66
Деталь COVER ASSEMBLY, drive end (82 & Early 83 - FXR, FXRS)
20
31540-66
Деталь FRAME AND FIELD COILS, assembled N/A (82 & Early 83 - FXR, FXRS)
21
31541-66T
Щеточный комплект
22
31542-66T
Деталь ARMATURE
24
52103-31
Деталь SPACER (82 & Early 83 - FXR, FXRS)
