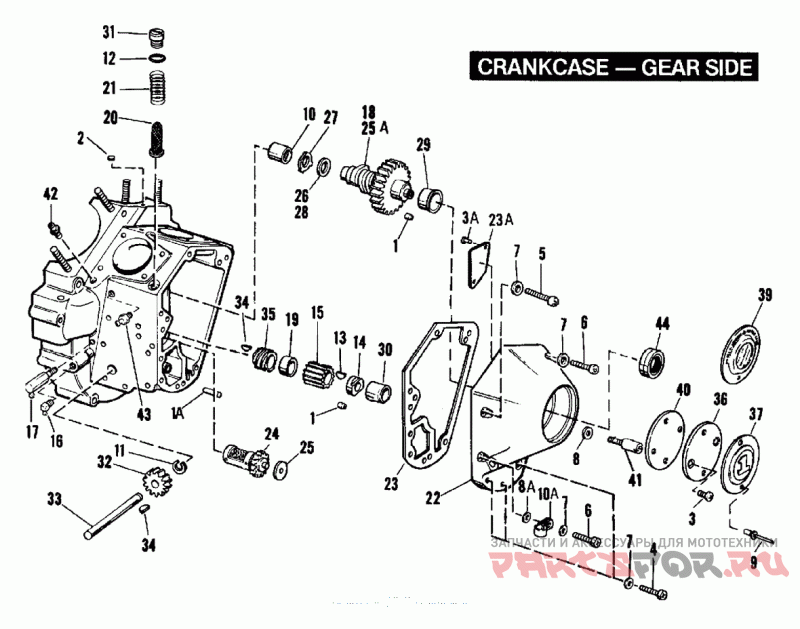

CRANKCASE - GEARSIDE

Harley Davidson FXR EAKC FXR Super Glide (1982)

Harley Davidson
#oem кодцена
1
275
Деталь DOWEL PIN (2 - as required)
1A
358
Палец
2
653
Деталь PLUG, crankcase
3
1601
Деталь SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel)
3A
2441
Деталь SCREW No. 10-24 X 1/2 TORX pan hd.
4
4718A
Деталь SCREW, 1/4-20 X 1-1/2 knurled socket hd. w/ washer (w/lockpatch)
5
3480A
Деталь SCREW, 1/4-20 X 1-3/4 knurled socket hd. (Grade 8 steel)
6
4813A
Деталь SCREW, 1/4-20 X 1-3/8 knurled socket hd. (w/lockpatch)
7
6099
Деталь WASHER, 1/4 X 7/16 X 1/16
8
6192
Деталь WASHER, No. 8 X 7/16 X 3/64
8A
6242W
Шайба
9
8699
Деталь RIVET, ignition cover
10
9058A
Деталь NEEDLE BEARING crankcase cam cover
10A
10046
Зажим
11
11002
Деталь RETAINING RING, oil pump drive shaft
12
11105
Уплотнительное кольцо
13
23985-54
Деталь KEY, gear shaft
14
24023-54
Деталь NUT, gear shaft
15
24040-78
Деталь PINION GEAR, 1.4751 - 56 pitch dia. (orange)
15
24041-78
Деталь PINION GEAR, 1.4745 - 51 pitch dia. (white)
15
24042-78
Деталь PINION GEAR, 1.4737 - 45 pitch dia. (yellow)
15
24043-78
Деталь PINION GEAR, 1.4729 - 37 pitch dia. (red)
15
24044-78
Деталь PINION GEAR, 1.4721 - 29 pitch dia. (blue)
15
24045-78
Деталь PINION GEAR, 1.4715 - 21 pitch dia. (green)
15
24046-78
Деталь PINION GEAR, 1.4710 - 15 pitch dia. (black)
16
16304-87
Деталь FITTING, 90 degree
17
63533-41A
Фитинг
18
24582-77A
Деталь CAM AND PINION GEAR SET
19
24703-54B
Деталь SPACER, gear shaft pinion
20
24981-70
Деталь OIL SCREEN, crankcase
21
24982-70
Деталь SPRING, oil screen
22
25258-80B
Деталь GEAR COVER
23
25225-70C
Деталь GASKET gear cover
23A
25275-82
Деталь PLATE (Late 82 - FXR, FXRS, FXRT)
24
25310-82A
Деталь BREATHER VALVE GEAR
25
25320-82
Деталь THRUST WASHER breather valve - 0.130 thick (plastic)
25
25321-82
Деталь THRUST WASHER breather valve - 0.135 thick (plastic)
25
25322-82
Деталь THRUST WASHER breather valve - 0.140 thick (plastic)
25
25323-82
Деталь THRUST WASHER breather valve - 0.145 thick (plastic)
25
25325-82
Деталь THRUST WASHER breather valve - 0.150 thick (plastic)
25
25326-82
Деталь THRUST WASHER breather valve - 0.155 thick (plastic)
25
25327-82
Деталь THRUST WASHER breather valve - 0.160 thick (plastic)
25
25328-82
Деталь THRUST WASHER breather valve - 0.165 thick (plastic)
25A
24582-77A
Деталь Cam Gear - Late 77 to 84 Big Twins
26
25550-36
Деталь THRUST WASHER, cam gear - 0.050 thick
27
25550-57A
Деталь THRUST WASHER, cam gear
28
25551-36
Деталь THRUST WASHER, cam gear - 0.055 thick
28
25552-36
Деталь THRUST WASHER, cam gear - 0.060 thick
28
25553-36
Деталь THRUST WASHER, cam gear - 0.065 thick
28
25554-36
Деталь THRUST WASHER, cam gear - 0.070 thick
28
25555-36
Деталь THRUST WASHER, cam gear - 0.075 thick
28
25556-79
Деталь THRUST WASHER, cam gear - 0.080 thick
28
25557-79
Деталь THRUST WASHER, cam gear - 0.085 thick
28
25558-79
Деталь THRUST WASHER, cam gear - 0.090 thick
28
25559-79
Деталь THRUST WASHER, cam gear - 0.095 thick
29
25581-70
Деталь BUSHING, gear cover
30
25582-73
Деталь BUSHING, gear cover pinion shaft
31
26263-80
Пробка
32
26345-73
Деталь DRIVE GEAR, oil pump - 24 T
33
26346-70
Деталь DRIVE SHAFT, oil pump
34
26348-15
Деталь KEY, oil pump gears
35
26349-73A
Деталь DRIVE GEAR, oil pump
36
32504-80A
Деталь COVER inner
37
32511-78
Деталь TIMER COVER
40
32591-80
Деталь GASKET, ignition cover
41
32606-82
Винт
42
62484-81
Деталь Oil line fitting, rocker arm cover-front - 81 to 84 FLH-80, Classic, FX
43
63533-41A
Фитинг
44
83162-51
Деталь OIL SEAL, bearing
