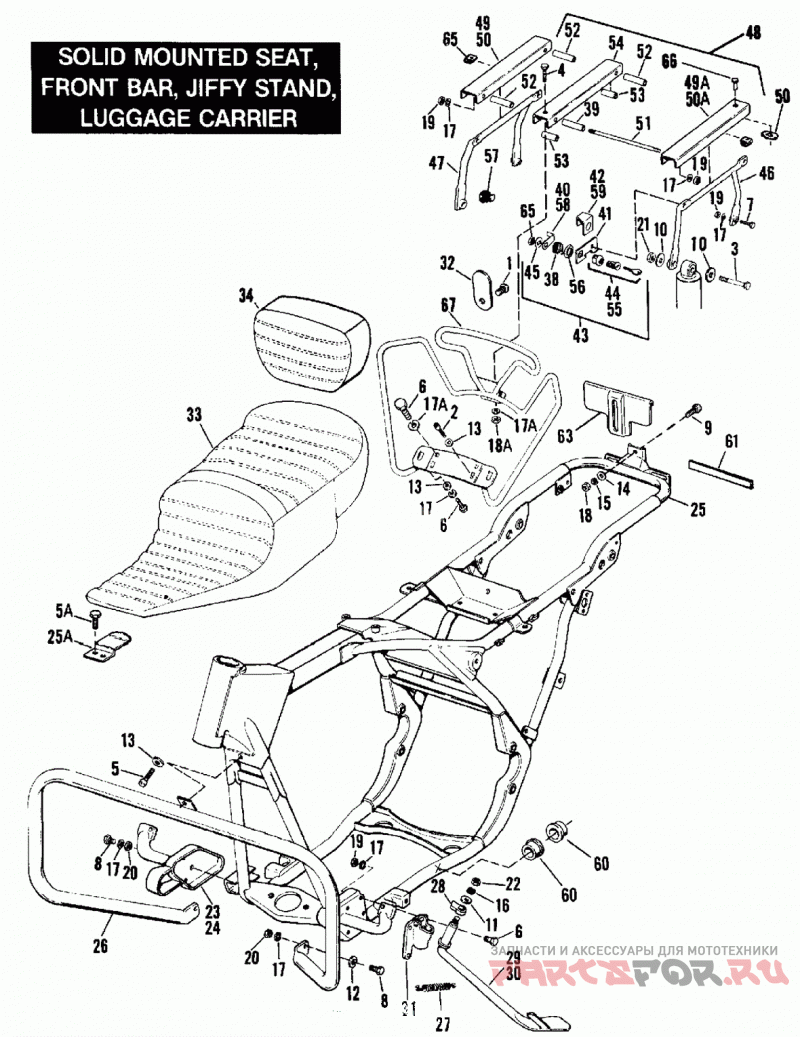

SOLID SEAT, ENGINE GUARD, JIFFY STAND, LUGGAGE CARRIER

Harley Davidson FLT AEKD Touring Tour Glide (1981)

Harley Davidson
#oem кодцена
1
856A
SCREW, 5/16-24 X 1 hex socket hd. cap (gr. 8)
2
2607
SCREW, 1/4-20 X 3/4 mach pan head (grade 2)
3
2698A
SCREW, 5/16-18 X 9/16 socketfillis. hd.
4
3950
Болт
5
4391
BOLT, 5/16-24 X 5/8 hex. hd. (Grade 5 steel)
6
3974HW
BOLT, 5/16-24 X 3/4 hex. hd.(Grade 5 steel)
7
4036
BOLT, 5/16-24 X 1-1/2 hex. hd.(Grade 5 steel)
8
4337W
SCREW,3/8-24 X 1-1/4 hex cap (grade 5)
9
5403B
CARRIAGE BOLT, 1/4-20 X 3/8
10
6012
WASHER, 1/2 X 1-3/16 X 1/16
11
6334
WASHER, 7/16 X 29/32 X 1/16
12
6701
WASHER, 3/8 X 13/16 X 1/16
13
6702
WASHER, 5/16 X 11/16 X 1/16
14
6703
WASHER, 1/4 X 5/8 X 1 /16
15
7036
LOCKWASHER, 1/4
16
7039
LOCKWASHER, 7/16
17
7041
LOCKWASHER, 5/16
17A
7127
LOCKWASHER, 5/16 internal tooth
18
7689W
Гайка
18A
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex.
19
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
20
7800W
NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
21
7741
LOCKNUT
22
7837W
Гайка
23
47251-79
BRACKET, engine guard
25
47349-83A
REAR FRAME SECTION, w/license plate bracket
26
49184-88A
ENGINE GUARD KIT w/ 2
27
50011-30A
SPRING, jiffy stand
28
50015-74A
LEG STOP
29
50074-79A
JIFFY STAND ASSEMBLY
30
50074-79A
JIFFY STAND ASSEMBLY
31
50078-79
BRACKET, jiffy stand leg (80 to Early 81 - FLT, Classic)
31
50078-81B
BRACKET jiffy stand leg
32
52114-79
SUPPORT BRACKET, backrest
33
52151-79B
SEAT, solid mounted (black vinyl) N/A
33
52151-80B
SEAT, solid mounted (saddle brown vinyl)
34
52567-77
BACKREST (black vinyl) (4 double horiz. stitches) N/A
34
52617-80
BACKREST (saddle brown vinyl) (5 horizontal stitches)N/A
39
53294-77
SPACER, left front
40
53295-77
LOCKING EAR, luggage box to carrier N/A
43
53298-77A
LOCK ASSEMBLY
44
53307-69
LOCK, with key and nuts
45
53331-69
WASHER, locking ear
46
53365-79
BRACE, left
47
53366-79
BRACE, right
50A
53469-87
LUGGAGE RACK CHANNEL- OUTER
51
53454-52
CROSS STUD
53
53456-52
SPACER (short)
54
53492-79
CENTER CHANNEL
60
56158-73
Резиновая Втулка
61
59988-72A
Отражатель Красный
63
59998-82
CLAMP, license plate bracket (painted)
67
91582-79
HANDRAIL, solid mounted seat
