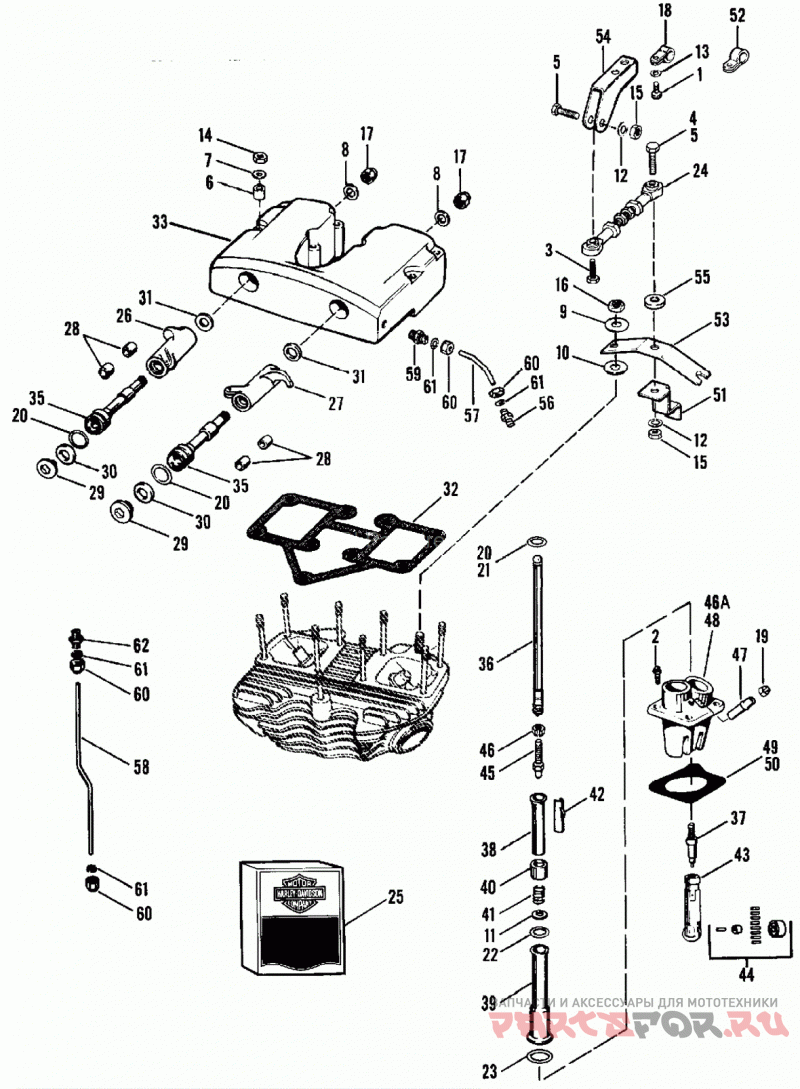

ROCKER ARMS, COVER & PUSH RODS

Harley Davidson FLT AEKD Touring Tour Glide (1981)

Harley Davidson
#oem кодцена
1
2698A
SCREW, 5/16-18 X 9/16 socketfillis. hd.
2
3770
SCREW, 1/4-20 X 7/8 12 pt. hd.(Grade 5 steel)
3
4337W
SCREW,3/8-24 X 1-1/4 hex cap (grade 5)
4
4411
BOLT, 3/8-24 X 1-3/4 hex. hd.(Grade 5 steel)
5
4724
BOLT, 3/8-24 X 1-1/2 hex. hd.(Grade 5 steel)
8
6466W
Шайба
9
6495HW
Шайба
10
6516HW
WASHER, 7/16 X 1-1/8 X 1/8
11
6762B
WASHER, 11/16 X 29/32 X 1/32
12
7038
LOCKWASHER, 3/8
13
7042
LOCKWASHER, 5/16 (high collar)
14
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
15
7800W
NUT, 3/8-24 X 5/16 X 9/16 hex.(Grade 2 steel)
16
7837W
LOCKNUT
17
7873
ACORN NUT (chrome)
18
9990W
Зажим
19
10014
CLAMP, 1/2 in. O.D hose (Late 81 & Early 82 - FLT, Classic)
20
11101
O-RING (4; 2 - late 1981 & later)
21
11118
QUAD SEAL, push rod cover - upper (Late 81 to 83 - FLT, FLHT, Classics)
22
11132A
O-RING, push rod cover
23
11133A
O-RING, push rod cover - lower
24
16219-79C
STABILIZER LINK top
25
17034-48B
Gasket Sets-top overhaul - 71 to 84 FX
26
17360-66A
ROCKER ARM, rear exhaust and front intake
27
17375-66A
ROCKER ARM, front exhaust and rear intake
28
17429-91
BEARING rocker arm
29
17448-71A
SCREW, rocker arm shaft end
30
17450-73
SHIM (2 or less to prevent o-ring deformation)
31
17452-66
SPACER, rocker arm
32
17540-69A
GASKET, rocker arm cover
33
17550-80
ROCKER ARM COVER, rear
34
17552-80
ROCKER ARM COVER, front
35
17611-66B
Вал
36
17904-66
PUSH ROD ASSEMBLY
37
17920-53A
PUSH ROD, hydraulic unit
38
17935-79B
COVER, push rod - upper
39
17938-79
COVER, push rod - lower
40
17945-36B
CAP, cover spring
41
17947-36
SPRING, push rod cover
42
17950-66
RETAINER, spring cap
43
18534-29A
TAPPET ROLLER KIT
44
18534-29A
KIT, tappet roller
45
18556-57
TAPPET ADJUSTING SCREW, with nut
46
18570-38
NUT, tappet adjusting screw
46A
18603-80A
Tappet Guide, front cylinder - Late 76 to 84 Big Twins
46A
18602-80A
TAPPET GUIDE, rear cylinder (80 & Early 81 - FLT, Classic)
47
18599-81
FITTING, tappet guide (Late 81 & Early 82 - FLT, Classic)
48
18602-80A
TAPPET GUIDE, rear cylinder (80 & Early 81 - FLT, Classic)
48
18603-80A
TAPPET GUIDE, front cylinder (80 & Early 81 - FLT, Classic)
49
18633-48D
GASKET, tappet guide - rear
50
18634-48C
GASKET, tappet guide - front
51
29227-79
BRACKET, choke cable
52
42327-70
Зажим
53
47169-79
BRACKET, engine mounting - upper
54
47213-79
BRACKET, engine mounting - upper (80 to Early 81 - FLT, Classic)
55
50517-80
SPACER N/A (Late 81 to 83 - FLT, FLHT, Classics)
56
62484-81
OIL LINE FITTING, rocker arm cover
57
62783-66A
OIL LINE TUBE, top cover cross-over (chrome)
58
62785-66A
OIL LINE TUBE, crank case to top cover (chrome)
59
62484-81
Oil line fitting, rocker arm cover-front - 81 to 84 FLH-80, Classic, FX
60
63527-57A
NUT, oil line
61
63529-57
SLEEVE, oil line
