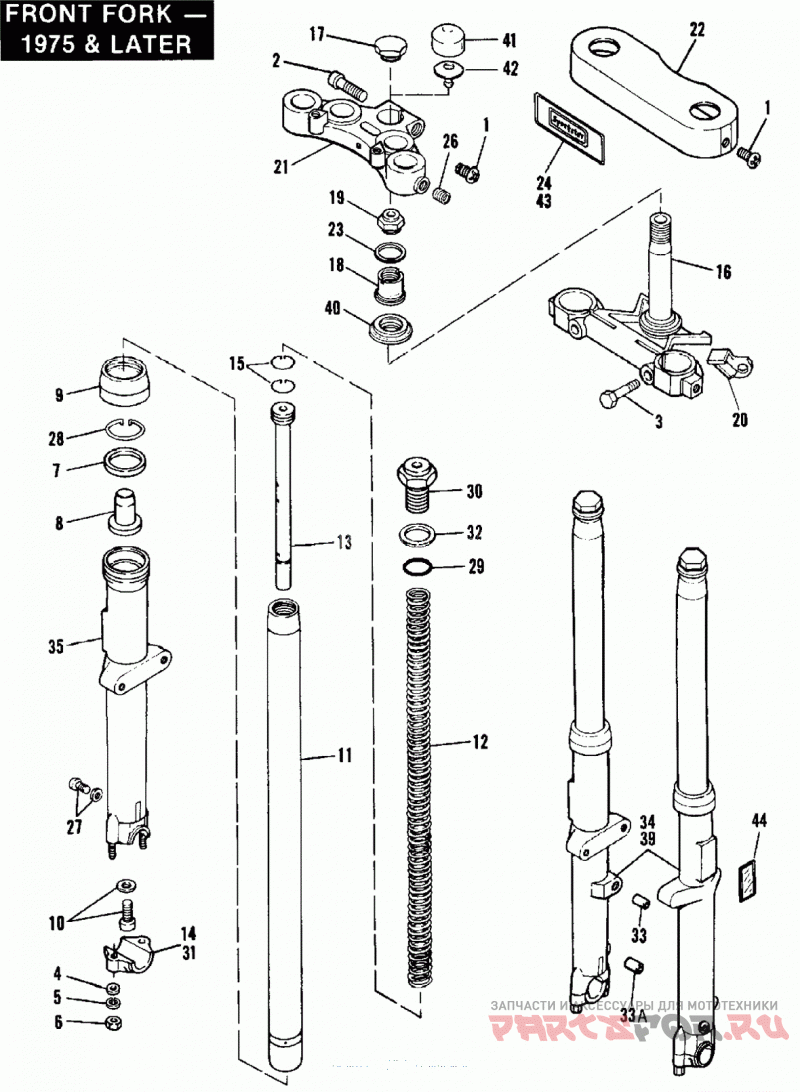

FRONT FORK - 1975 & LATER (SHOWA)

Harley Davidson XLT-1000 2GJ0 Sportster 1000 (1980)

Harley Davidson
#oem кодцена
1
2823
SCREW, 5/16-24 X 3/8 Pozidriv truss hd. (w/lockwasher)(Grade 2 steel)
2
4371WA
Болт
3
4411
BOLT, 3/8-24 X 1-3/4 hex. hd.(Grade 5 steel)
4
6702
WASHER, 5/16 X 11/16 X 1/16
5
7041
LOCKWASHER, 5/16
6
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
7
45400-75
OIL SEAL, slider 75 to * - XLH, XLCH
8
45402-75
LOWER STOP 75 to * - XLH, XLCH
9
45404-75
DUST COVER 75 to * - XLH, XLCH
10
45405-75A
SCREW & WASHER, damper tube 75 to * - XLH, XLCH
11
45407-75
SLIDER TUBE 75 to * - XLH, XLCH
12
45408-75
SPRING 75 to * - XLH, XLCH
13
45409-75
DAMPER TUBE, complete 75 to * - XLH, XLCH
14
45410-75
AXLE CAP, slider -left 75 to * - XLH, XLCH
15
45412-75
RING, damper tube 75 to * - XLH, XLCH
16
45703-73
FORK STEM AND BRACKET 75 to * - XLH, XLCH
16
45703-78
FORK STEM AND BRACKET 78 - XL, XLCH
17
45718-71
CAP, fork stem end 78 - XL, XLCH
18
45721-54
SLEEVE, fork stem N/A 75 to 78 - XLH, XLCH
19
45722-54
SLEEVE END, fork stem 75 to * - XLH, XLCH
21
45736-78B
UPPER BRACKET 75 to * - XLH, XLCH
23
45752-52
SPACER, bracket (as required) N/A 75 to 78 - XLH, XLCH
24
45772-77
NAMEPLATE, in.SPORTSTERin.. 77 to * - XL, XLCH
26
45782-72A
SCREW INSERT 75 to * - XLH, XLCH
27
45790-80
DRAIN SCREW, with washer 75 to * - XLH, XLCH
28
45908-80
RETAINING RING, oil seal 75 to * - XLH, XLCH
29
45982-73
O-RING, slider tube cap 75 to * - XLH, XLCH
30
45993-73
CAP, slider tube (without hole) 77 to * - XLH, XLCH
31
45994-73
AXLE CAP, slider - right N/A 75 to 78 - XLH, XLCH
32
45997-73
WASHER, slider tube cap 75 to * - XLH, XLCH
33
46018-77
BUSHING, brake caliper - upper 78 - XL, XLCH
33A
46019-77
BUSHING, brake caliper - lower 78 - XL, XLCH
34
46023-75
FRONT FORK ASSEMBLY (SHOWA) N/A 75 to 78 - XLH, XLCH
35
46024-75
SLIDER, left - complete N/A 75 to 78 - XLH, XLCH
35
46025-75
SLIDER, right - complete N/A 75 to 78 - XLH, XLCH
35
46026-77
SLIDER, right - complete N/A 78 - XL, XLCH
35
46027-77
SLIDER, left - complete 78 - XL, XLCH
39
46028-78A
SET OF FORK LEGS, complete N/A 78 - XL, XLCH
40
48347-52
CONE, lower bearing 75 to * - XLH, XLCH
41
46750-69
CAP, fork stem end N/A 75 to 77 - XL, XLCH
42
46753-69
PAD, fork stem end (rubber) N/A 75 to 78 - XLH, XLCH
43
59175-72
NAMEPLATE, in.SPORTSTER XLCHin.. N/A 75 & 76 - XLCH
44
59254-91
(HDI Only) REFLECTOR (amber)
