SPEEDOMETER AND TACHOMETER - XL, XLCH - 1979 TO 1983; XLS - для мотоциклов Harley Davidson XLS-1000 4EJ0 Sportster 1000 (1980) (1980)

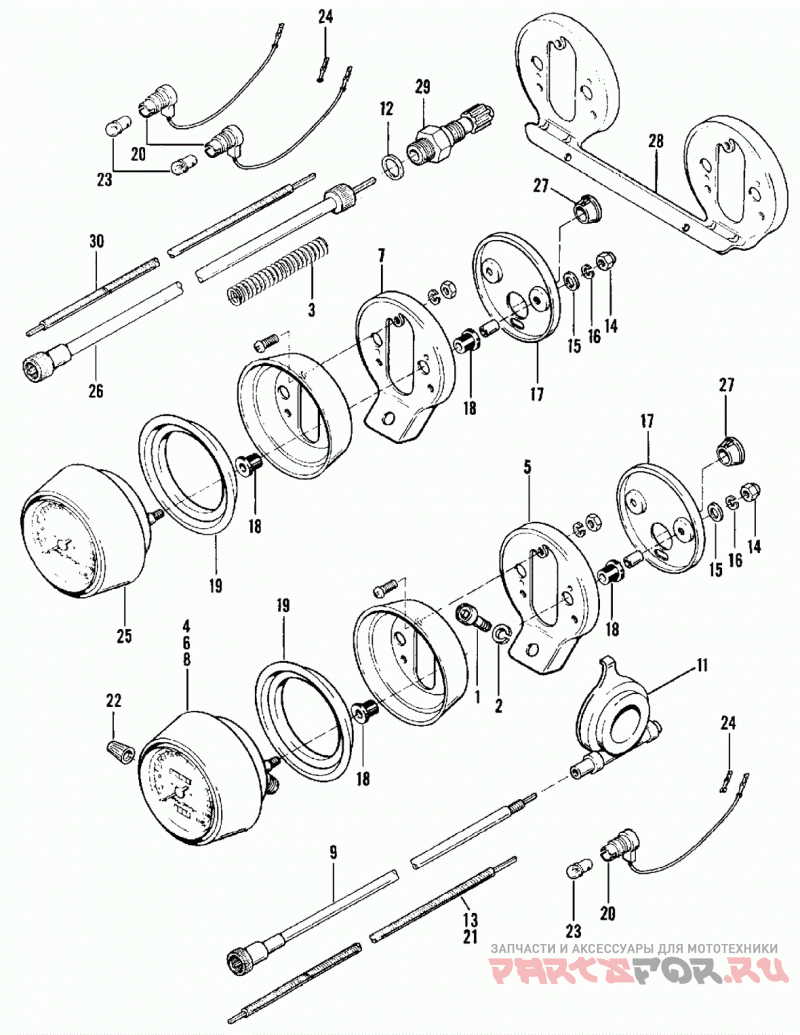

SPEEDOMETER AND TACHOMETER - XL, XLCH - 1979 TO 1983; XLS -

Harley Davidson XLS-1000 4EJ0 Sportster 1000 (1980)

SPEEDOMETER AND TACHOMETER - XL, XLCH - 1979 TO 1983; XLS -

oem код

название

цена

3991

BOLT, 5/16-18 X 7/8 hex. hd.(Grade 5 steel)

7042

LOCKWASHER, 5/16 (high collar)

34500-78

SPRING, tachometer cable

67007-79A

SPEEDOMETER, mile - with mounting bracket

67008-79A

SPEEDOMETER, kilometer-w/mounting bracket

67012-80

BRACKET, speedometer mounting

67022-80

BRACKET, tachometer mounting

67060-79B

CABLE ASSEMBLY, speedometer drive

67127-73

DRIVE UNIT, speedometer

67142-52

WASHER, tachometer drive unit

67309-80

CORE, speedometer cable (79 to Early 81- XLS)

ACORN NUT

Шайба

Стопорная шайба

LOWER COVER

GROMMET (black)

GASKET (foam rubber)

SOCKET, with wire

RESET KNOB, with screw - speedometer

71090-64

BULB

72038-71A

TERMINAL, socket

92053-79A

TACHOMETER, with mounting bracket

92065-74

CABLE ASSEMBLY, tachometer (w/spring)

92097-71

DRIVE UNIT, tachometer

92065-74

CABLE ASSEMBLY, tachometer
