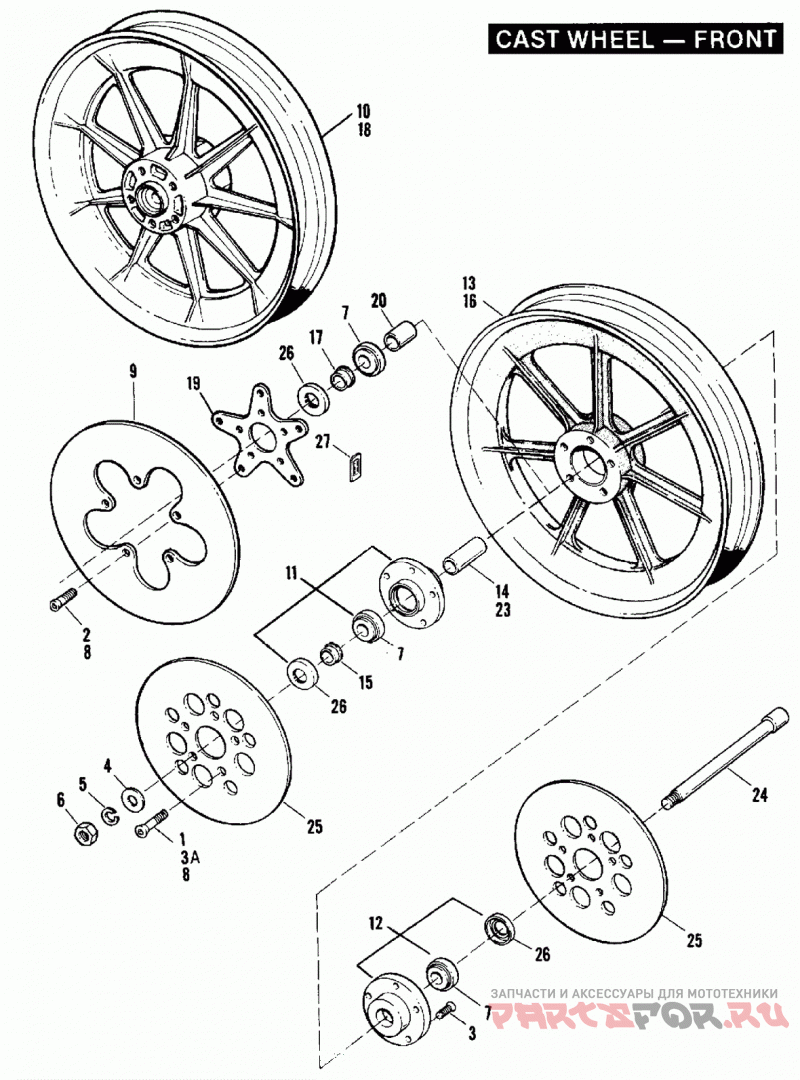

CAST WHEEL - FRONT

Harley Davidson XLH 3AJ0 Sportster Standard (1980)

Harley Davidson
#oem кодцена
1
3680
SCREW, 5/16-18 x 7/8 ctsk. socket flat hd. (chrome) (use with 9 spoke wheel) 78 - XL, XLCH
2
3670
Винт
3
3894
SCREW, FLAT HEAD, 5/16-18 X 1 1/4
3A
3793A
SCREW 1/4-20 X 5/8 TORX HD. (GRADE 8)
4
6653A
WASHER, 5/8 X 1-5/16 X 3/32
5
7022
LOCKWASHER, 5/8 74 to * - XL, XLCH
6
7813A
NUT, 5/8-18 X 9/16 X 15/16 (Grade 2)
7
9052
ROLLER BEARING 74 to * - XL, XLCH
8
41191-74A
SCREW 1/2-20 X 5/8 HEX SOCKET FLAT HD., W/LOCKPATCH
9
41807-74
DISC, brake 74 to 77 - XL, XLCH
10
43320-80
CAST WHEEL w/brgs. spacers & seals - 19in. (black)(9 spoke) N/A 78 - XL, XLCH
12
43445-79
HOUSING, bearing - right N/A 74 to 78 - XL, XLCH
13
43461-78
CAST WHEEL, w/brgs., spacers & seals (7 spoke) N/A 78 - XL, XLCH
14
43469-77
SPACER, between bearings N/A 78 - XL, XLCH
15
43488-77
SPACER, left bearing 74 to * - XL, XLCH
17
43548-74
SPACER, left bearing 74 to 77 - XLH, XLCH
18
43499-84
WHEEL ASSEMBLY 19 inches cast, 9 spoke (black)
20
43633-74
SPACER, between bearings - 2.162 (red & white) 74 to 77 - XLH, XLCH
20
43634-74
SPACER, between bearings - 2.177 (green & orange) N/A 74 & 77 - XLH, XLCH
20
43635-74
SPACER, between bearings - 2.148 (gold & violet) 74 to 77 - XLH, XLCH
23
43745-73
SPACER, between bearings N/A 74 to 77 - XL, XLCH
24
43883-77
FRONT AXLE 78 - XL, XLCH
25
44137-92
FRONT BRAKE DISC
26
47519-72
OIL SEAL 74 to * - XL, XLCH
27
95594-84B
WEIGHT 5 grams (black)
27
95595-84B
WHEEL WEIGHT 5 grams (plain)
