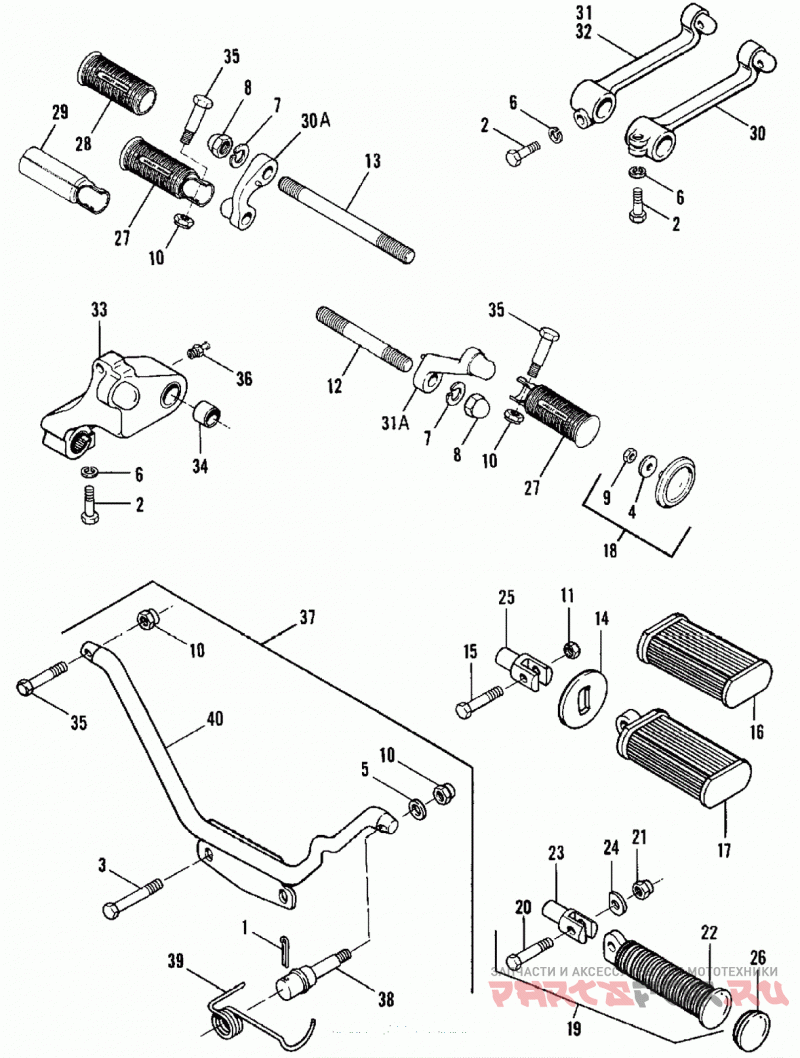

Подножки

Harley Davidson XLH 3AJ0 Sportster Standard (1980)

Harley Davidson
#oem кодцена
1
534
COTTER PIN, 3/32 x 1 54 to 67 - KH, XL, XLH, XLCH
2
3826
BOLT, 1/4-28 x 1-1/4 hex. hd. 61 to * - XLH, XLCH
3
4412
BOLT, 3/8-24 x 2-1/2 hex. hd. 54 to * - KH, XL, XLH, XLCH
4
6257W
WASHER, footrest end cover, 1/4 x 1-3/8 x 1/16 54 to * - KH, XL, XLH, XLCH
5
6702
WASHER, 5/16 X 11/16 X 1/16
6
7036
LOCKWASHER, 1/4
7
7068
LOCKWASHER,1/2
8
7627
ACORN NUT, 1/2-13 X 3/4 hex (chrome)
9
7688
NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel)
10
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex.
12
24751-75
STUD, right footrest 77 to * - XL, XLCH
13
24752-75
STUD, left footrest 77 to * - XL, XLCH
18
50880-69
FOOTREST COVER KIT (chrome) 54 to 78 - KH, XL, XLH, XLCH
19
50907-69A
REAR FOOTREST KIT N/A Late 72 to * - XLH, XLCH | Consists of:20, 21, 22, 23, 24
20
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
21
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
22
33048-72
FOOTREST (includes 33189-63 cover) Late 72 to * - XLH, XLCH
23
50900-72
SUPPORT Late 72 to * - XLH, XLCH
24
50912-72
SPRING WASHER Late 72 to * - XLH, XLCH
26
50936-77
END COVERS, footrest (chrome) Late 77 to * - XL, XLCH
27
50939-52
FOOTREST (with cover) 54 to * - KH, XL, XLH, XLCH
28
50940-52
COVER, footrest 54 to * - KH, XL, XLH, XLCH
29
50939-52
FOOTREST ASSEMBLY (steel)
30
50948-71
SUPPORT, left footrest 71 to 76 - XLH, XLCH
30A
50948-75
SUPPORT, left footrest 77 to * - XL XLCH
31A
50949-75
SUPPORT, right footrest 77 to * - XL, XLCH
32
50956-52A
SUPPORT, right footrest N/A 54 to 66 - KH, XL, XLH, XLCH 67 to 69 - XLCH
33
50957-75
SUPPORT, right footrest N/A 75 & 76 - XLH, XLCH
34
50967-75
BUSHING, right footrest support N/A 75 & 76 - XLH, XLCH
35
50970-52
BOLT, footrest support 54 to * - KH, XL, XLH, XLCH
36
83459-09
FITTING lubrication
38
52680-52
STUD, right footrest bracket 54 to 67 - KH, XL, XLH 54 to 69 - XLCH
39
52697-59
SPRING, right footrest bracket 59 to 67 - KH, XL, XLH 54 to 69 - XLCH
40
52702-59A
FOOTREST SUPPORT N/A 54 to * - KH, XL, XLH, XLCH
