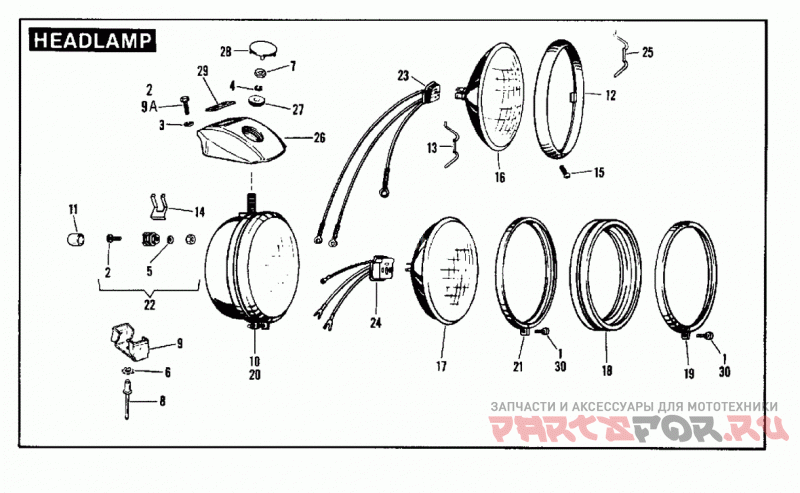

Фара

Harley Davidson XLH 3AJ0 Sportster Standard (1980)

Harley Davidson
#oem кодцена
2
2871W
BOLT, 5/16-18 X 1-1/4 hex. hd. (Grade 5 steel)
2
3960W
BOLT, 5/16-24 X 1 hex. hd.(Grade 5 steel)
2
3974HW
BOLT, 5/16-24 X 3/4 hex. hd.(Grade 5 steel)
3
7041
LOCKWASHER, 5/16
4
7068
LOCKWASHER,1/2
5
7115
LOCKWASHER, No. 8 internal tooth 63 to * - XLCH; 67 to * - XLH
6
7220
LOCKWASHER, No. 10 external tooth
7
7845
HEX NUT, 1/2-20 X 3/4
7
7880
NUT, 1/2-13 X 7/16 X 3/4 hex.(Grade 2 steel)
8
8519
RIVET, flasher clip Late 77 to * - XL, XLCH
9
9952
FLASHER CLIP Late 75 to * - XLH, XLCH
9A
43868-72
BOLT, headlamp bracket, 5/16-18 x 1-1/8 hex. hd. Late 77 to * - XL, XLCH
10
67705-74
HEADLAMP, complete (w/o wiring) 75 to * - XLH, XLCH
17
67692-92
SEALED BEAM
18
67719-63
MOUNTING RING, resilient 63 to * - XLCH; 67 to * - XLH
19
67725-63
MOLDING RING, outer 63 to * - XLCH; 67 to * - XLH
20
67743-75
HOUSING, headlamp 75 to * - XLH, XLCH
21
67744-75
MOLDING RING, inner Late 75 to * - XLH, XLCH
22
67745-63
TERMINAL PLATE KIT N/A 63 to 78 - XLCH
24
67753-63
CONNECTOR AND WIRING N/A 63 to 74 - XLCH; 67 to 74 - XLH
26
67808-73
BRACKET, headlamp N/A Late 73 to 74 - XLH, XLCH
26
67809-70
BRACKET, headlamp N/A 70 to Early 73 - XLH, XLCH
26
67809-75A
HEADLAMP BRACKET
27
67815-59A
WASHER, headlamp mount 59 to * - XL, XLH, XLCH
29
67835-70
TRIM, headlamp bracket N/A 70 to 74 - XLH, XLCH
29
67835-75
TRIM, headlamp bracket: 75 to * - XLH, XLCH
30
68672-38
SCREW, No. 8-32 x 3/4 fil. hd. Late 75 to * - XLH, XLCH
