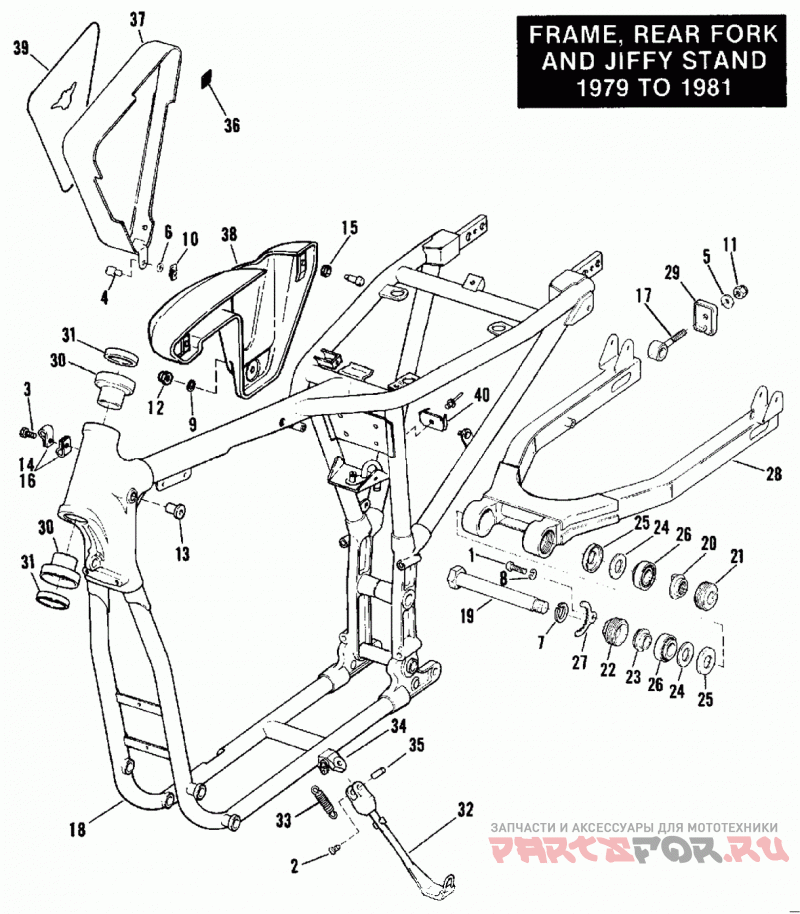

FRAME, REAR FORK AND JIFFY STAND - 1979 TO 1981

Harley Davidson XLCH1000 4AJ0 Sportster 1000 (1980)

Harley Davidson
#oem кодцена
1
1198
SCREW, No. 10-24 x 1/2 Pozidriv fil. hd.
2
1760B
SCREW, No. 10-24 x 3/8 ctsl<. flat hd.
3
2808
SCREW, No. 8-32 x 3/8 Pozidriv pan hd.
5
6324W
WASHER, 5/16 x 11/16 x 3/32
7
7022
LOCKWASHER, 5/8
8
7069
LOCKWASHER, No. 10
10
7605
SPEED NUT, side cover N/A
11
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex.
16
38712-68
CLAMP, tachometer & throttle cables (79 to Early 81 - XL, XLCH, XLS)
17
41570-77
ADJUSTER, rear axle
19
47511-52
PIVOT BOLT, rear fork
20
47512-74
NUT, pivot bolt
21
47514-74
LOCKNUT, left bearing
22
47515-74
LOCKNUT, right bearing
23
47517-74
SPACER, bearing - outer
24
47518-52
SPACER, bearing - inner
25
47519-52
SHIELD, bearing
26
47521-74
BEARING, rear fork
27
47525-52
LOCKPLATE, bearing locknut
28
47532-79A
REAR FORK, with bearings
29
47554-73A
END COVER REAR FORK
30
48310-78
BEARING CUP, steering head
31
48315-60
BEARING CUP
33
50011-30A
SPRING, jiffy stand
34
50048-56
BRACKET, jiffy stand (welded)
35
50090-77
PIN, jiffy stand leg
