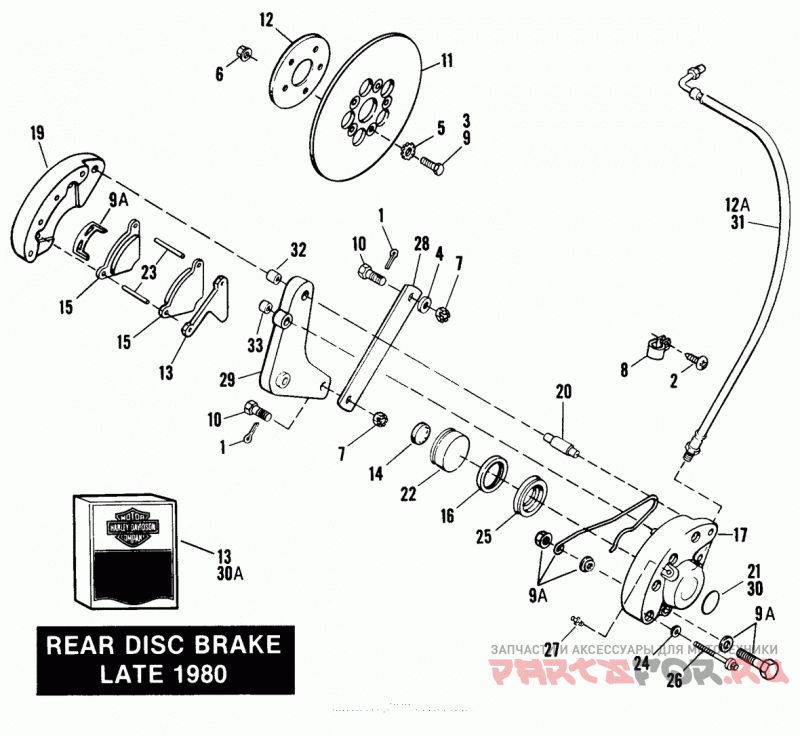

REAR DISC BRAKE - LATE 1980

Harley Davidson FXB-80 1HJ0 Super Glide B80 (1980)

Harley Davidson
#oem кодцена
1
520W
Деталь COTTER PIN, 1/8 x 1-1/4 Late 80 - All Models
2
2652
Деталь SCREW, No. 10-16 x 3/8 self tapping hex. hd. Late 80 - All Models
3
3680
Деталь SCREW, 5/16-18 x 7/8 ctsk. socket flat hd. Late 80 - All Models
4
6718
Деталь WASHER, 1/2 X 1-1/16 X 3/32
5
7145W
Деталь LOCKWASHER, 3/8 external tooth
6
7778
Деталь LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
7
7843
Деталь HEX NUT, 1/2-13 (slotted)
8
38712-68
Деталь CLIP, brake hose Late 80 - All Models
9
41198-73
Деталь BOLT, 3/8-16 x 1 thin hex. hd. Late 80 - All Models
9A
41670-73
Деталь ANTI-VIBRATION KIT - REAR BRAKE ONLY N/A Late 80 - All Models
10
41734-73
Деталь BOLT, 1/2-13 hex. hd. (drilled) Late 80 - All Models
11
41813-92
Деталь BRAKE DISC
12
41814-76A
Деталь PLATE, brake disc Late 80 - All Models
12A
42300-73A
Деталь REAR BRAKE HOSE Late 80 - FXWG
13
44002-78
Деталь SHIM, piston side (anti-rattle) Late 80 - All Models
14
44004-80
Деталь INSULATOR, 1-3/4 round x 5/16 thick Late 80 - All Models
15
44005-78A
Деталь BRAKE PAD SET
16
44007-80
Деталь SEAL, caliper piston Late 80 - All Models
17
44008-80
Деталь CALIPER AND PISTON ASSEMBLY, outer - REAR BRAKE ONLY Late 80 - All Models | Consists of items 16, 22, 25, 27
19
44106-80
Деталь BRAKE CALIPER, inner Late 80 - All Models
20
44107-72
Деталь MOUNTING PIN Late 80 - All Models
21
44108-72
Деталь LABEL, caliper Late 80 - FXE, FXEF, FXEF-80
22
44118-80
Деталь PISTON Late 80 - All Models
23
44124-72
Деталь PIN, brake pad Late 80 - All Models
24
44132-72
Деталь WASHER, caliper screw Late 80 - All Models
25
44133-72
Деталь DUST BOOT, caliper Late 80 - All Models
26
44134-72A
Деталь SCREW, 12 pt. flanged hd. Late 80 - All Models
27
44146-77
Деталь BLEEDER VALVE, caliper Late 80 - All Models
28
44154-73
Деталь ANCHOR ARM, caliper bracket Late 80 - All Models
29
44166-73
Деталь BRACKET, caliper mounting Late 80 - All Models
30
44197-77
Деталь LABEL, rear brake caliper Late 80 - FXS-80, FXWG, FXB
30A
44331-73
Деталь CALIPER MOUNTING STUD KIT Late 80 - All Models | Includes besides mounting stud, locknut & washer items 23, 32, 33
31
45151-78
Деталь REAR BRAKE HOSE Late 80 - All Models except FXWG
32
45821-75
Деталь BUSHING, caliper mounting bracket - long (steel) Late 80 - All Models
33
45822-75
Деталь BUSHING, caliper mounting bracket - short (steel) Late 80 - All Models
