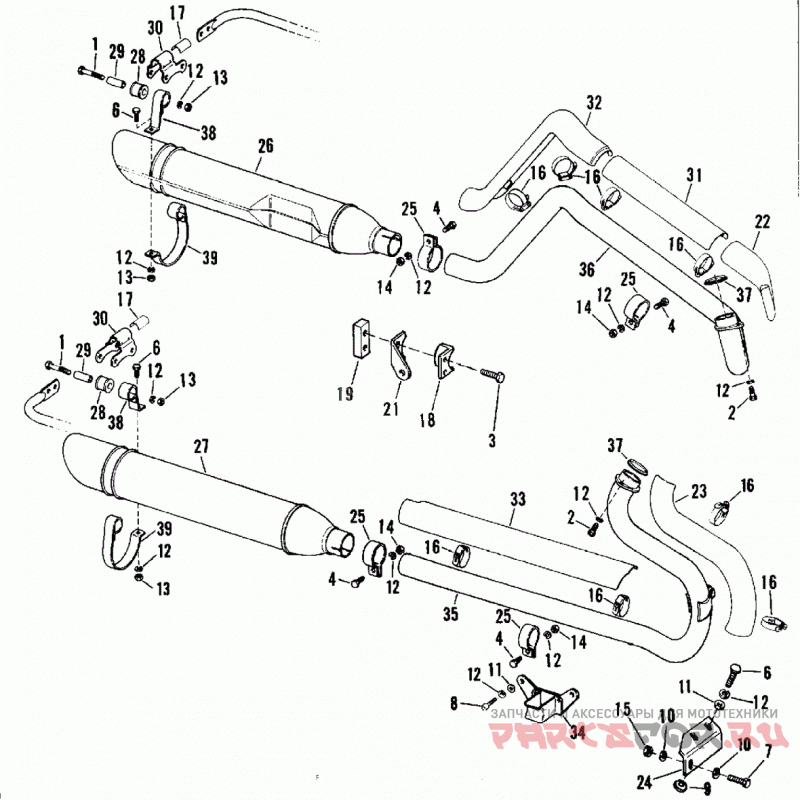

EXHAUST SYSTEM - 1980

Harley Davidson FLT 5GJ0 Touring Tour Glide (1980)

Harley Davidson
#oem кодцена
1
2667
Болт
2
3201WA
SCREW, 5/16-18 X 1-1/4 knurled soc. hd.
3
3789A
Болт
4
3960W
BOLT, 5/16-24 X 1 hex. hd.(Grade 5 steel)
6
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel)
6
4017
BOLT, 5/16-18 X 1 hex. hd.(Grade 5 steel)
7
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel)
8
4816A
SCREW, 5/16-18 X 1-1/2 socket hd.
9
5772
Проставка
10
6701
WASHER, 3/8 X 13/16 X 1/16
11
6702
WASHER, 5/16 X 11/16 X 1/16
12
7041
LOCKWASHER, 5/16
13
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel)
14
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
15
7780
LOCKNUT,flange 3/8-24 X 13/32 X 11/16 hex.
16
9955
CLAMP, exhaust pipe shield
17
27037-79
NYLON SLEEVE N/A
18
65196-80
BRACKET, left exhaust pipe
19
65197-80
NUT BLOCK
21
65199-80
BRACKET, crank case to clamp bracket
22
65287-80
SHIELD, left exhaust pipe - front N/A
23
65288-80
SHIELD, right exhaust pipe - front N/A
24
65444-80
BRACKET, right exhaust pipe
25
65519-52C
CLAMP pipe to bracket
26
65538-79C
MUFFLER, left
27
65539-79C
MUFFLER, right
28
65541-79
Резиновое Крепление
29
65542-79
Проставка
30
65543-79
Держатель
31
65549-79
SHIELD, left exhaust pipe - center
32
65550-79
SHIELD, left exhaust pipe - rear N/A
33
65551-79
SHIELD, right exhaust pipe - rear
34
65555-80A
BRACKET, right exhaust pipe to transmission
35
65589-79
EXHAUST PIPE, right N/A
36
65590-79
EXHAUST PIPE, left
37
65834-68A
GASKET, exhaust port
38
65837-79
STRAP, inside
39
65838-79
STRAP, outside
