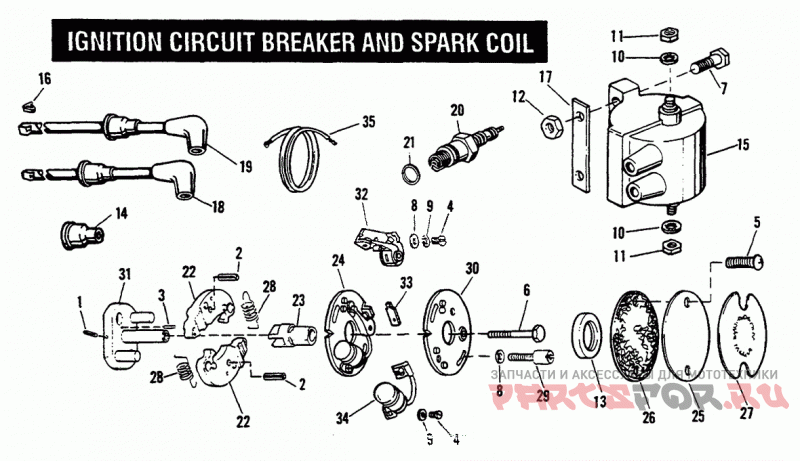

IGNITION CIRCUIT BREAKER AND SPARK COIL

Harley Davidson XLCR-1000 7FH8 Sportster 1000 (1978) (Cafe Racer)

Harley Davidson
#oem кодцена
1
615
ROLL PIN, breaker plate | 77 to * - XLCR
2
620
ROLL PIN, breaker weight | 77 to * - XLCR
3
623
ROLL PIN, breaker plate | 77 to * - XLCR
4
1047
SCREW, No. 8-36 x 1/4 til. hd. | 77 to * - XLCR
5
2622
SCREW, No. 8-32 x 7/16 Pozidriv hd. | 77 to * - XLCR
6
3570T
BOLT, No. 10-32 x 2 hex. hd. | 77 to * - XLCR
7
3826
BOLT, 1/4-28 x 1-1/4 hex. hd. | 77 to * - XLCR
8
6192
WASHER, No. 8 X 7/16 X 3/64 | 77 to * - XLCR
9
7015
LOCKWASHER, No. 8 | 77 to * - XLCR
10
7118
LOCKWASHER, No. 10 internal tooth | 77 to * - XLCR
11
7638
NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel) | 77 to * - XLCR
12
7682
LOCKNUT, 1/4-28 X 3/16 X 7/16 hex. | 77 to * - XLCR
13
11124
SEAL, breaker point compartment | 77 to * - XLCR
14
31607-64
RUBBER CAP, spark plug cable | 77 to * - XLCR
15
31609-65A
SPARK COIL | 77 to * - XLCR
16
31620-47
TERMINAL, spark plug cable | 77 to * - XLCR
17
31727-72
PLATE, spark coil mounting | 77 to * - XLCR
18
31983-71C
SPARK PLUG CABLE REAR CYLINDER | 77 to * - XLCR
19
31986-65D
SPARK PLUG CABLE | 77 to * - XLCR
20
32301-47A
SPARK PLUG, No. 4 | 77 to * - XLCR
32303-47A
SPARK PLUG, No. 3 | 77 to * - XLCR
32305-48A
SPARK PLUG, No. 2 | 77 to * - XLCR
21
32342-58
GASKET, spark plug | 77 to * - XLCR
22
32522-70T
TIMER WEIGHT & PIN | 77 to * - XLCR
23
32542-70TA
TIMER CAM | 77 to * - XLCR
24
32577-70
CIRCUIT BREAKER PLATE ASSEMBLY | 77 to * - XLCR
25
32588-70A
COVER | 77 to * - XLCR
26
32591-80
GASKET, ignition cover | 77 to * - XLCR
28
32605-70
SPRING, breaker weight | 77 to * - XLCR
29
32601-78
STUD, ignition timer cover Late 72 to * - XLH, XLCH | 77 to * - XLCR
30
32618-70A
PLATE, circuit breaker | 77 to * - XLCR
31
32629-70T
TIMER PLATE ASSY | 77 to * - XLCR
32
32661-70
BREAKER POINT SET | 77 to * - XLCR
33
32670-70
ADAPTER, terminal - circuit breaker | 77 to * - XLCR
34
32726-30A
CONDENSER AND BRACKET | 77 to * - XLCR
35
70456-73
WIRE, circuit breaker to coil | 77 to * - XLCR
32350-77
TUNE-UP KIT - contains: | 77 to * - XLCR
