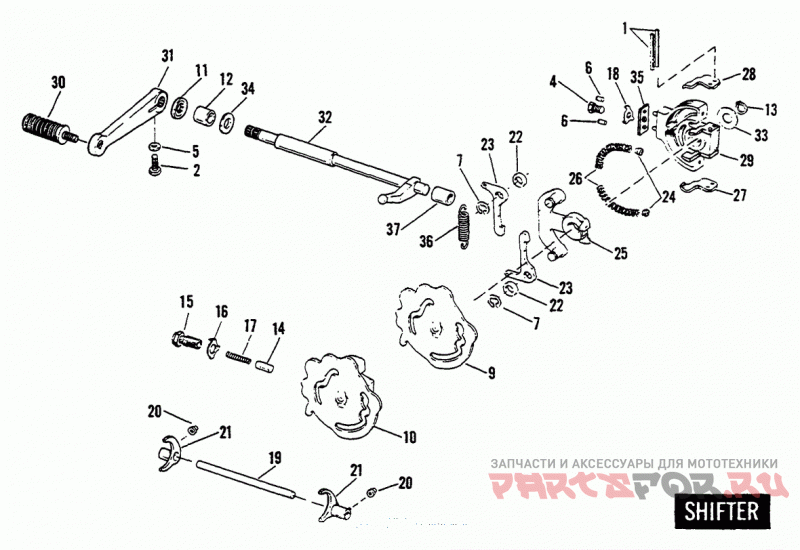

Переключение скоростей

Harley Davidson XLCR-1000 7FH8 Sportster 1000 (1978) (Cafe Racer)

Harley Davidson
#oem кодцена
2
2551W
BOLT, 1/4-20 X 1 hex. hd. (Grade 5 steel) | 77 to * - XLCR
4
4621
BOLT, 7/16-24 x 1-1/8 hex. hd | 77 to * - XLCR
5
6703
WASHER, 1/4 X 5/8 X 1 /16 | 77 to * - XLCR
6
9260
PIN, cam support | 77 to * - XLCR
7
11036
RETAINING RING, shifter pawls | 77 to * - XLCR
9
34002-77
SHIFTER CAM, only | 77 to * - XLCR
10
34005-77
SHIFTER CAM ASSEMBLY | 77 to * - XLCR
11
34035-52
SEAL, shifter shaft (in chain cover) | 77 to * - XLCR
12
34037-52
BUSHING, shifter shaft (in chain cover) | 77 to * - XLCR
13
34040-52
RETAINING RING, shifter cam | 77 to * - XLCR
14
34062-52
SHIFTER CAM FOLLOWER | 77 to * - XLCR
15
34065-52
RETAINER, cam follower | 77 to * - XLCR
16
34067-52
LOCK, shifter cam retainer | 77 to * - XLCR
18
34069-71
LOCK, shifter cam bolt | 77 to * - XLCR
19
34141-52A
SHAFT, shifter fork | 77 to * - XLCR
20
34168-52
ROLLER, shifter finger | 77 to * - XLCR
21
34291-52C
SHIFTER FORK | 77 to * - XLCR
34292-72A
SHIFTER FORK, + 0.020 | 77 to * - XLCR
34293-72A
SHIFTER FORK, - 0.020 | 77 to * - XLCR
22
34461-72
SPACER, shifter pawl | 77 to * - XLCR
23
34476-72
SHIFTER PAWL | 77 to * - XLCR
24
34485-52
PLUG, carrier spring retainer | 77 to * - XLCR
26
34500-52A
PAWL CARRIER SPRING | 77 to * - XLCR
27
34506-52A
PAWL LIFTER ARM, lower | 77 to * - XLCR
28
34507-52A
PAWL LIFTER ARM, upper | 77 to * - XLCR
30
34611-65A
PEG shift lever | 77 to * - XLCR
31
34616-77
LEVER, shift | 77 to * - XLCR
32
34628-75
SHAFT, shifter lever | 77 to * - XLCR
33
35336-74
THRUST WASHER, shifter cam | 77 to * - XLCR
34
35404-74
THRUST WASHER, shifter lever shaft | 77 to * - XLCR
35
35891-66
SHIM, pawl carrier support | 77 to * - XLCR
36
37222-52
SPRING, shifter pawls | 77 to * - XLCR
37
40520-63
BUSHING, shifter shaft (in right crankcase) | 77 to * - XLCR
34500-78
PAWL CARRIER SPRING | 78 to * - XLCR
