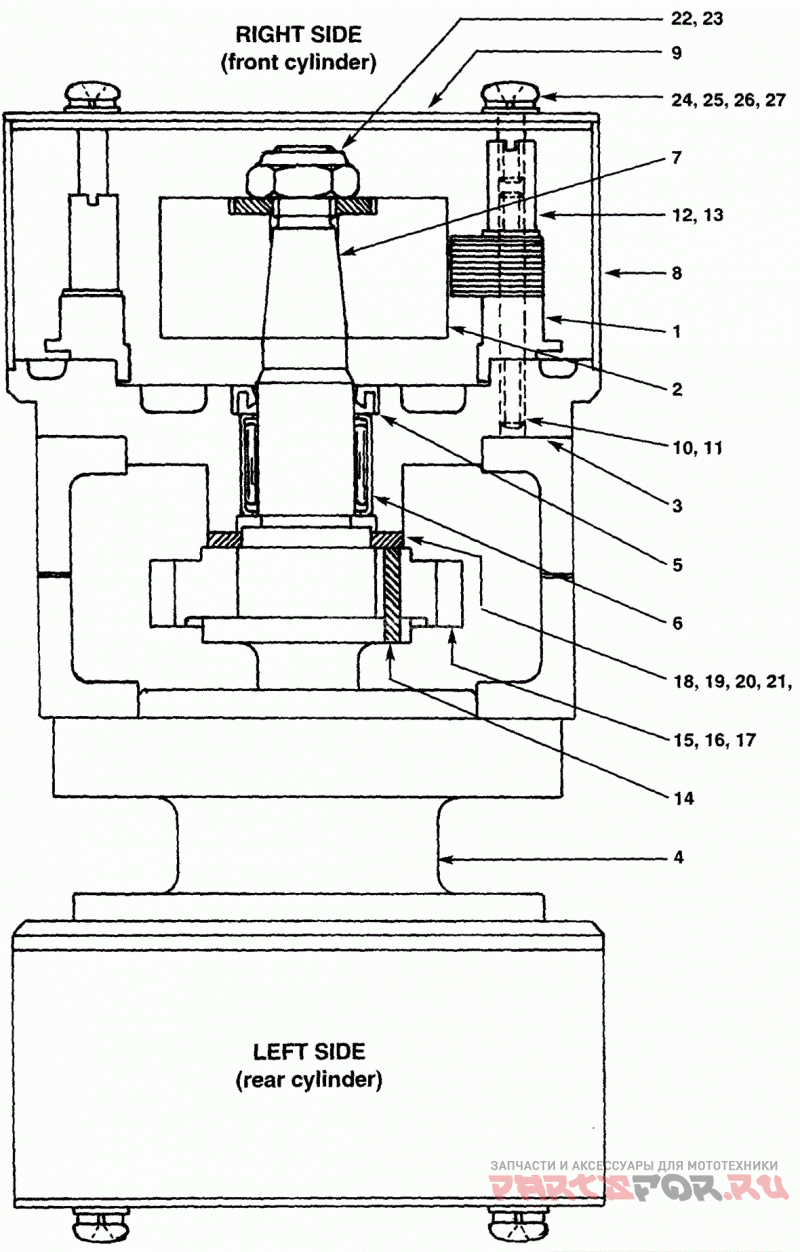

PVL IGNITION ASSEMBLY

Harley Davidson XR-750 1CH7 Sportster XR 750 (1977) (750 Racer)

Harley Davidson
#oem кодцена
1
29992-96RA
STATOR, XR750 | 96 to *
2
29994-96R
ROTOR | 96 to *
29996-96R
IGNITION COIL | 96 to *
29949-98R
MODULE | 98 to *
31978-88R
CAP, spark plug, | 89 to *
31979-88R
TERMINAL, spark plug cap | 89 to *
3
32486-96R
IGNITION HOUSING - right | 96 to *
4
32487-96R
IGNITION HOUSING - left | 96 to *
5
12043
SEAL | 89 to *
6
29616-96R
NEEDLE BEARING | 89 to *
7
32455-95R
SHAFT | 96 to *
8
32457-88R
SHIELD | 89 to *
9
32488-96R
END COVER | 96 to *
10
32501-96R
STUD, stator - long | 96 to *
11
32512-96R
STUD, stator - short | 96 to *
12
32503-96R
NUT, stator stud | 96 to *
13
6182W
WASHER, stator stud nut | 96 to *
744R
CAP, plastic-left ignition housing | 89 to *
14
25507-88R
PIN, gear drive | 89 to *
32461-88R
RUBBER GROMMET | 89 to *
9900
PUSH-ON TERMINAL, 3/16 | 98 to *
9907
PUSH-ON TERMINAL, 1/4 | 98 to *
31959-97R
TERMINAL, spark plug wire to ignition coil | 96 to *
72266-94
SHRINK TUBE, use with push-on terminals | 96 to *
15
25570-88R
GEAR, ignition shaft-green | 89 to *
16
29701-88R
GEAR, ignition shaft-white | 89 to *
17
29702-88R
GEAR, ignition shaft-red | 89 to *
18
35357-82
SHIM, rotor shaft-.098 | 89 to *
21
35360-82
SHIM, rotor shaft-.125 | 89 to *
22
7824
LOCKNUT, 1/2-20 X 1/4 hex. (Grade 2 steel) | 89 to *
23
6718
WASHER, 1/2 X 1-1/16 X 3/32 | 96 to *
852A
SCREW, left housing to crankcase | 89 to *
1795A
SCREW, 1/4-20 X 3 hex socket head | 89 to *
3789A
SCREW, right housing to cover | 89 to *
6218W
WASHER, ignition housing screws | 96 to *
24
2956
SCREW, end cover-long | 96 to *
25
2665
SCREW, No. 10-16 X 5/8 pan hd. (Grade 2 steel) | 96 to *
26
6182W
WASHER, end cover screws | 89 to *
27
7069
LOCKWASHER, No. 10 | 89 to *
