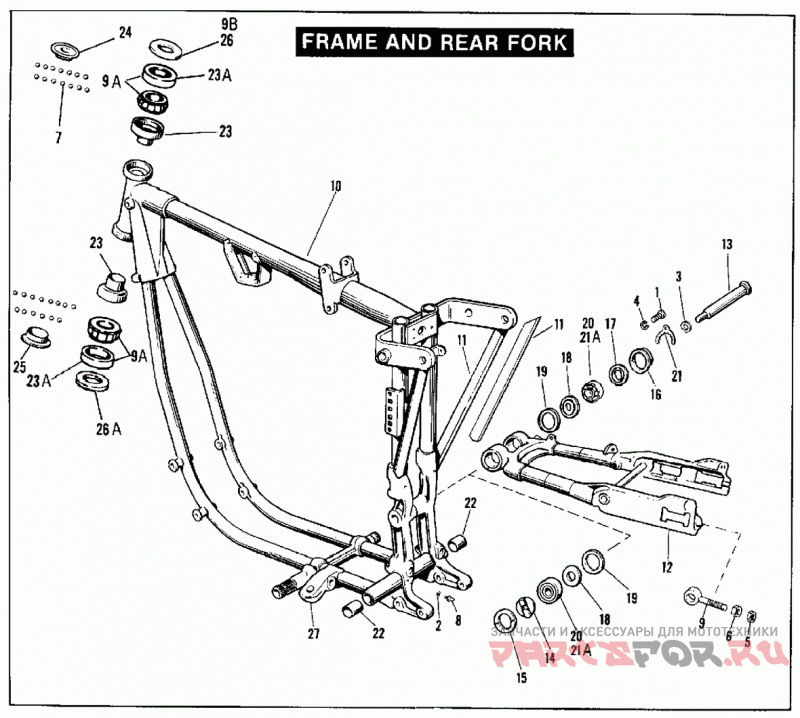

FRAME AND REAR FORK

Harley Davidson XLT-1000 2GH7 Sportster 1000 (1977)

Harley Davidson
#oem кодцена
1
1198
SCREW, No. 10-24 x 1/2 Pozidriv fil. hd. Late 72 to * - XLH, XLCH
2
6156
WASHER, No. 10 x 3/8 (brass) 61 to 76 - XLH, XLCH
3
7022
LOCKWASHER, 5/8 54 to * - KH, XL, XLH, XLCH
4
7069
LOCKWASHER, No. 10
5
7744
JAM NUT, 5/16-24 X 3/16 X 1/2 hex. (Grade 2 steel)
6
7753
NUT, 5/16-24 X 1/4 X 1/2 hex.(Grade 2 steel)
7
8860
BALL, 5/16 dia. (28) 54 to 77 - KH, XL, XLH, XLCH
8
25715-47
GREASE FITTING, brake cross-shaft 54 to 76 - KH, XL, XLH, XLCH
9
39985-52
ADJUSTER, rear axle 54 to * - KH, XL, XLH, XLCH
9A
45586-78
BEARING, steering head - complete 78 - XL, XLCH
9B
45597-78
DUST SHIELD, steering head bearing - upper 78 - XL, XLCH
10
47012-78
FRAME, with steering head cups 77 to * - XL, XLCH
10
47014-73
FRAME, complete 73 to 76 - XLH, XLCH
11
47087-74
BRACE, frame (welded) 73 to * - XLH, XLCH
12
47504-76
REAR FORK N/A 77 & 78 - XL, XLCH
13
47511-52
PIVOT BOLT, rear fork 54 to * - KH, XL, XLH, XLCH
14
47512-74
NUT, pivot bolt Late 74 to * - XLH, XLCH
15
47514-52
LOCKNUT, bearing, left N/A 54 to Early 74 - KH, XL, XLH, XLCH
15
47514-74
LOCKNUT, bearing - left Late 74 to * - XLH, XLCH
16
47515-52
LOCKNUT, bearing, right N/A 54 to Early 74 - KH, XL, XLH, XLCH
16
47515-74
LOCKNUT, bearing - right Late 74 to * - XLH, XLCH
17
47517-52
BEARING SPACER, outer N/A 54 to Early 74 - KH, XL, XLH, XLCH
17
47517-74
SPACER, bearing - outer Late 74 to * - XLH, XLCH
18
47518-52
BEARING SPACER, inner 54 to * - KH, XL, XLH, XLCH
19
47519-52
SHIELD, bearing 54 to * - KH, XL, XLH, XLCH
20
47521-74
BEARING, rear fork Late 74 to * - XLH, XLCH
21
47525-52
LOCKWASHER, bearing locknut 54 to * - KH, XL, XLH, XLCH
21A
47550-74
BEARING KIT, rear fork 54 to Early 74 - KH, XL, XLH, XLCH
22
47757-52
BUSHING, brake or shifter shaft tube 54 to 76 - KH, XL, XLH, XLCH
23
48310-30
BEARING CUP, steering head 54 to 77 - KH, XL, XLH, XLCH
23
48310-78
BEARING CUP, steering head 78 - XL, XLCH
23A
48315-60
HEADCUP 78 - XL, XLCH
24
48346-39
CONE, upper bearing 54 to 77 - KH, XL, XLH, XLCH
25
48347-52
CONE, lower bearing 54 to 77 - KH, XL, XLH, XLCH
26
48370-52
DUST SHIELD, steering head bearing N/A 54 to 77 - KH, XL, XLH, XLCH
26A
48370-78
DUST SHIELD, steering head bearing - lower 78 - XL, XLCH
27
50048-56
BRACKET, jiffy stand 54 to * - KH, XL, XLH, XLCH
